From schools and community buildings to museums, factories and warehouses: see the existing equipment, what we changed and the work behind each installation.
An inefficient older warm-air heater was replaced with a Powrmatic LX140F at Unit 16. Oxyplumb specified and delivered the replacement, removing the old heater and flue and installing a new Uni-Strut support frame.
The work included gas and electrical alterations, a new heater and flue through a new opening, a programmer and room thermostat. The redundant fresh-air intake was closed with weatherproof cement board.
Delivery and handover
The warehouse remained operational apart from two bays while the installation was carried out. Leigh reported that the client was delighted with the completed work.
Project photographs
Before

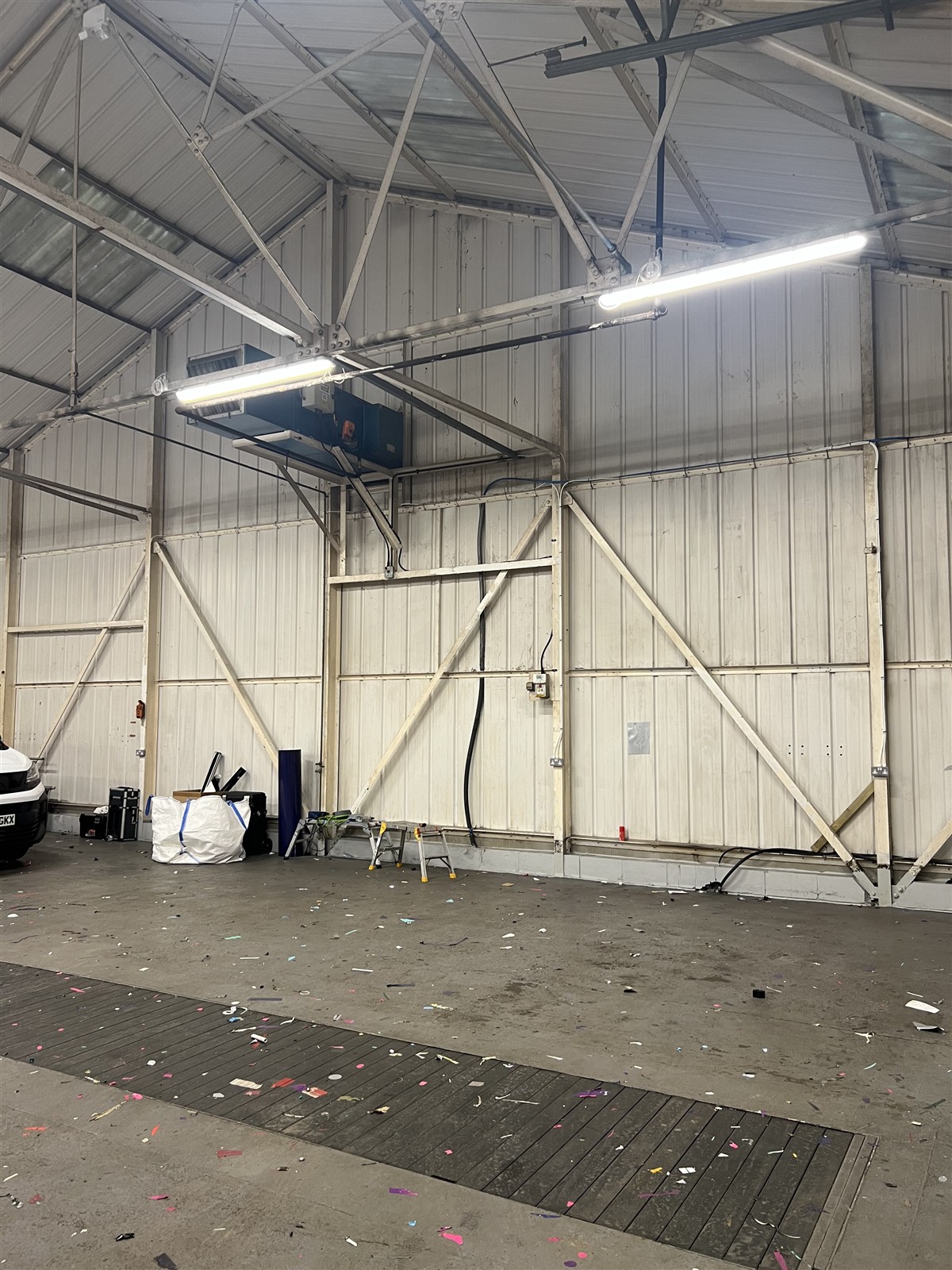

Vacant high-level heater mounting frame and services at MediaFleet warehouse in Witney
In progress

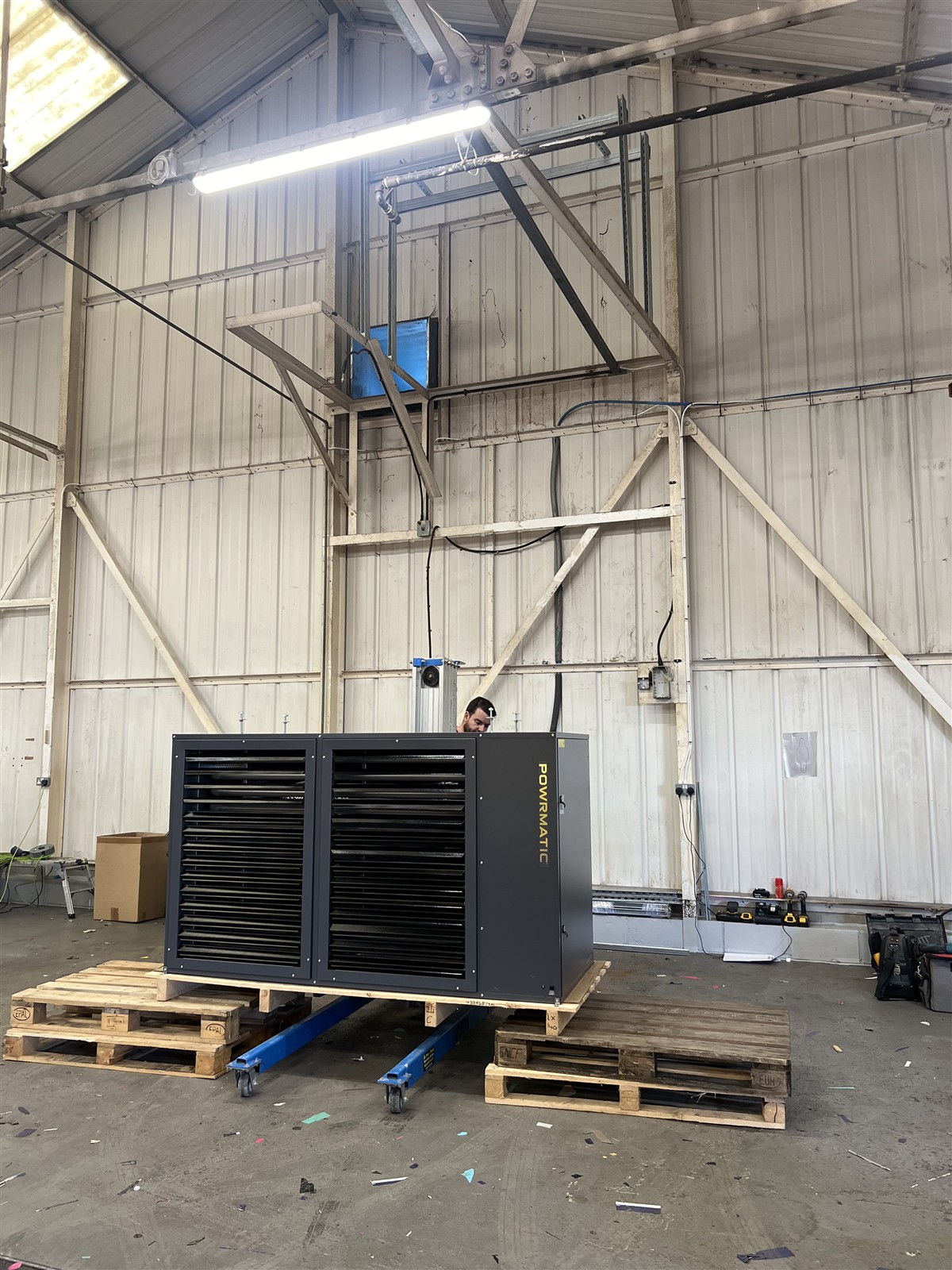

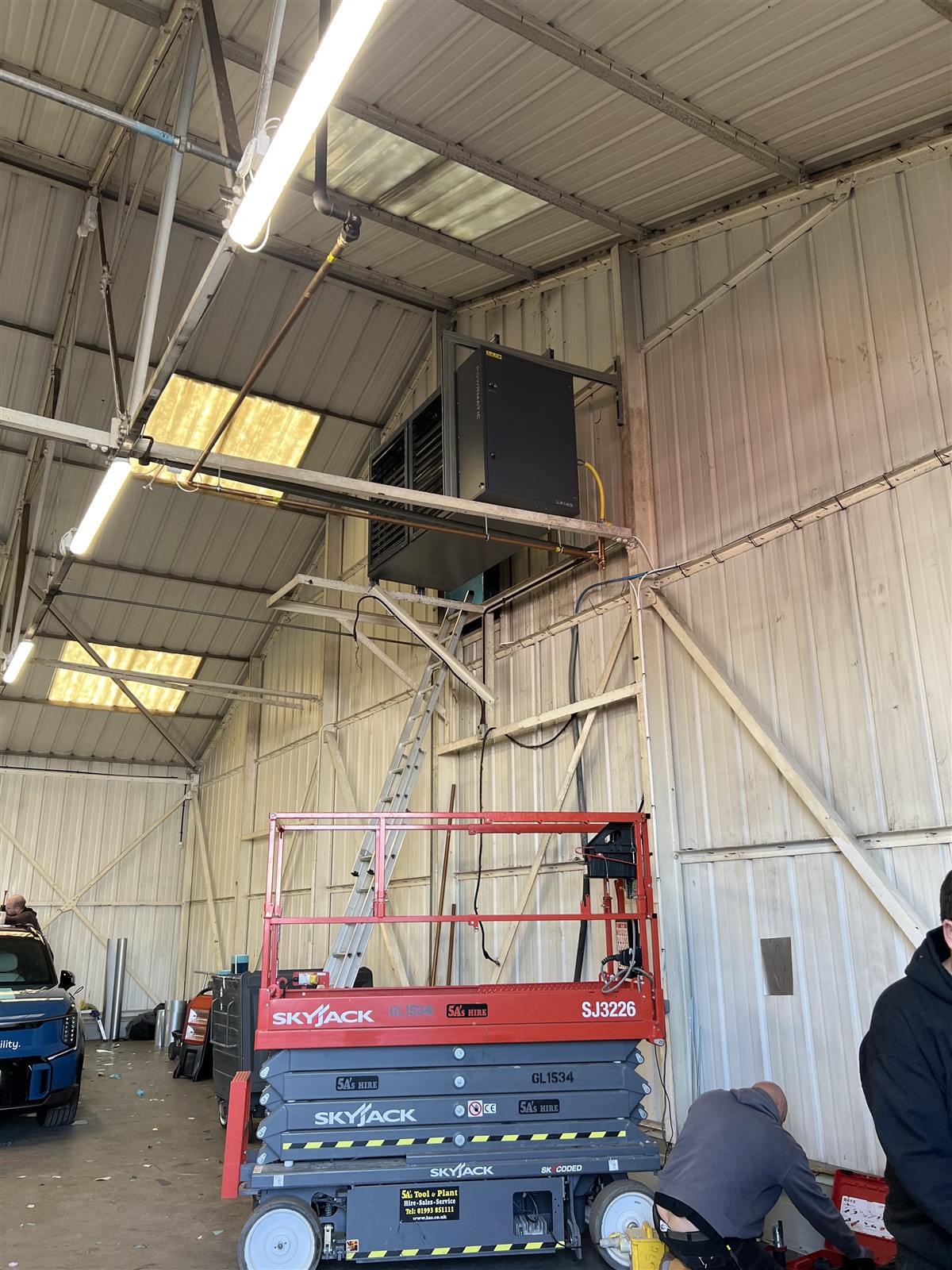

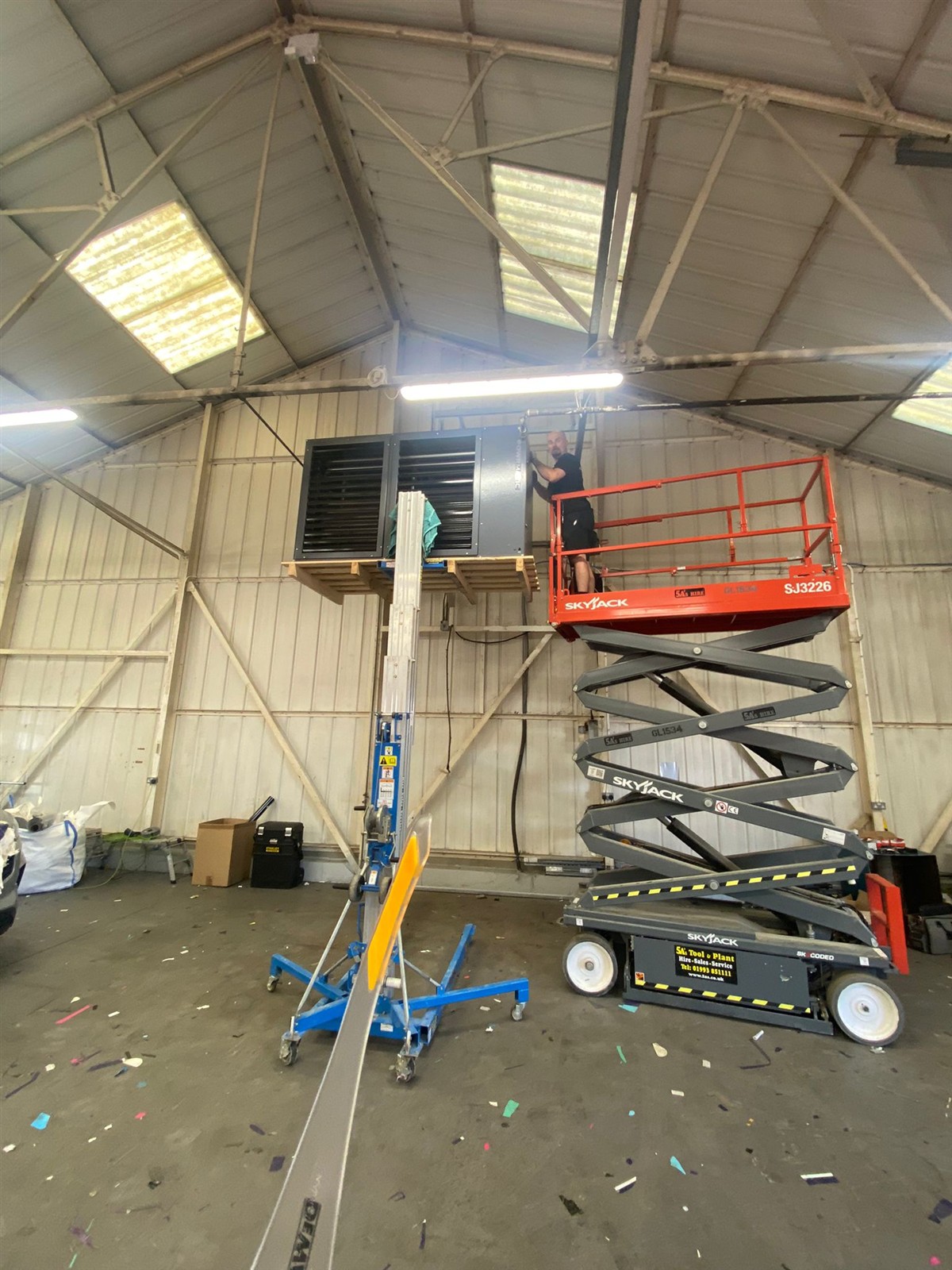

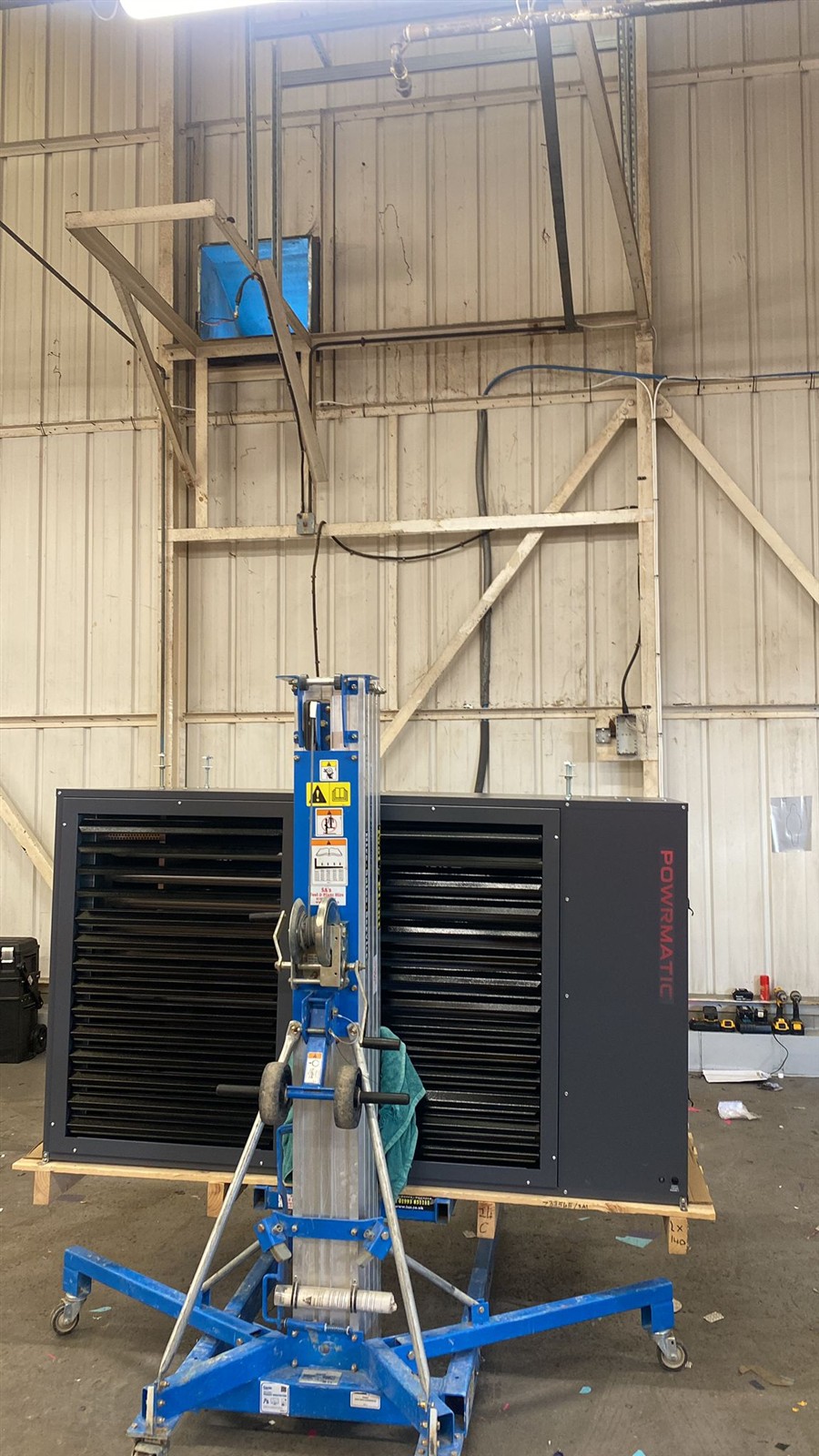

Replacement Powrmatic heater on pallets beneath the warehouse mounting frameMaterial lift positioned in front of the Powrmatic heater before liftingPowrmatic heater being positioned at high level using lifting equipment and a scissor liftHigh-level heater installation with scissor lift below at MediaFleet
Completed views

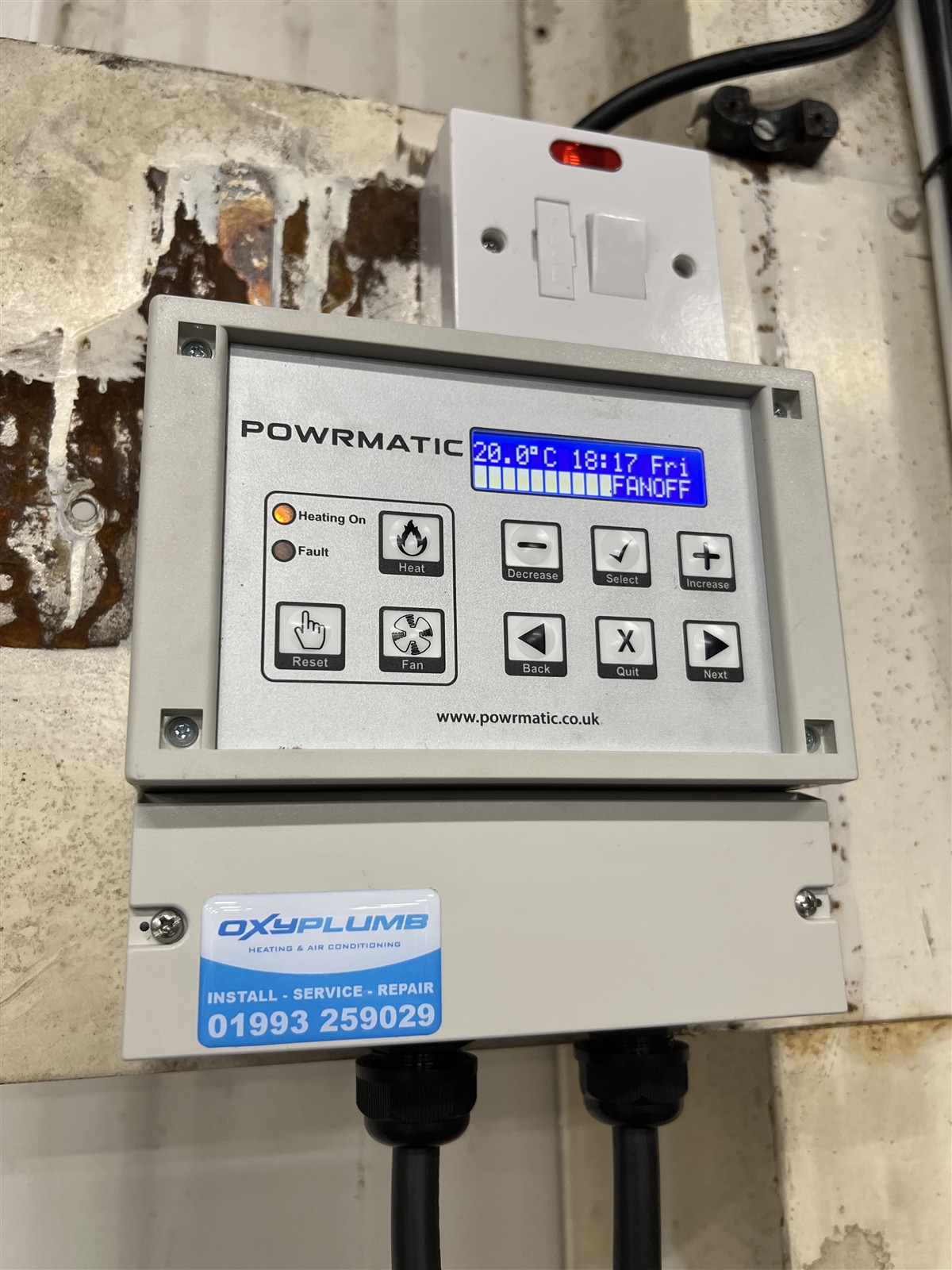

Installed Powrmatic warm-air heater mounted high on the MediaFleet warehouse wallPowrmatic heating controller with Oxyplumb contact label at MediaFleet
Working with principal contractor Stoic Roofing, Oxyplumb replaced the existing low-carbon steel gas main while classroom roofs were raised by approximately 100mm to improve insulation.
The old gas main was replaced with a new 108mm stainless steel main, installed on rubber feet to protect the felt roof.
Delivery and handover
The summer-holiday programme was coordinated with Stoic Roofing, with no school downtime and heating and hot water ready before pupils returned.
Project photographs
In progress

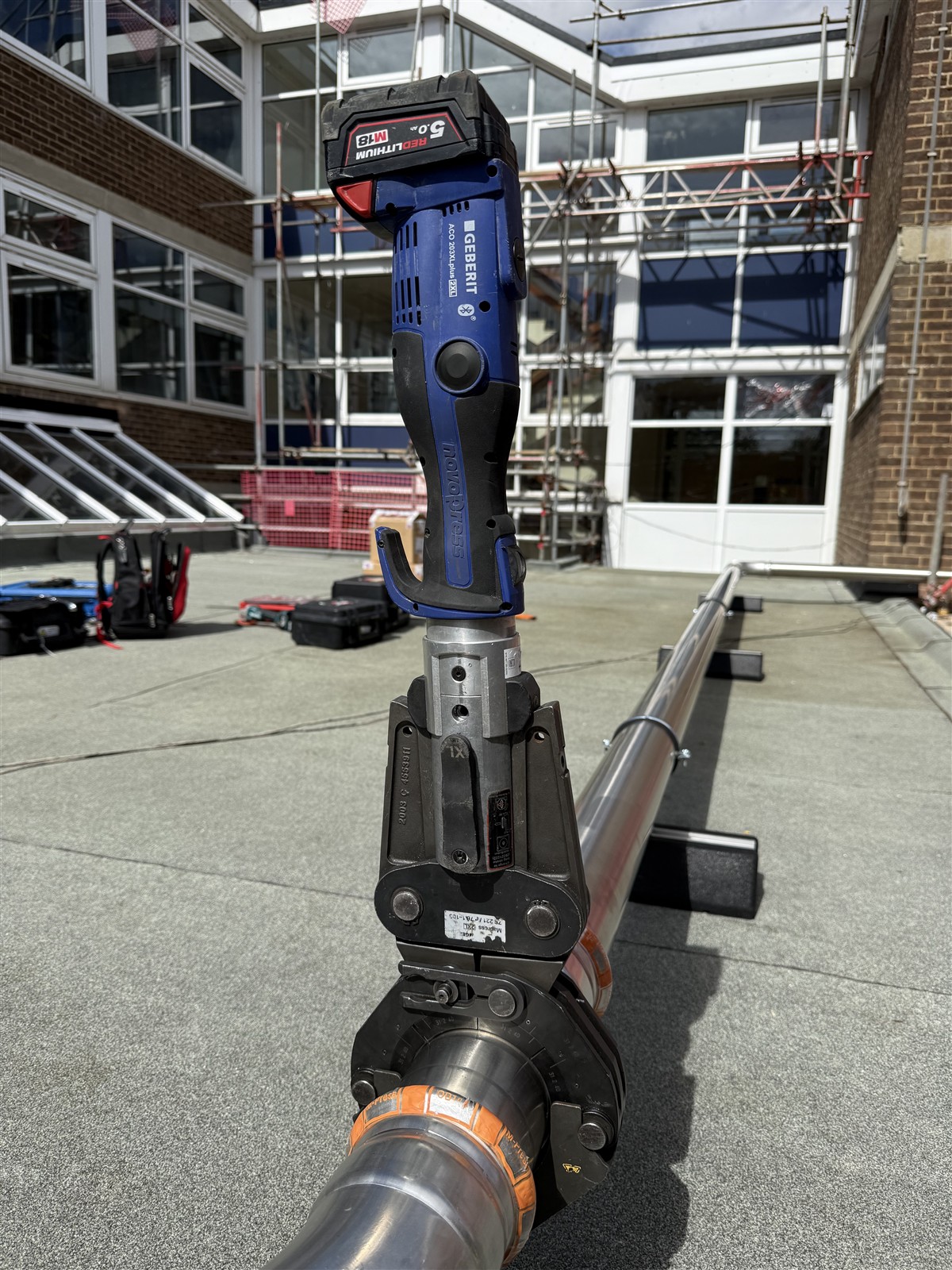

Press tool attached to a stainless steel rooftop gas pipe fitting at Faringdon Community College
Testing

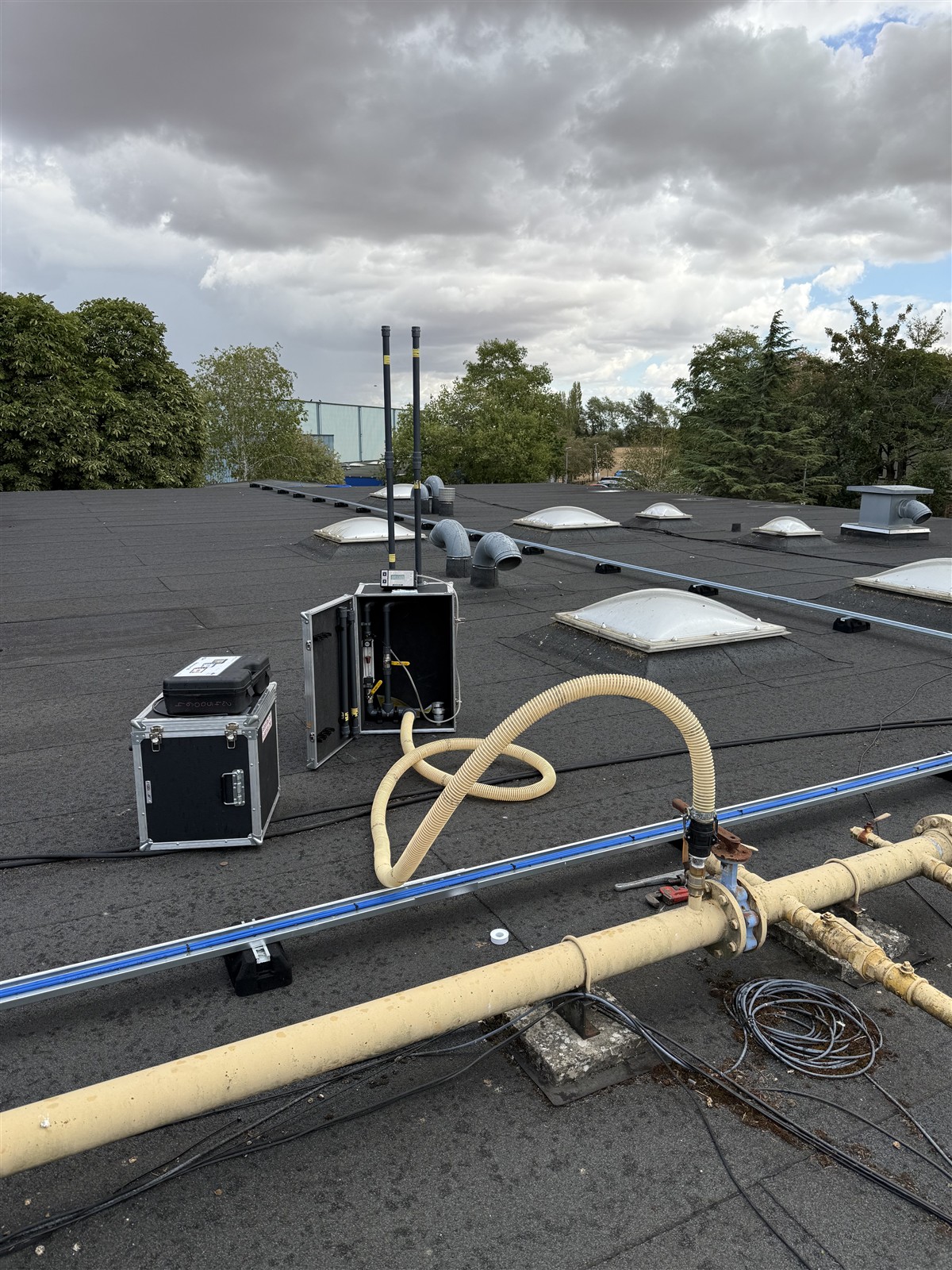

Test equipment and hoses beside the rooftop gas pipework at Faringdon Community College
Completed views

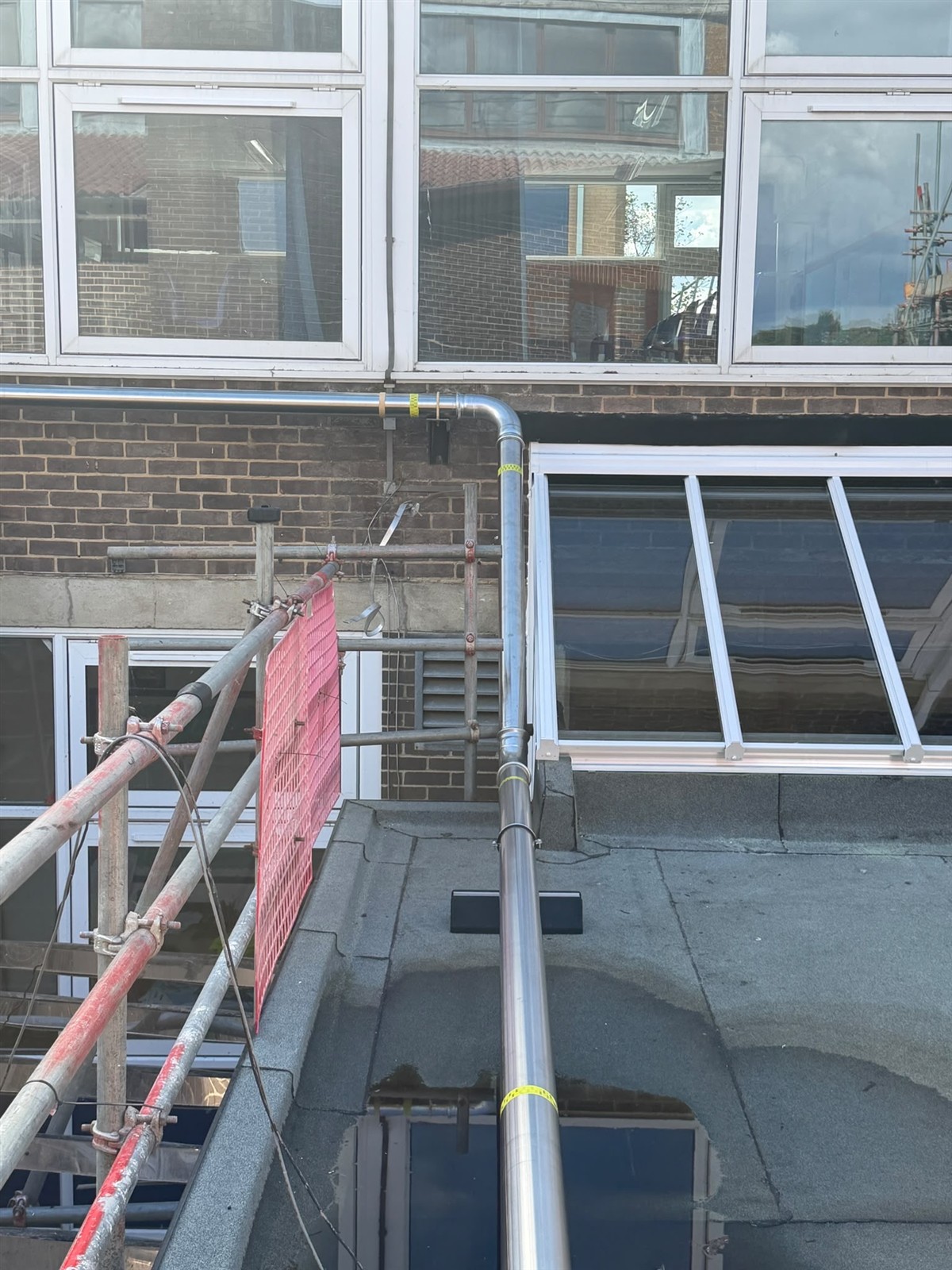

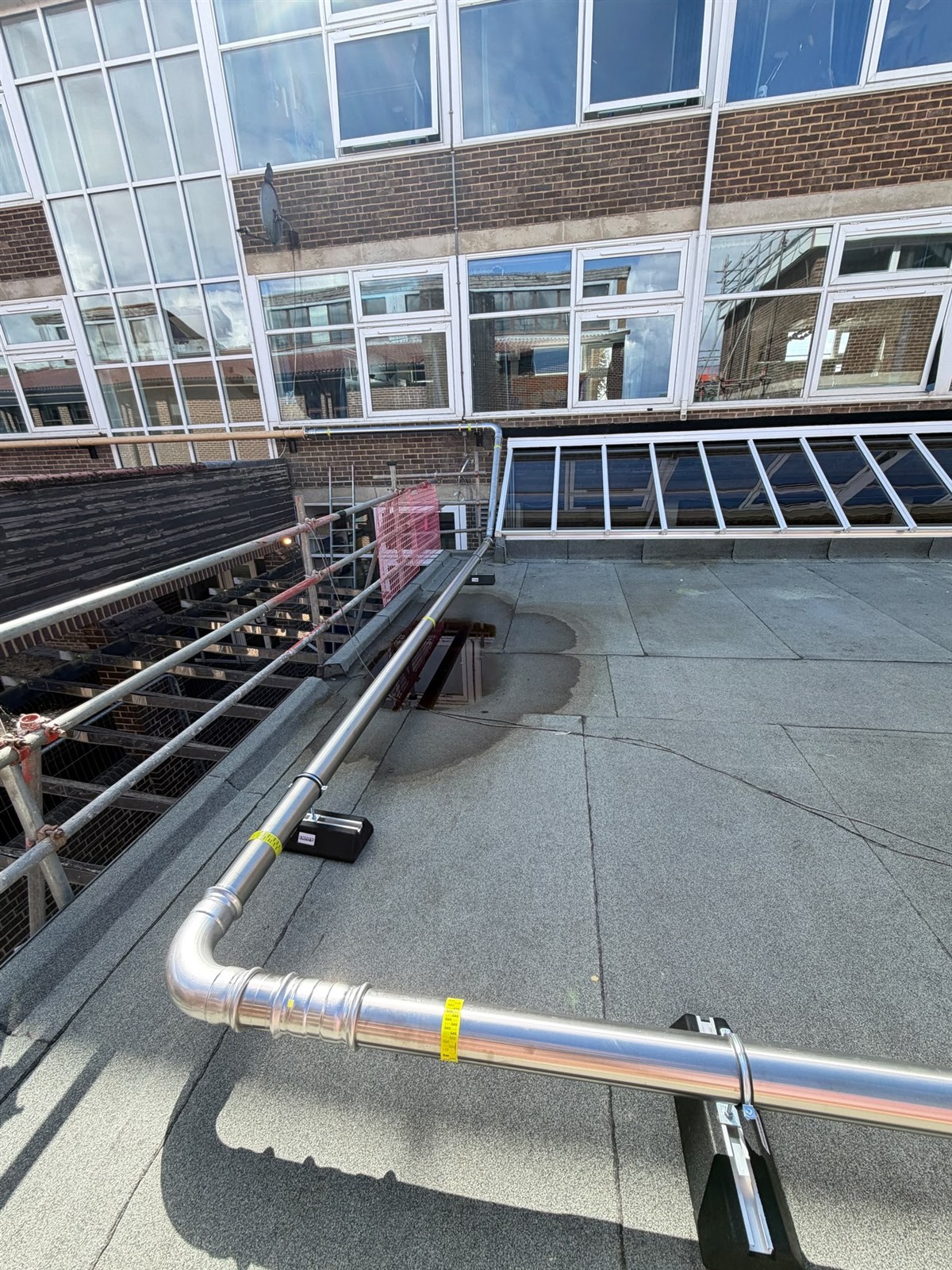

Long stainless steel gas main on protective supports across the school roof at Faringdon Community CollegeSupported stainless steel gas main turning around the school roof edgeStainless steel gas pipe rising beside the classroom windows at Faringdon Community College
Oxyplumb’s photographs at Prebendal Nursing Home show replacement circulation pumps fitted into the existing plant-room pipework.
Pressure control
A separate job record specifies a replacement Mikrofill 3 pressurisation unit. The gallery includes the installed controller alongside the pump work, without presenting separate visits as one installation.
Work on site
Before / preparation

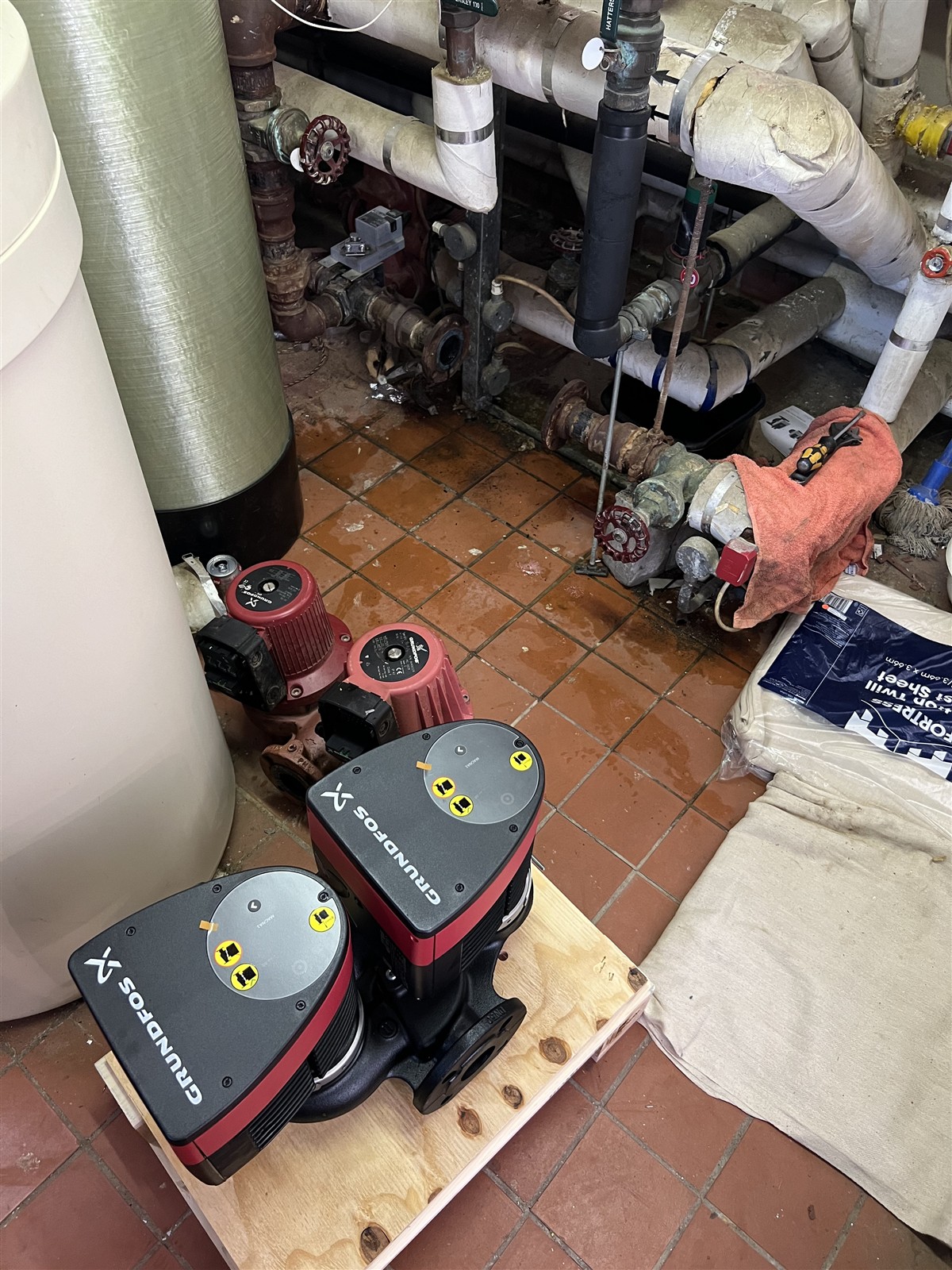

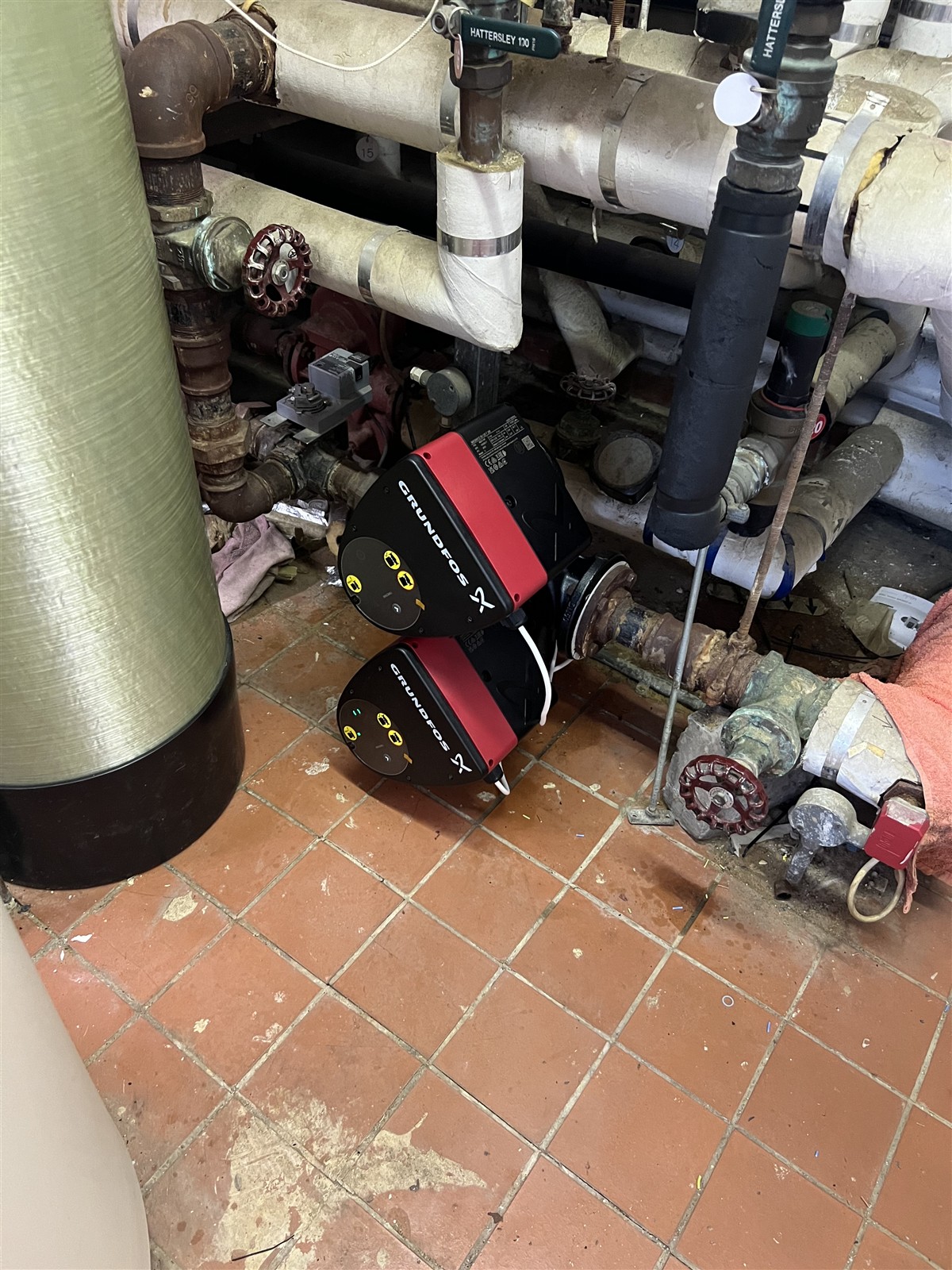

Replacement circulation pumps on the floor beside the existing nursing-home plant
Installed views
Red-and-black circulation pumps fitted into the nursing-home pipework
Controls detail

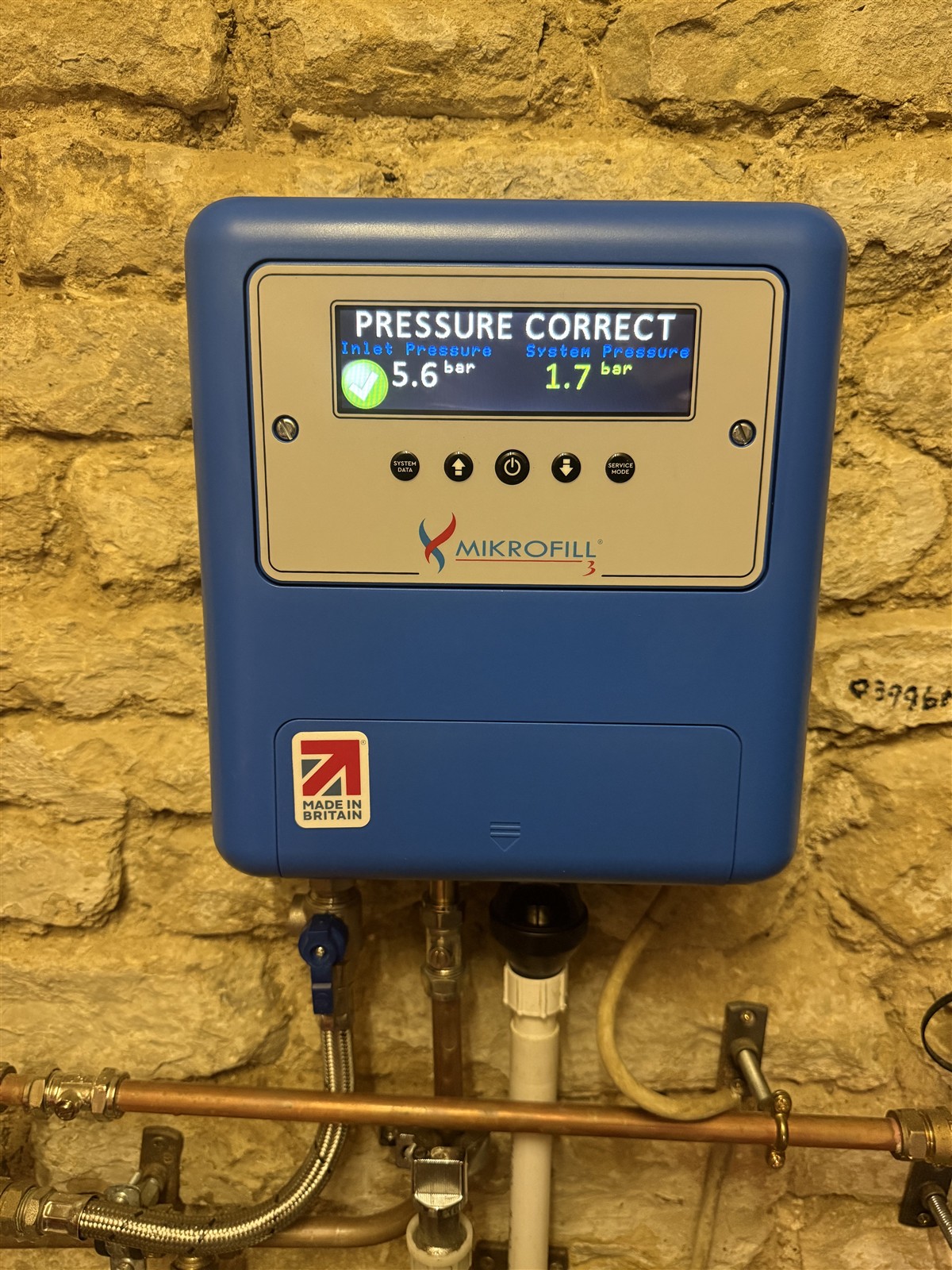

Mikrofill pressurisation controller from the Prebendal Nursing Home photo folder
A boiler upgrade at Carterton Community Hall, replacing the existing heat source while retaining the building’s established heating controls.
The new installation
The job specification includes a Vaillant ecoTEC Plus 48kW commercial boiler, a plate heat exchanger, a magnetic filter and a new Grundfos circulating pump, with altered and insulated connecting pipework.
Keeping the existing system
The arrangement separates the new boiler from the existing heating circuit and reuses the current controls and motorised valves.
Work on site
Work / service view
Wall-mounted Vaillant boiler with front casing removed in the Carterton Community Hall plant room
Installed views

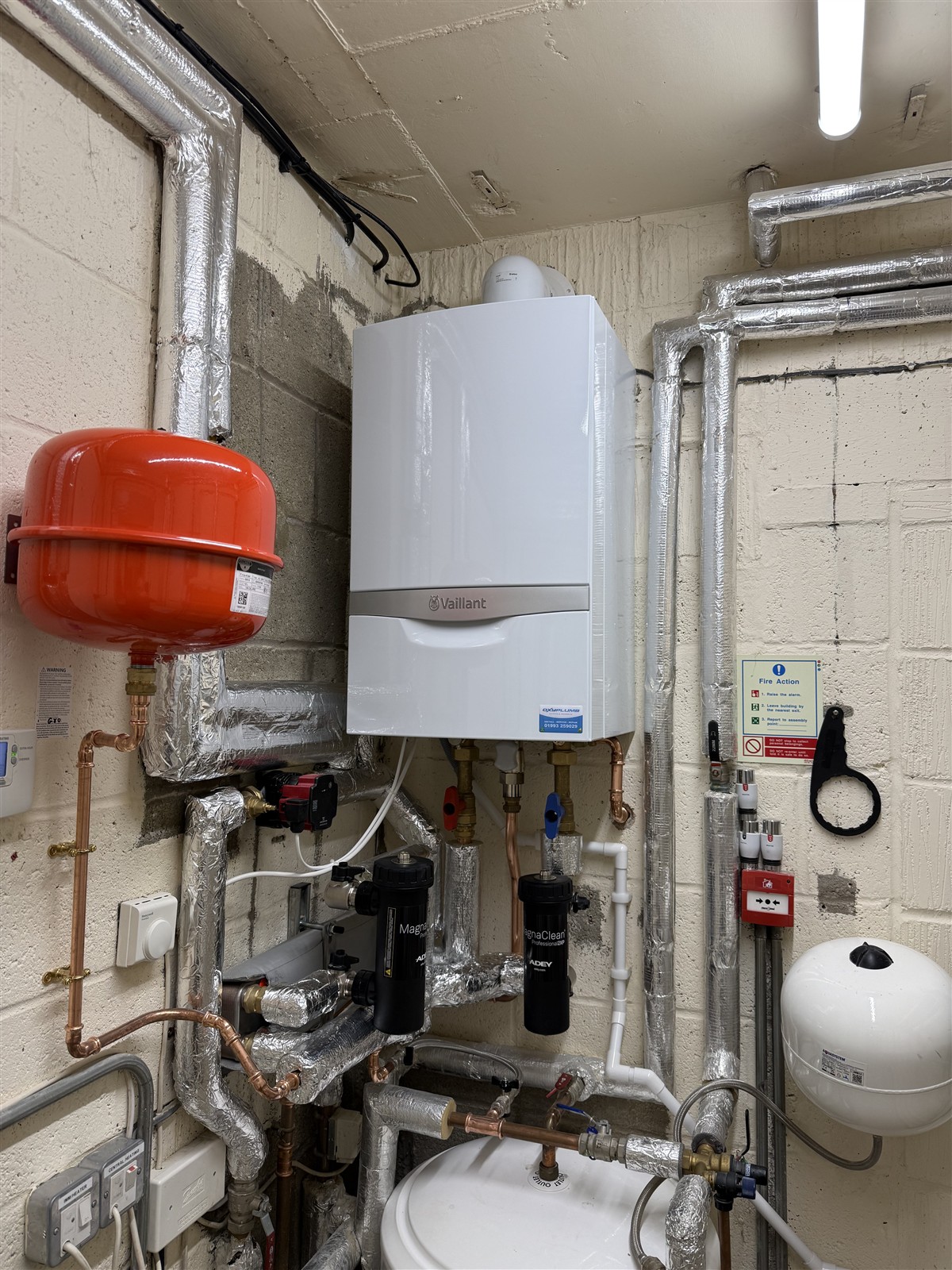

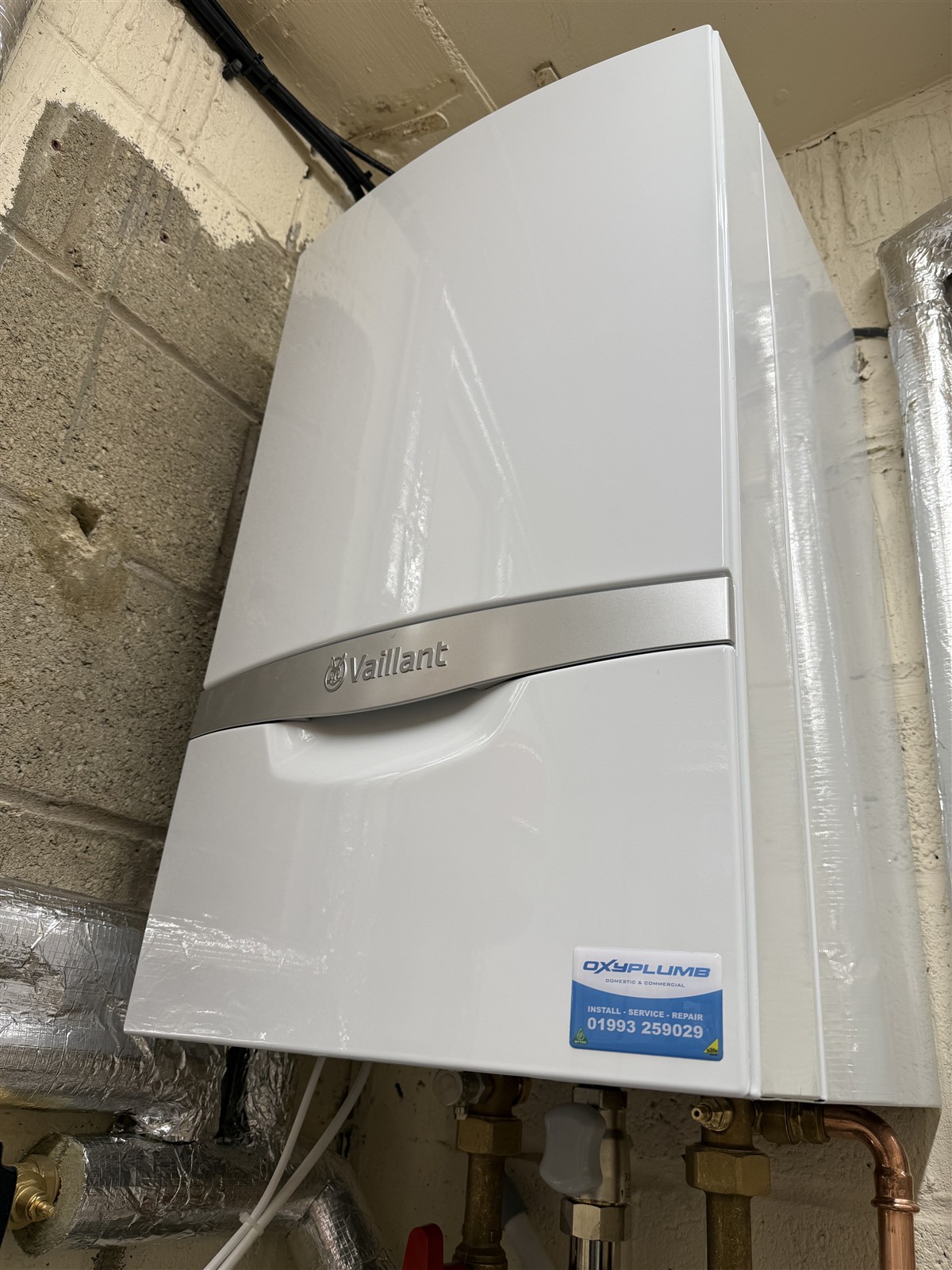

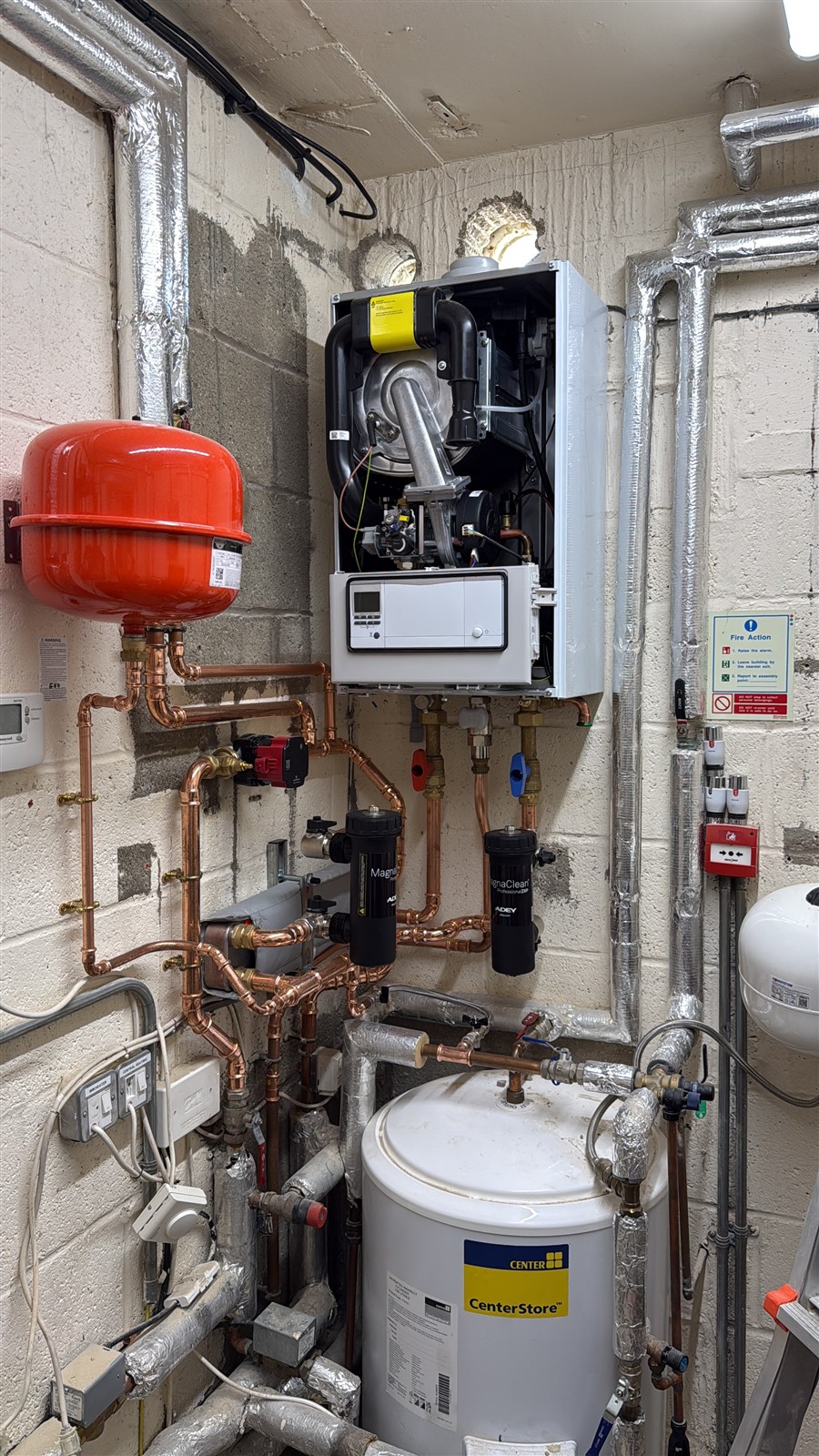

Vaillant boiler with red expansion vessel and connected plant-room pipework at Carterton Community HallClosed Vaillant boiler casing with Oxyplumb service label at Carterton Community Hall
The museum’s heating was served by two older Vaillant boilers.
The replacement
The replacement scope comprises two Worcester Bosch Greenstar 8000+ 35kW system boilers, a new low-loss header and individual system filters. High-level flues follow the existing route, with an access hatch for future servicing.
Working with the existing building
The design retains the existing system controls, motorised valves and downstream pumps, connecting new boiler plant to the museum’s established heating system.
Work on site
Before
Earlier pair of wall-mounted boilers and green expansion vessel at the Vale and Downland Museum
Testing / work in progress

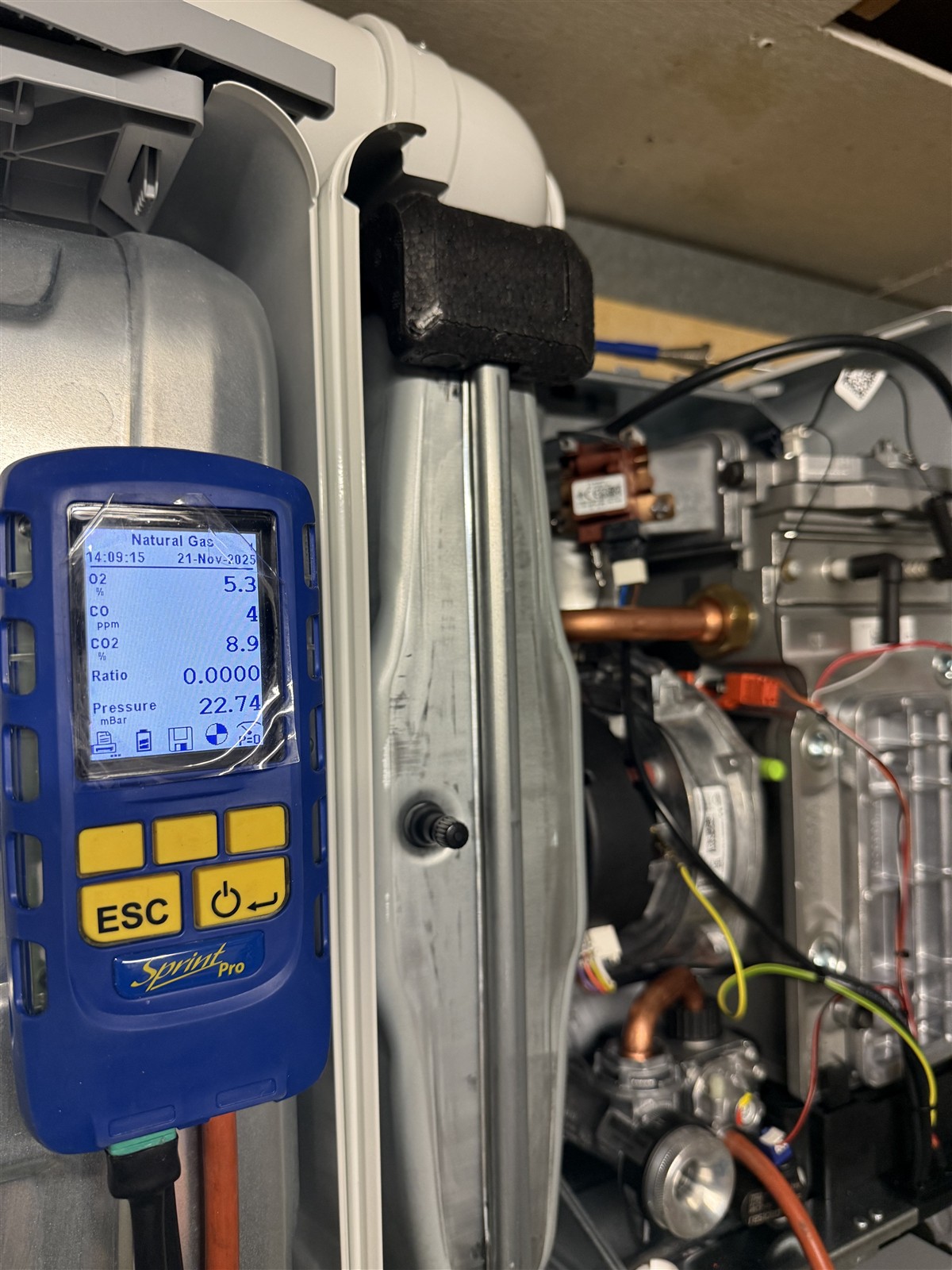

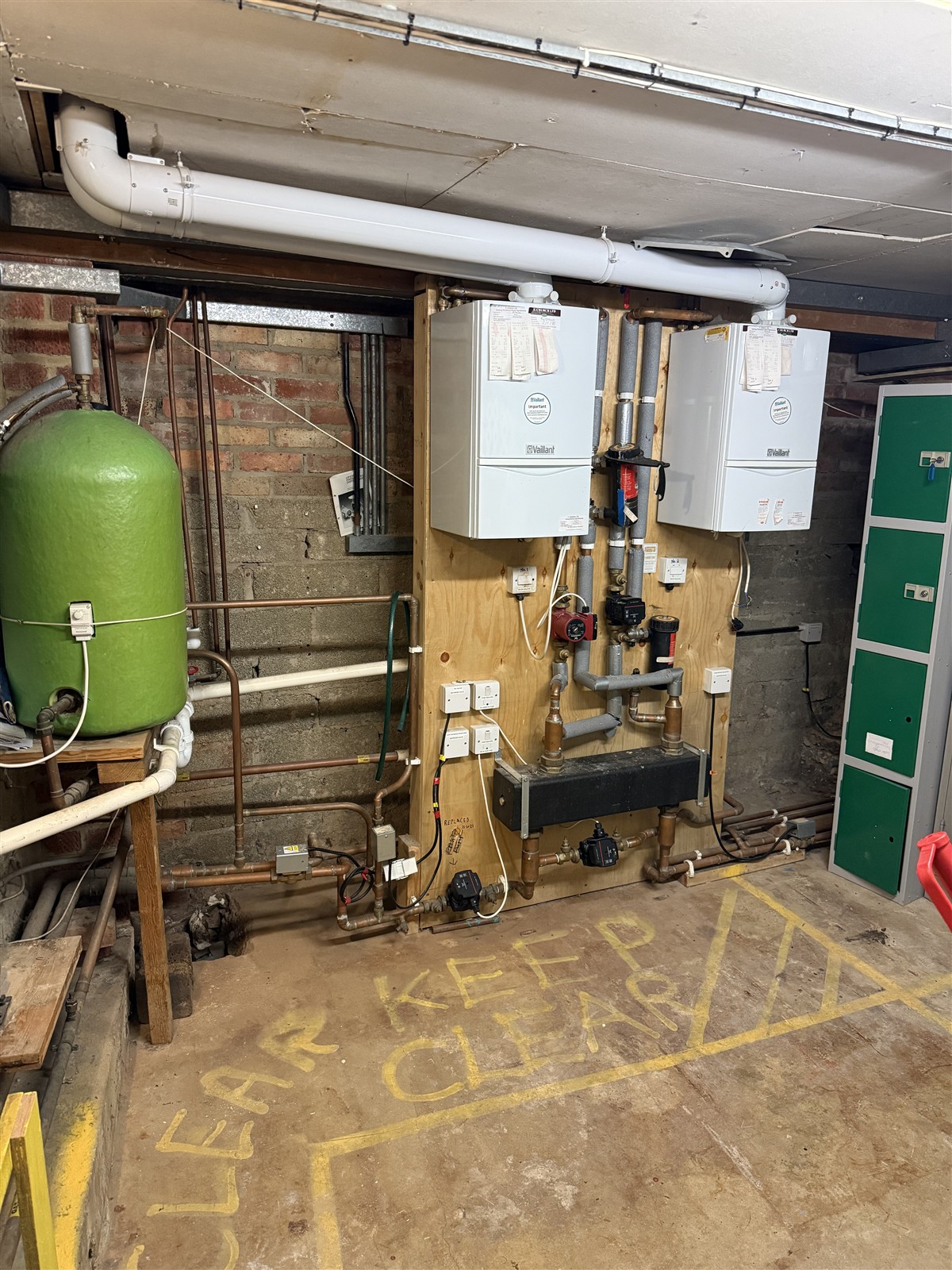

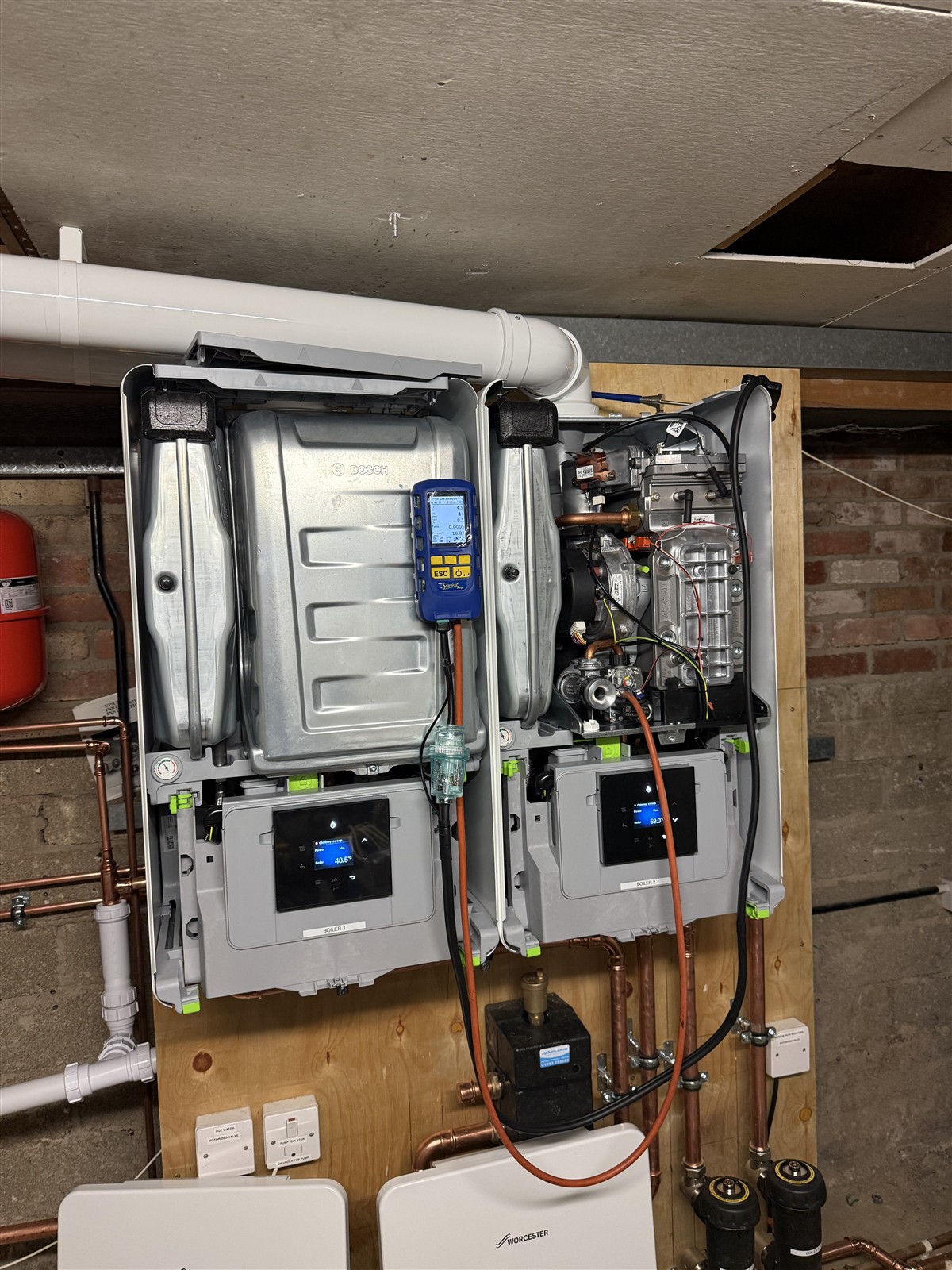

Twin replacement boilers with casings removed and test equipment connected at the museumCombustion analyser beside an open boiler at the Vale and Downland Museum
Installed views

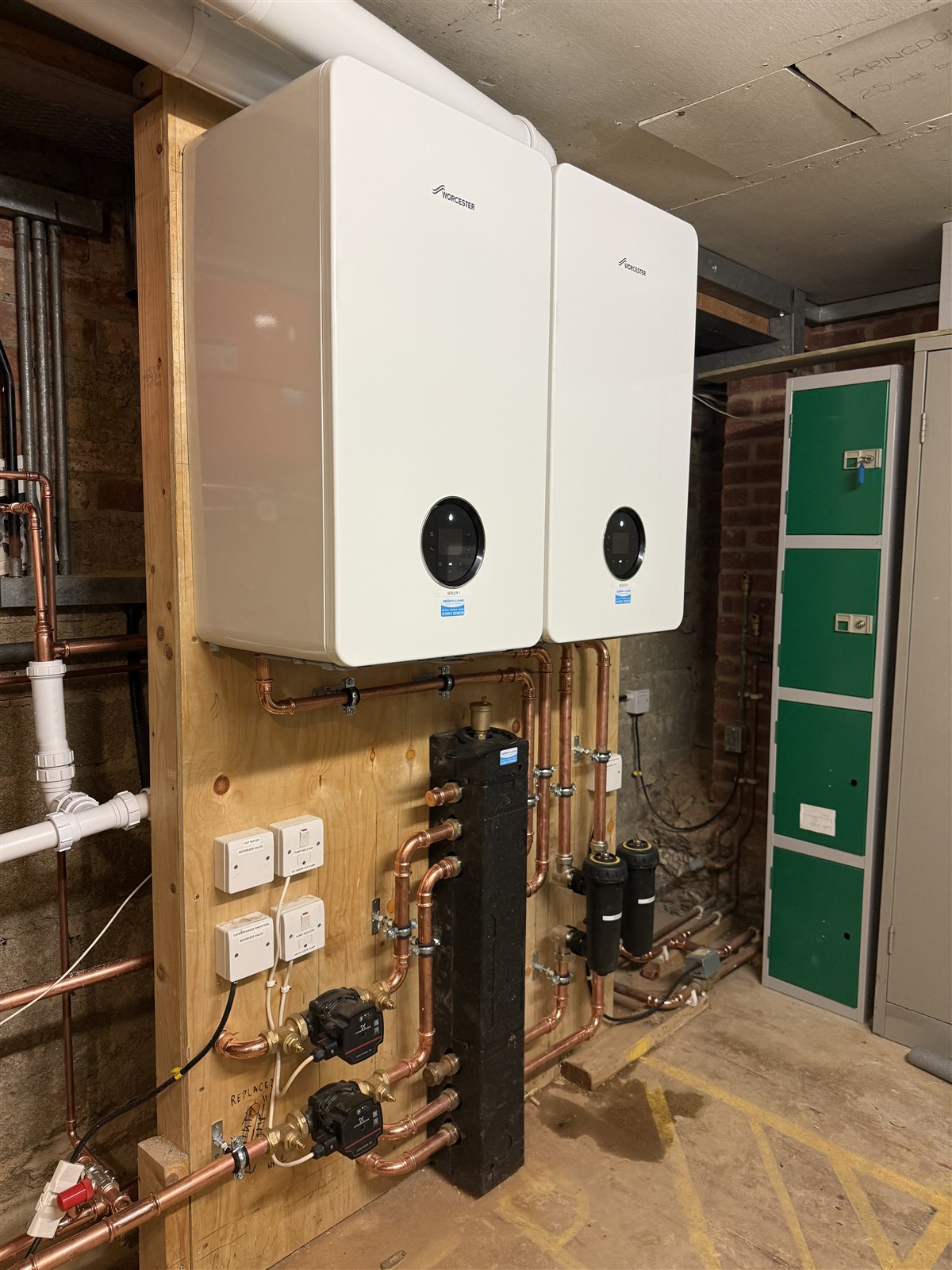

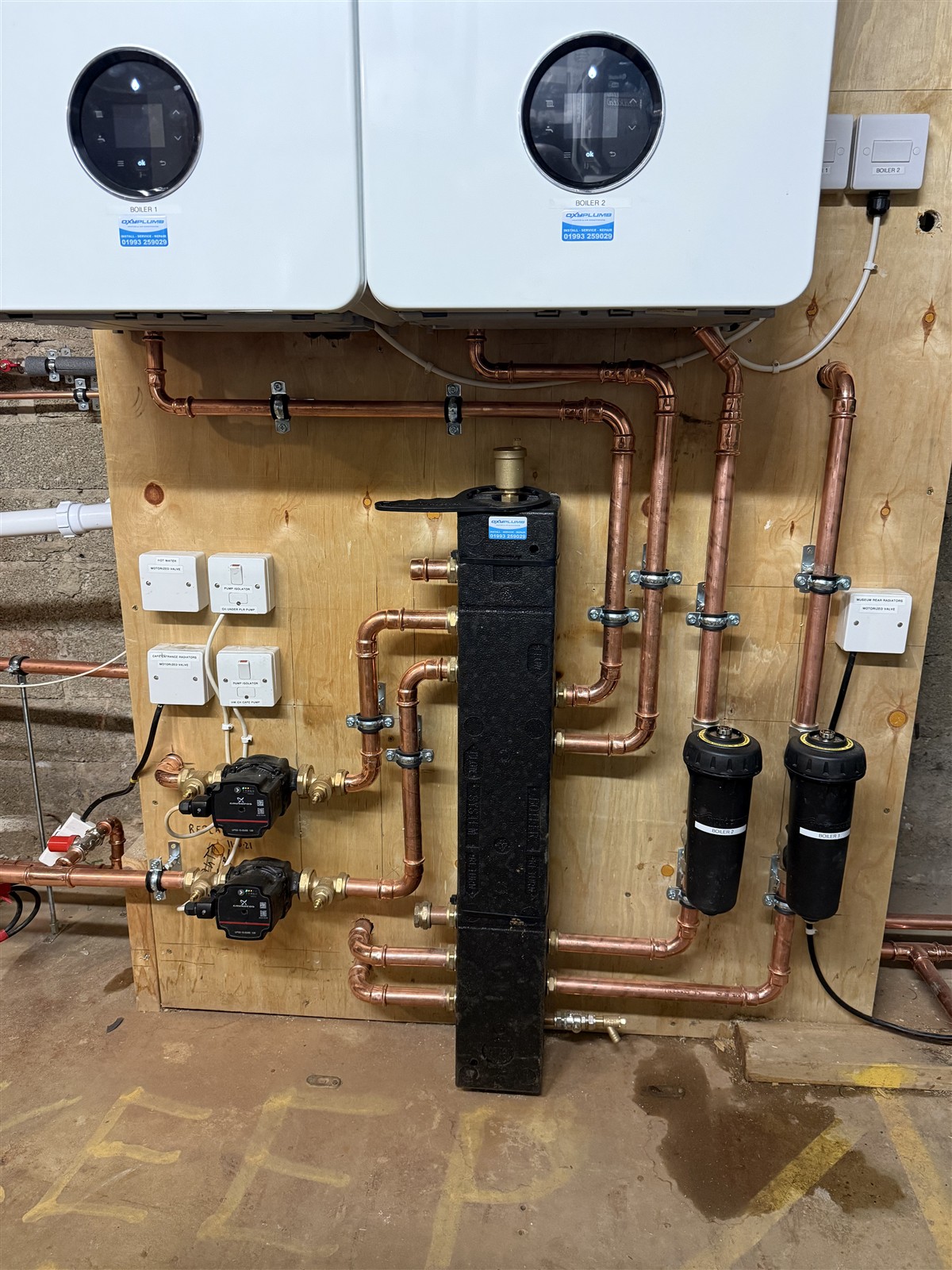

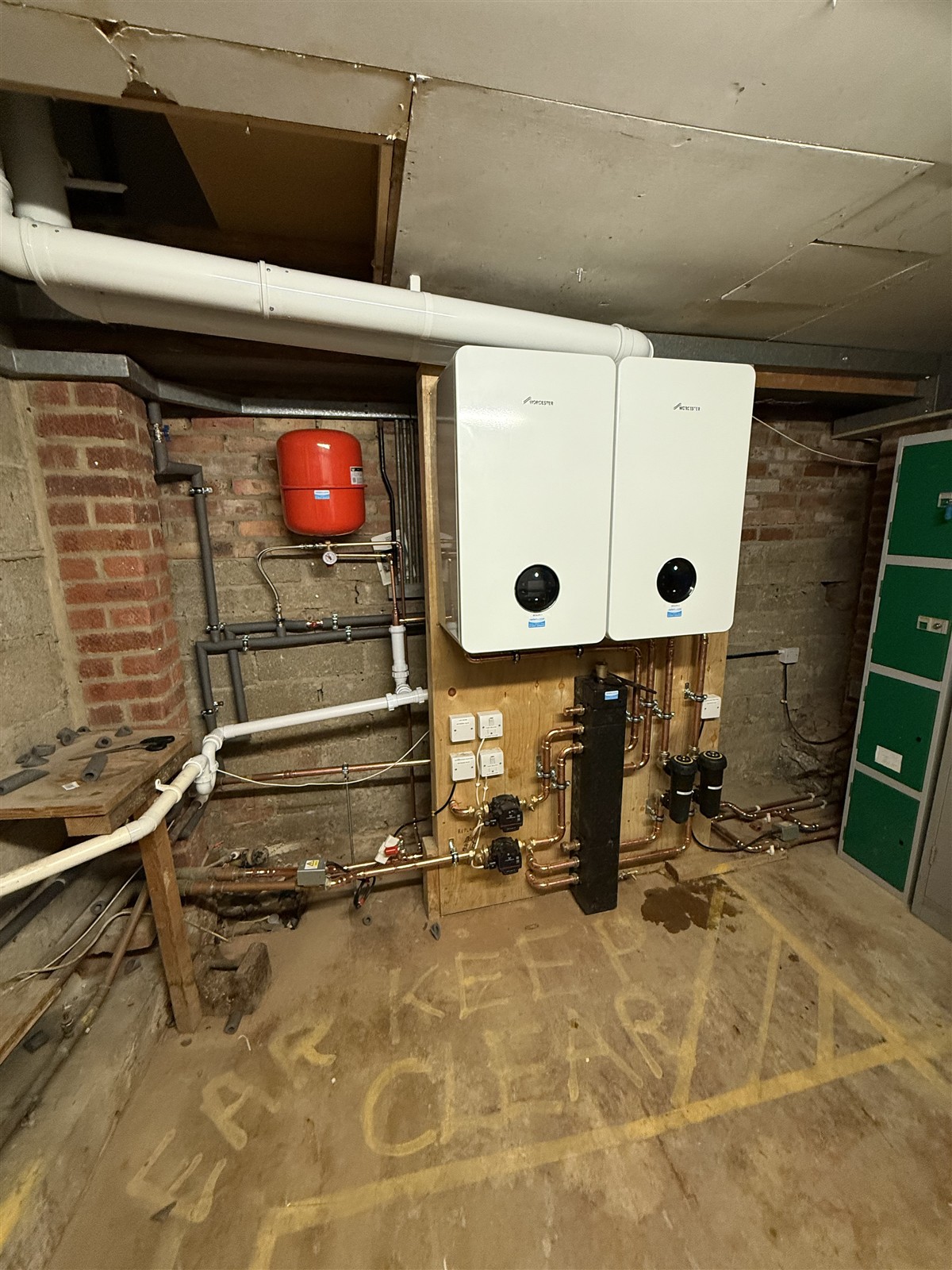

Twin Worcester boilers with closed casings and connected manifold at the museumPumps, filters and manifold beneath the twin boilers at the museumSide view of twin Worcester boilers and connected pipework at the Vale and Downland Museum
The school’s plant room housed Broag Remeha L200 boilers dating from 1998.
The replacement
The replacement specification called for two Firebird Envirogreen commercial oil boilers, a 200kW plate heat exchanger to separate the boiler circuit from the existing heating system, and a 300-litre indirect hot-water cylinder.
Designed around the school
The scope also included variable-speed circulation pumps, insulated and labelled pipework, and integration with the school’s existing building-management controls. The photographs show the old plant, strip-out, replacement boilers and cylinder, pumps and insulated services.
Work on site
Before

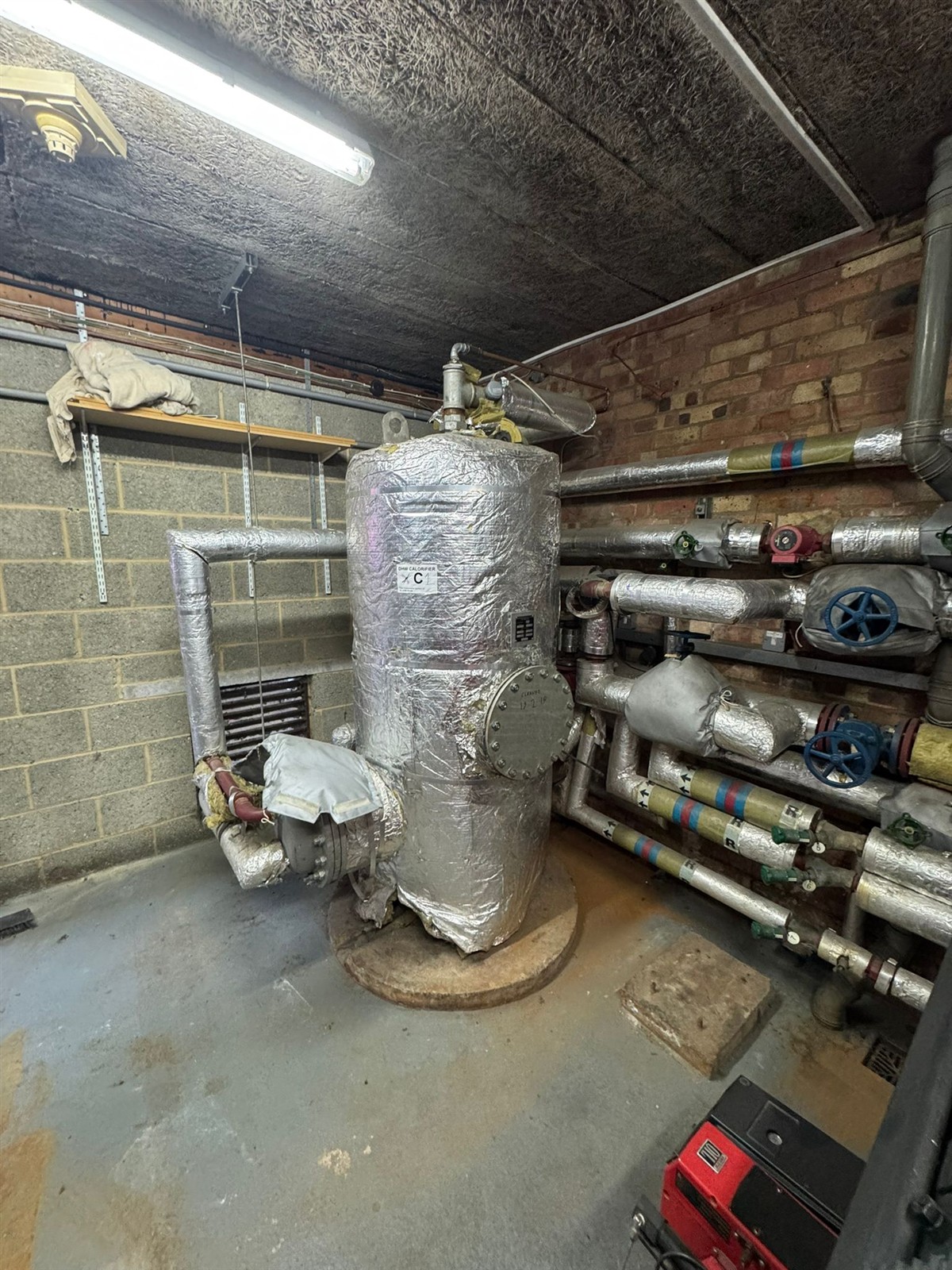

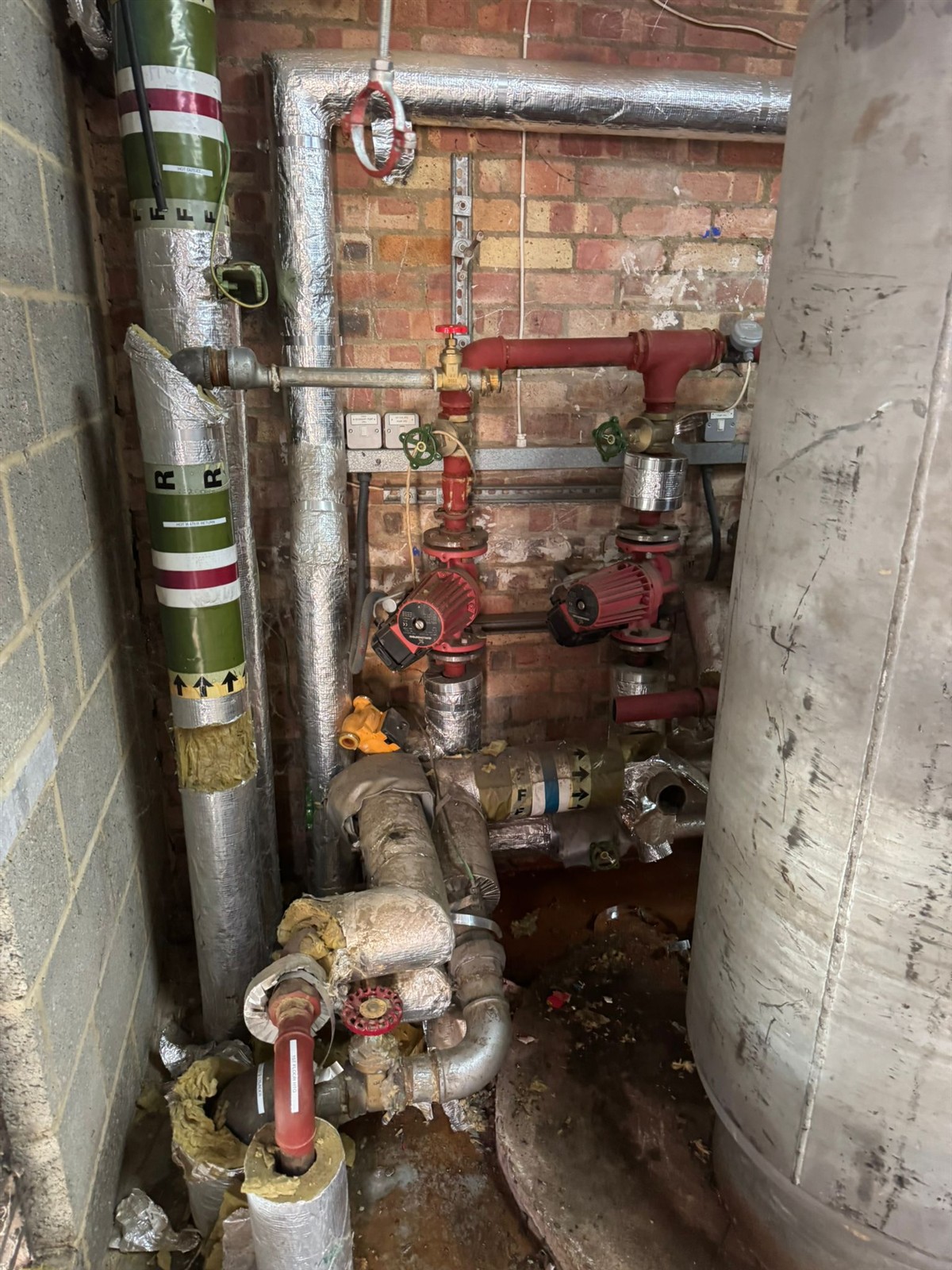

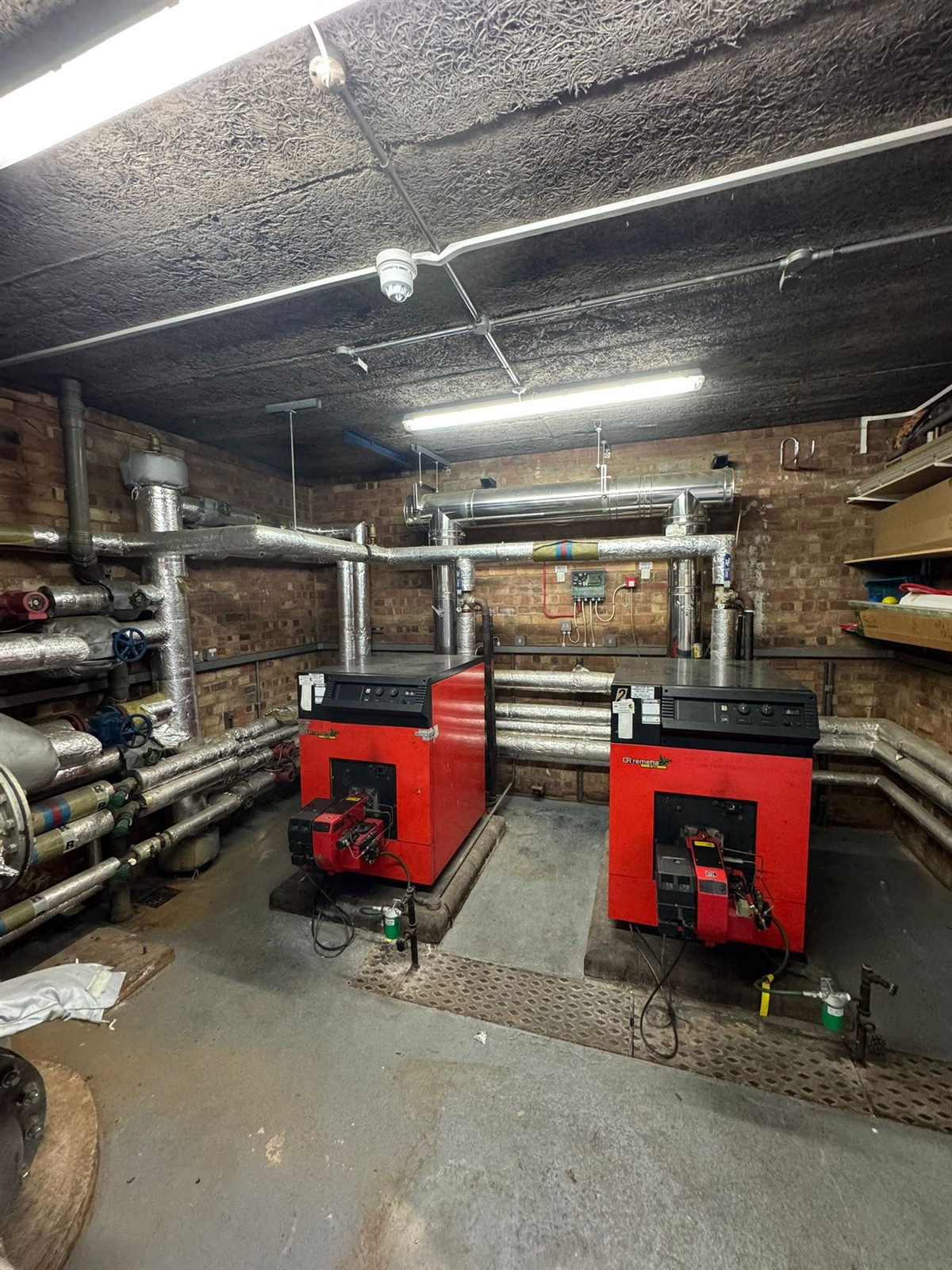

Original red Remeha boilers and existing insulated pipework before the Mulberry Bush School replacementEarlier pump and valve arrangement beside the school hot-water cylinderPrevious foil-covered hot-water cylinder and existing services before the Mulberry Bush School refurbishment
In progress

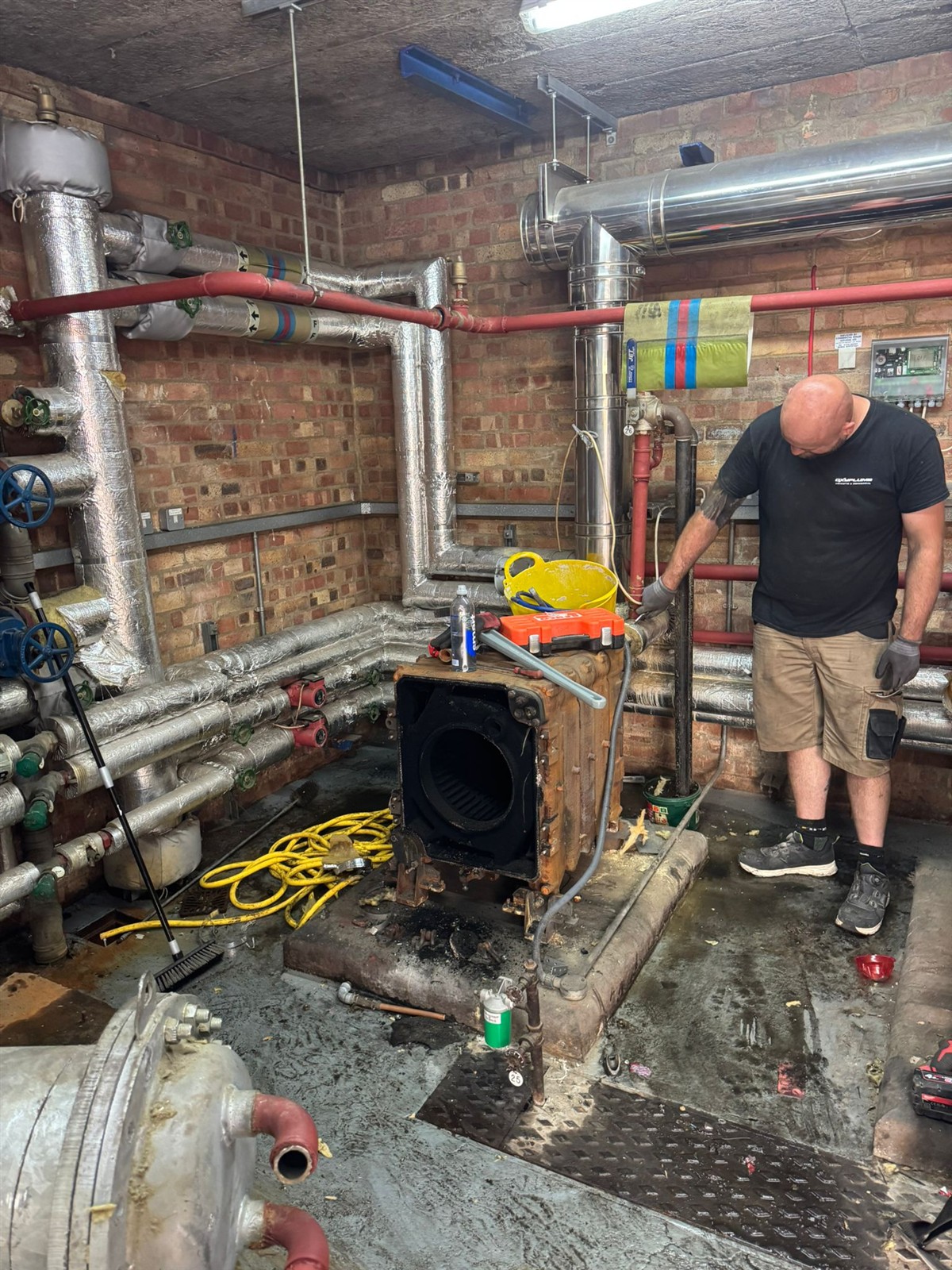

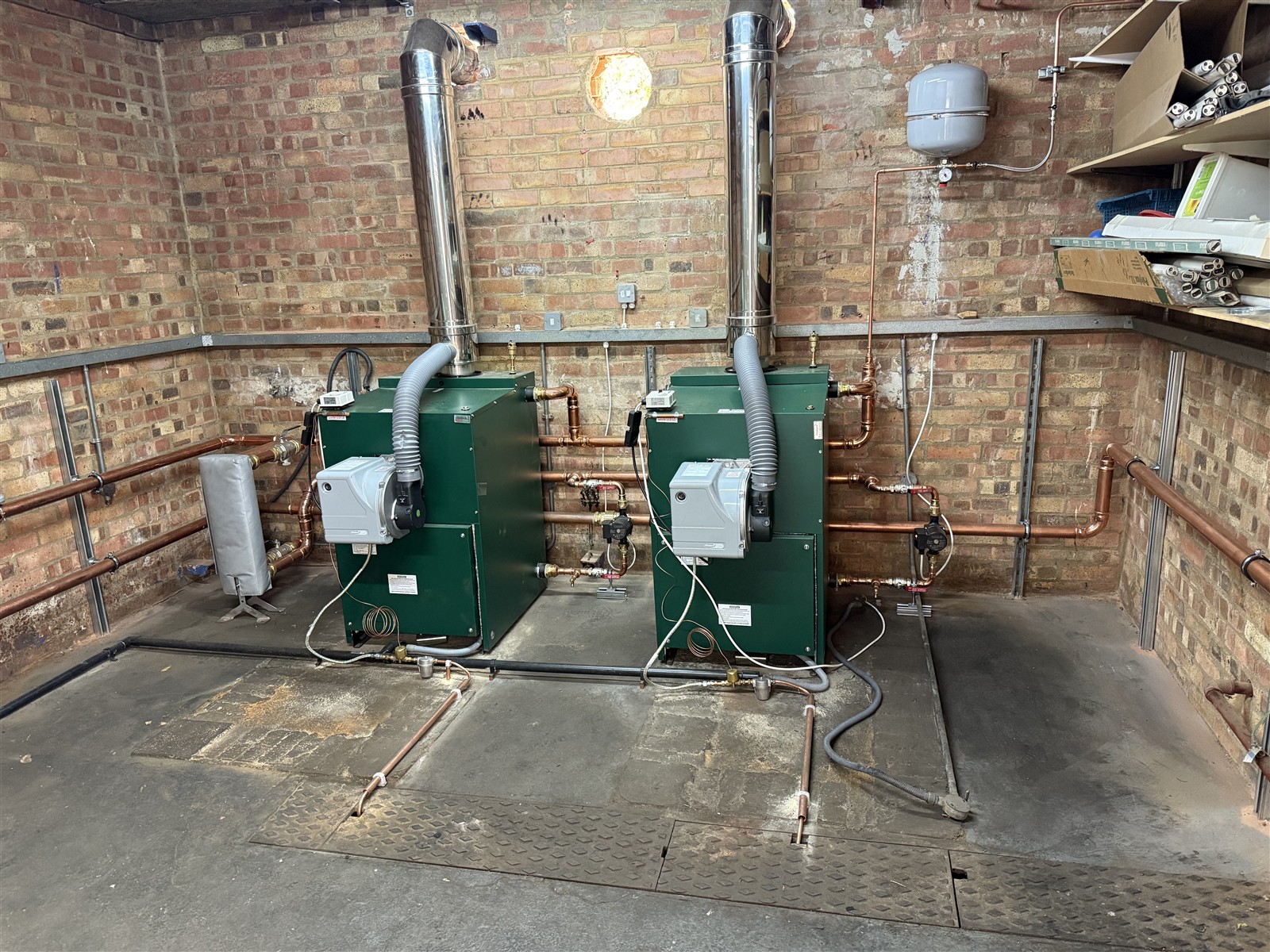

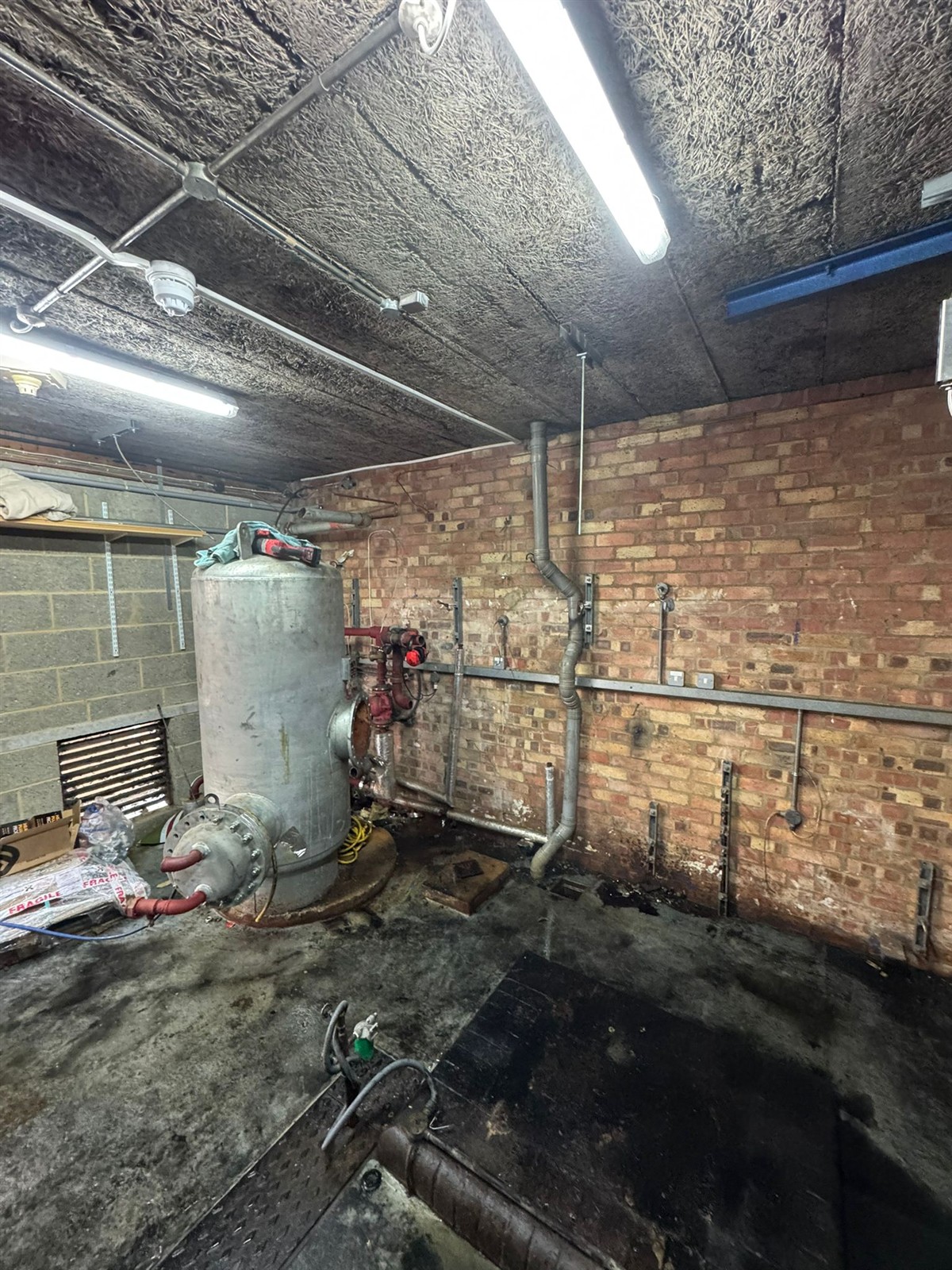

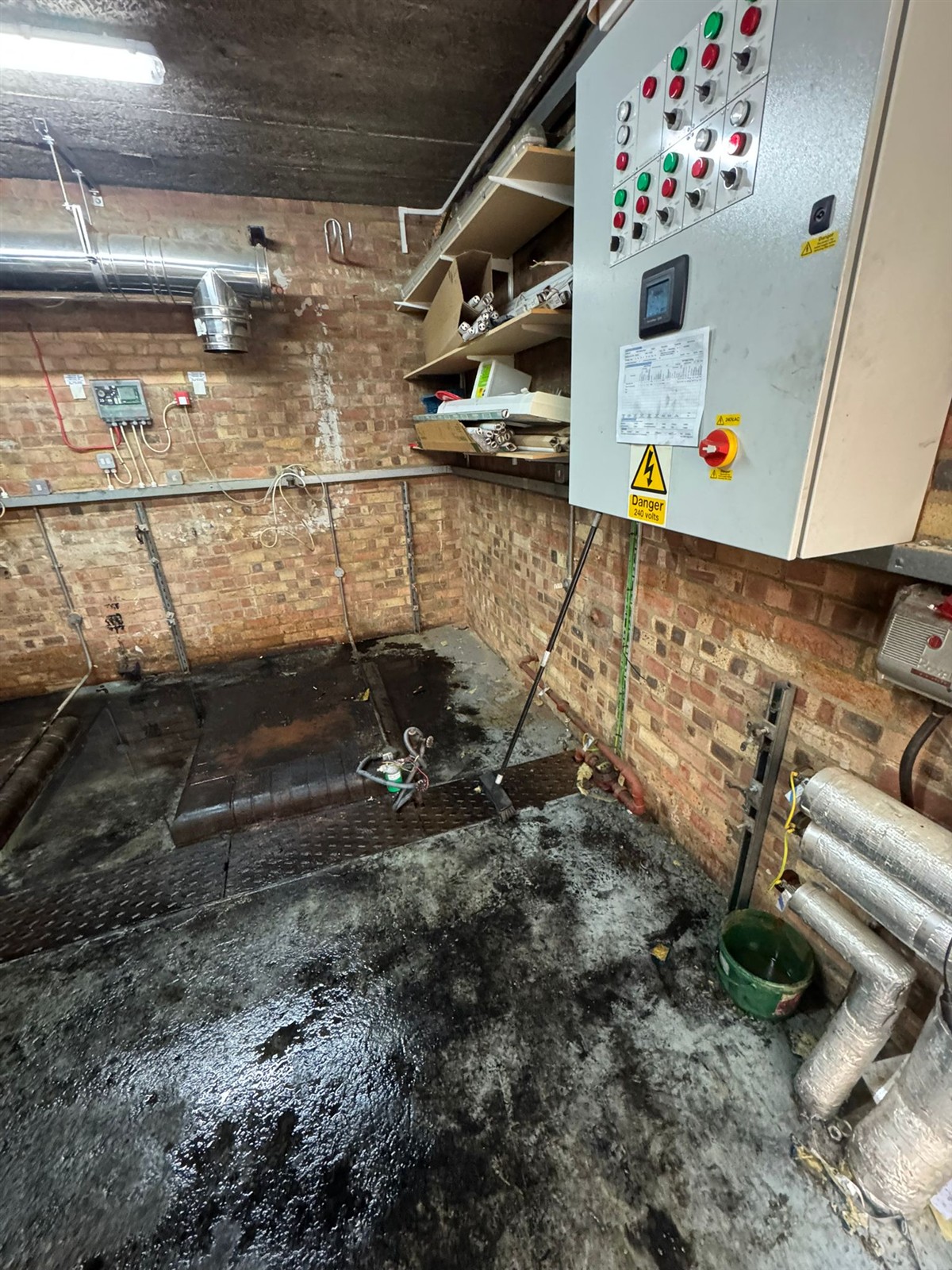

Engineer and removed equipment during the Mulberry Bush School plant-room strip-outMulberry Bush School plant room during strip-out, with the previous cylinder and cleared boiler floor areaCleared plant-room floor and wall-mounted control panel during refurbishmentReplacement green boilers with new copper connections before pipe insulation at Mulberry Bush SchoolReplacement hot-water cylinder with newly connected copper pipework before insulation at Mulberry Bush School
Installed views

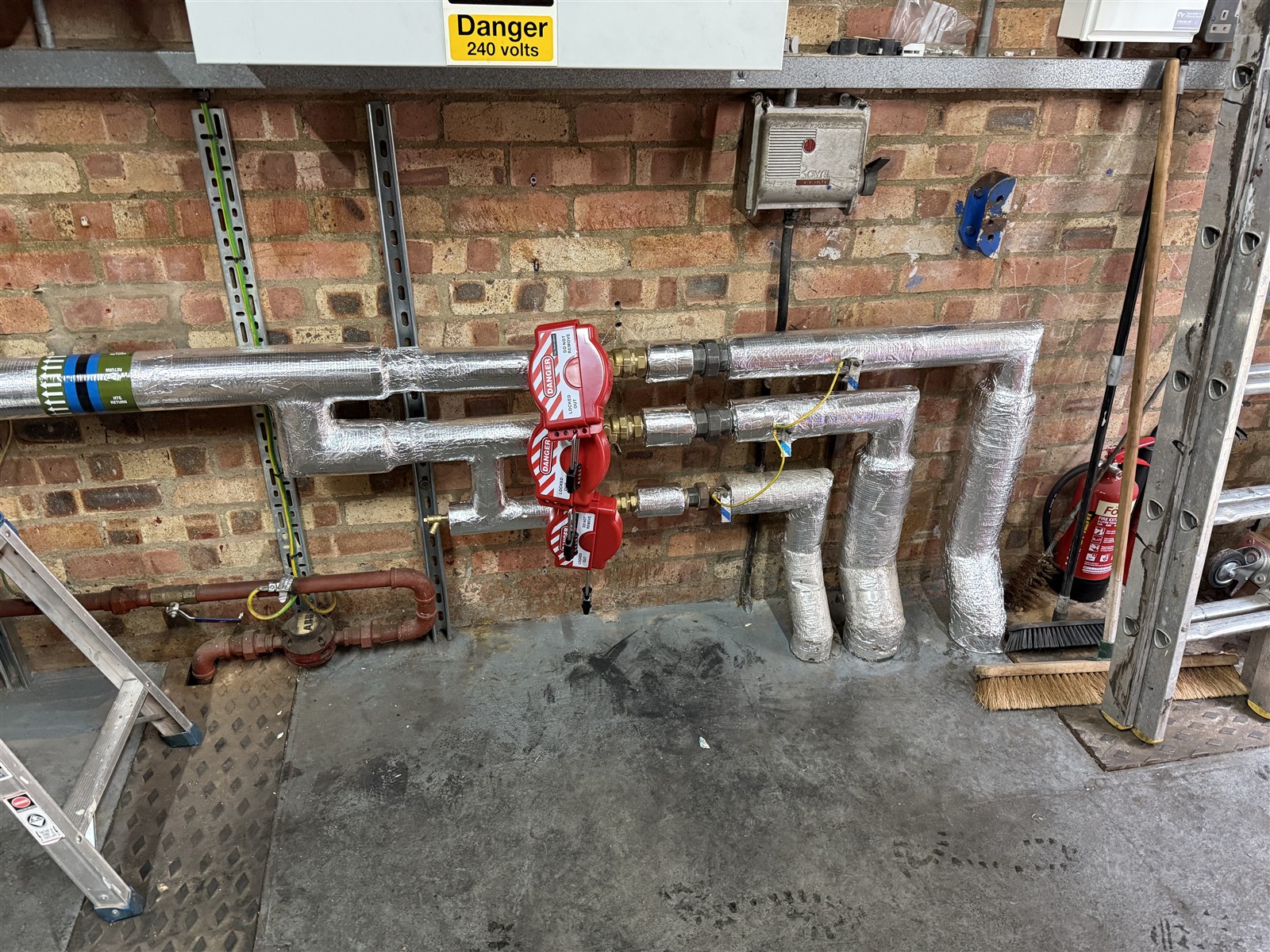

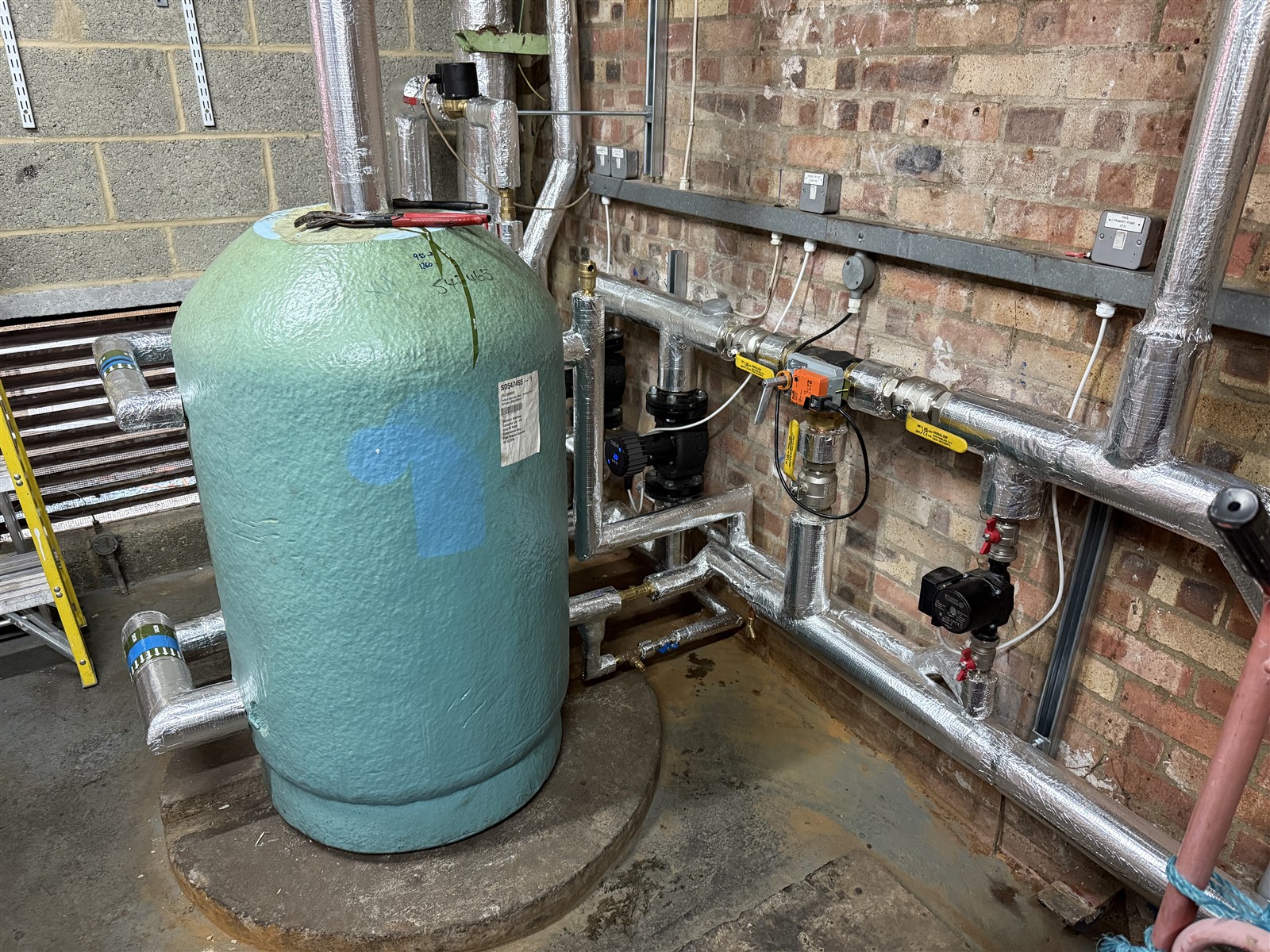

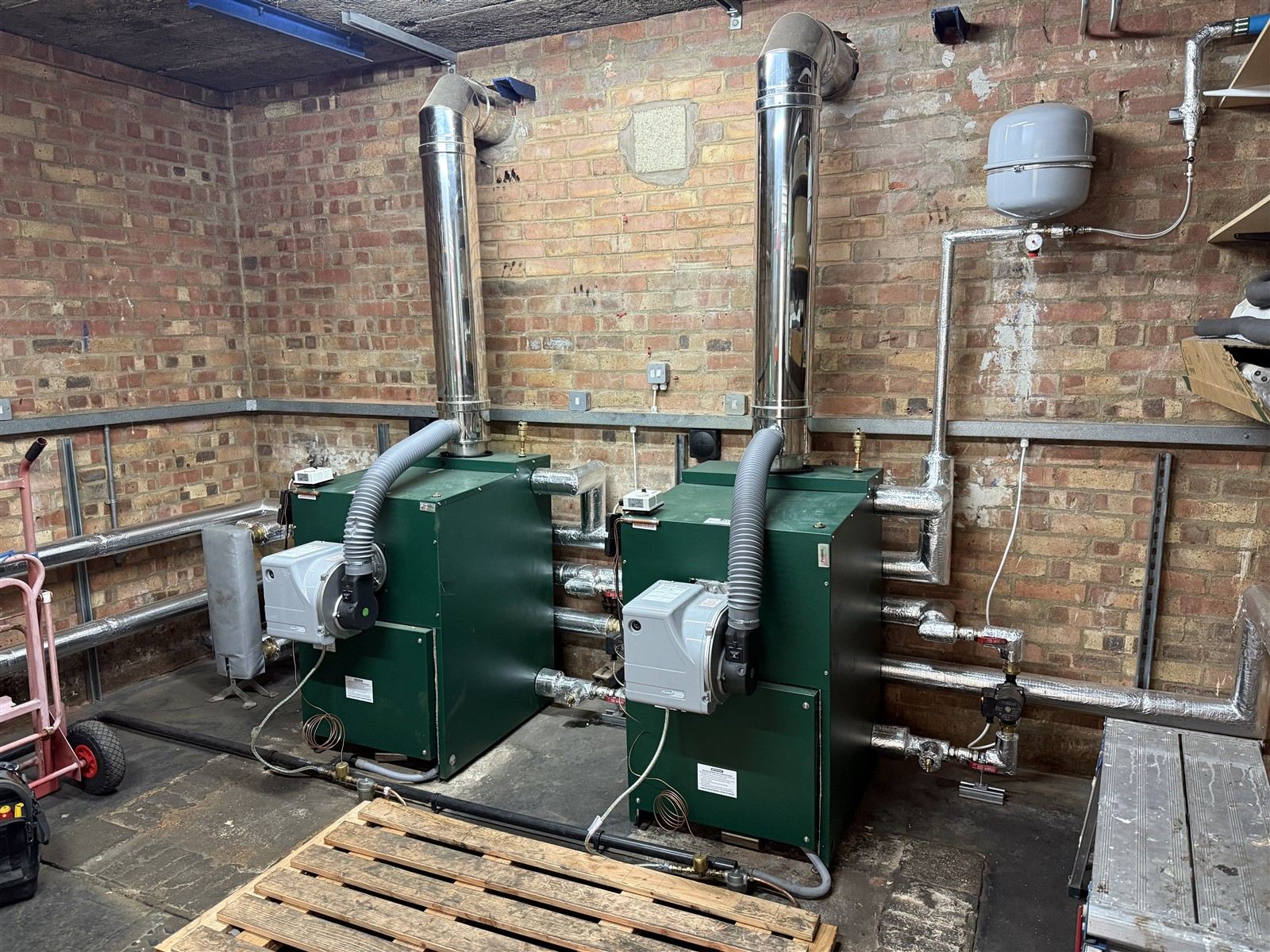

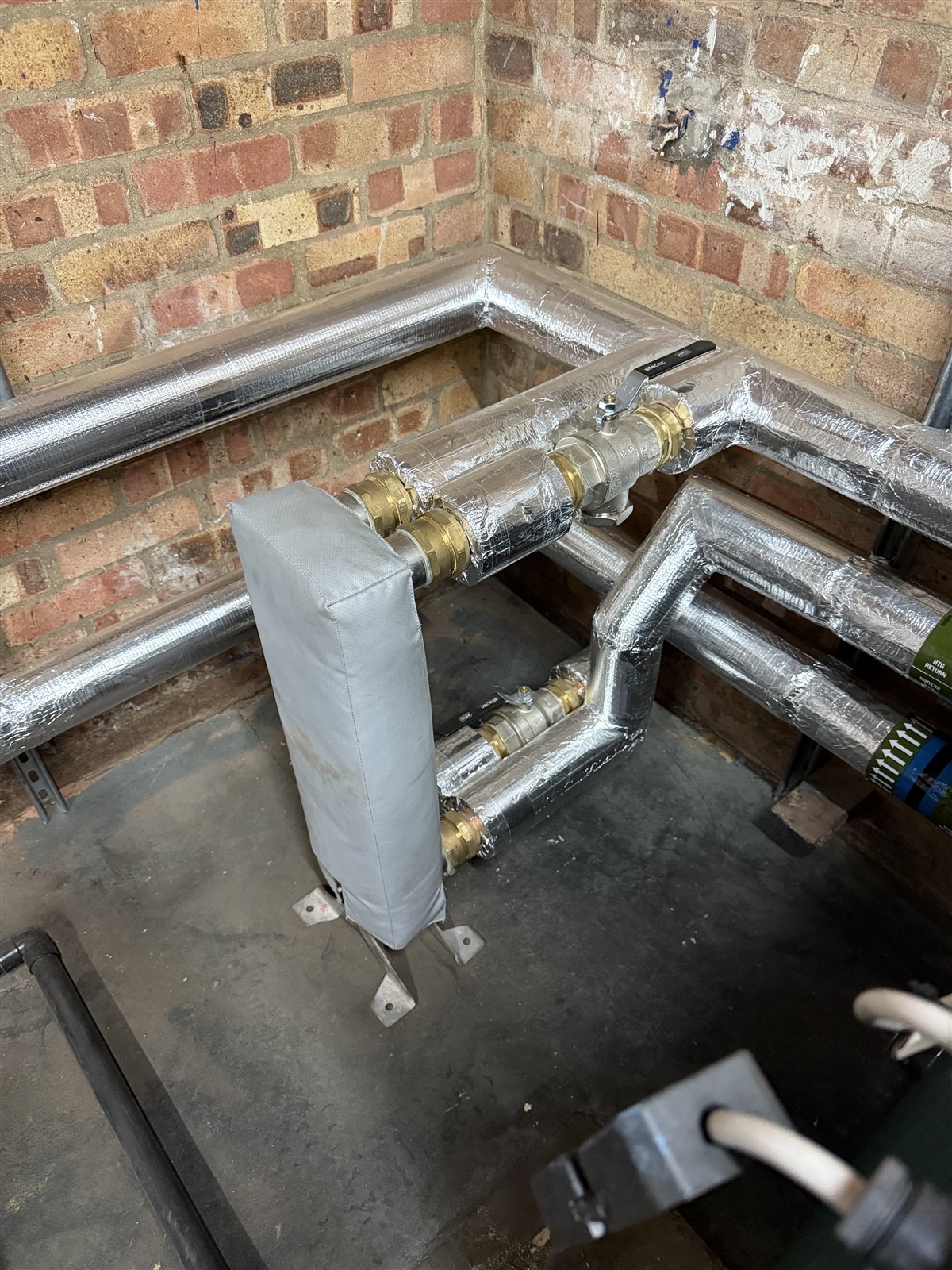

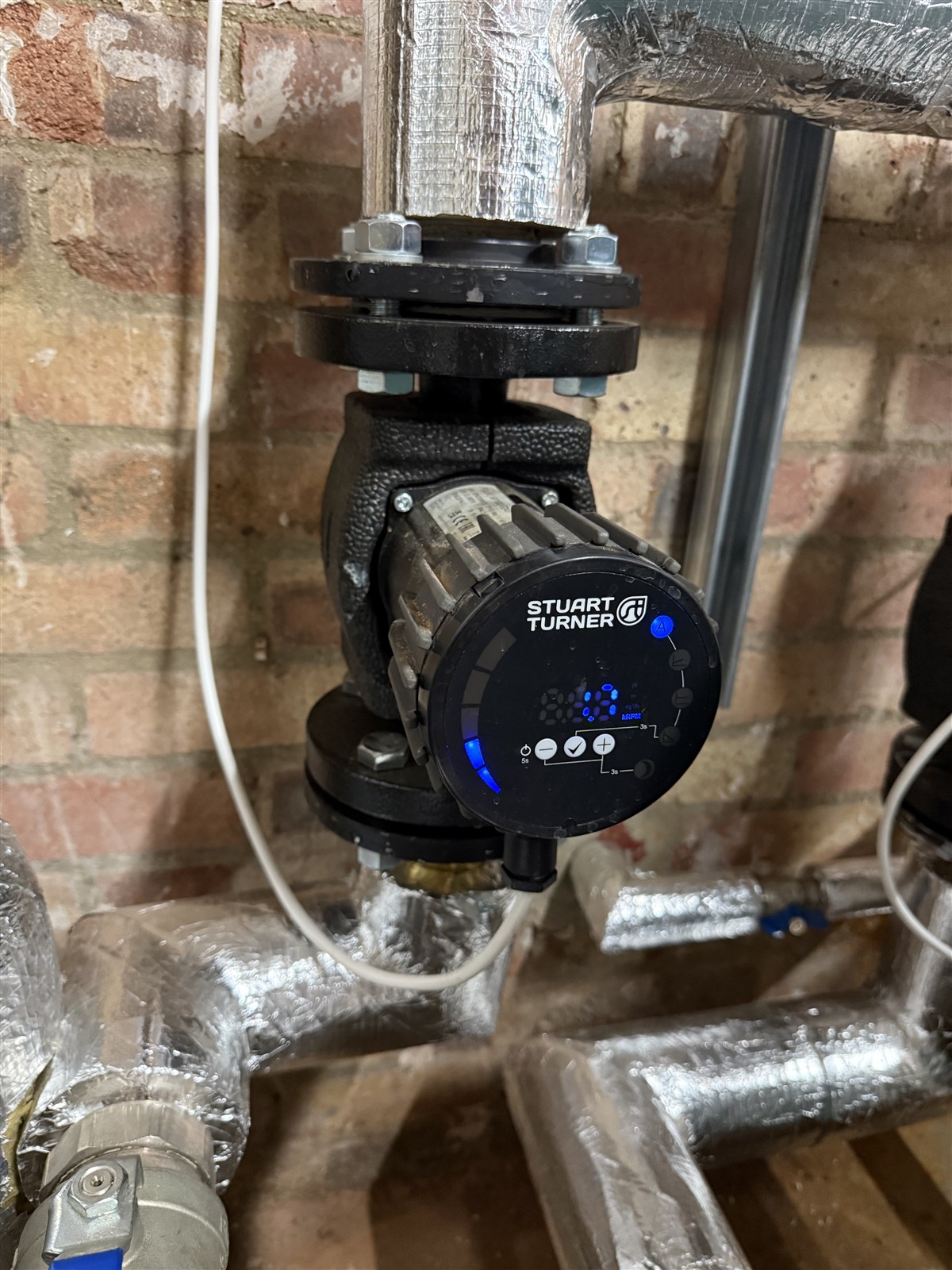

Pair of green replacement boilers with individual flues and insulated connections at Mulberry Bush SchoolInsulated heating distribution pipework and red isolation valves below the Mulberry Bush School control panelGreen hot-water cylinder with insulated pipework, circulation pumps and control valves at Mulberry Bush SchoolCirculation pumps and insulated plant-room pipework at Mulberry Bush SchoolInsulated pipework and low-level header in the school plant roomClose-up of a circulation pump and insulated heating pipework in the Mulberry Bush School plant room
Commercial kitchen services work at Beaconsfield Golf Club, Seer Green, working with Harveys Mechanical.
Work on site
The project photographs show overhead service pipework and a gas manifold with individual isolation valves during the kitchen fit-out.
Project photographs
These views record work in progress and installed components. A completed kitchen overview will be added when available.
Work on site
In progress

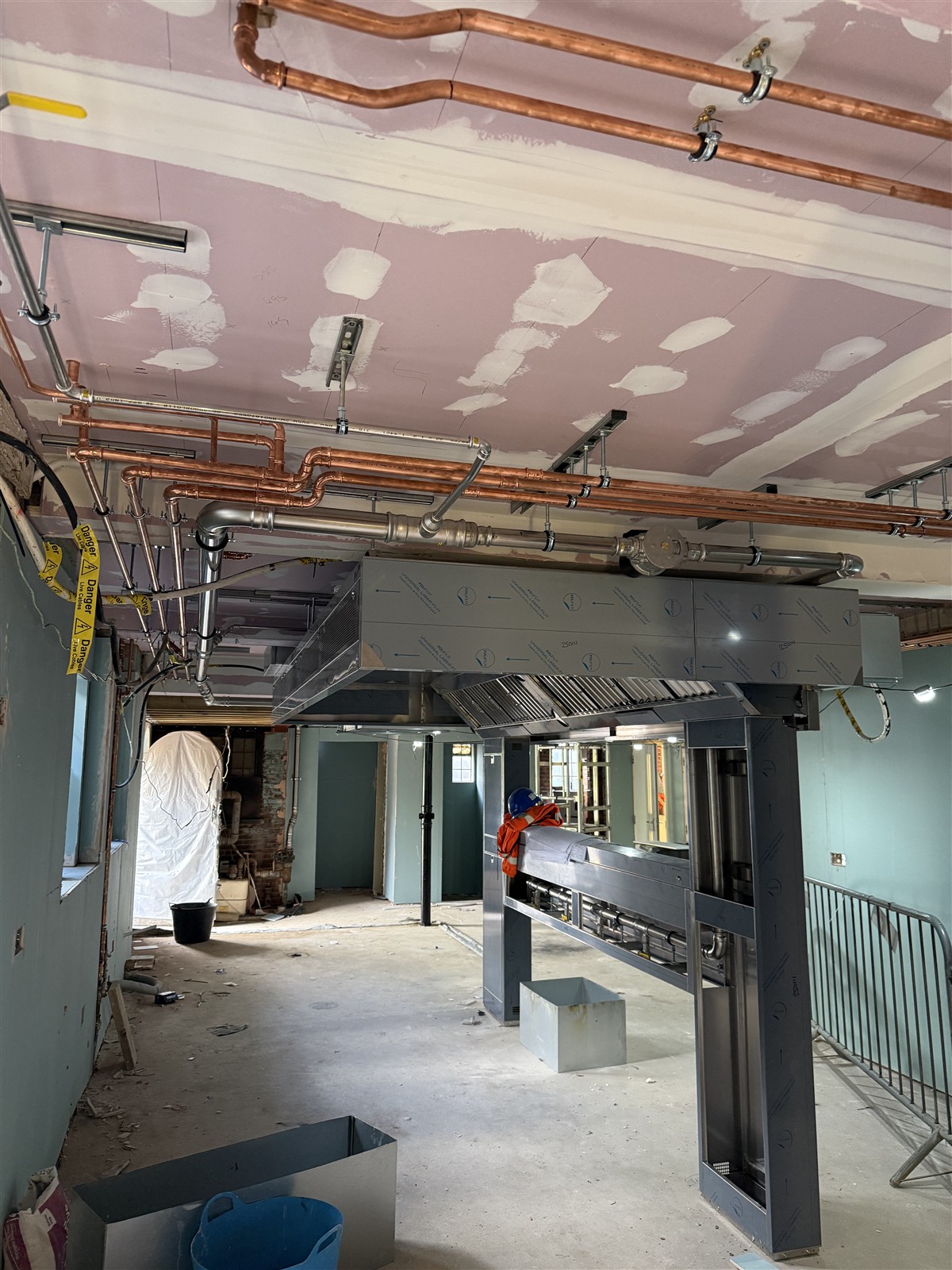

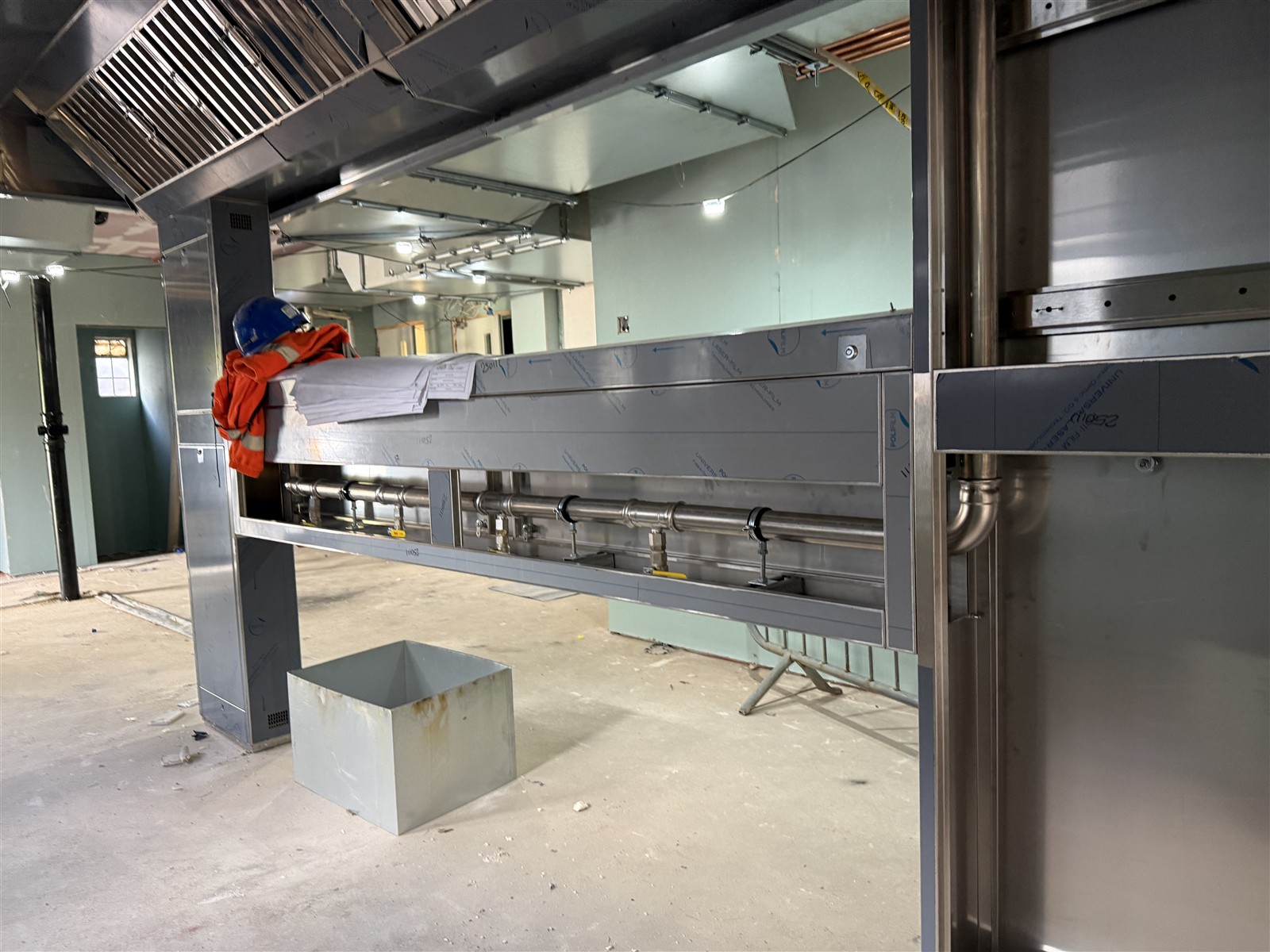

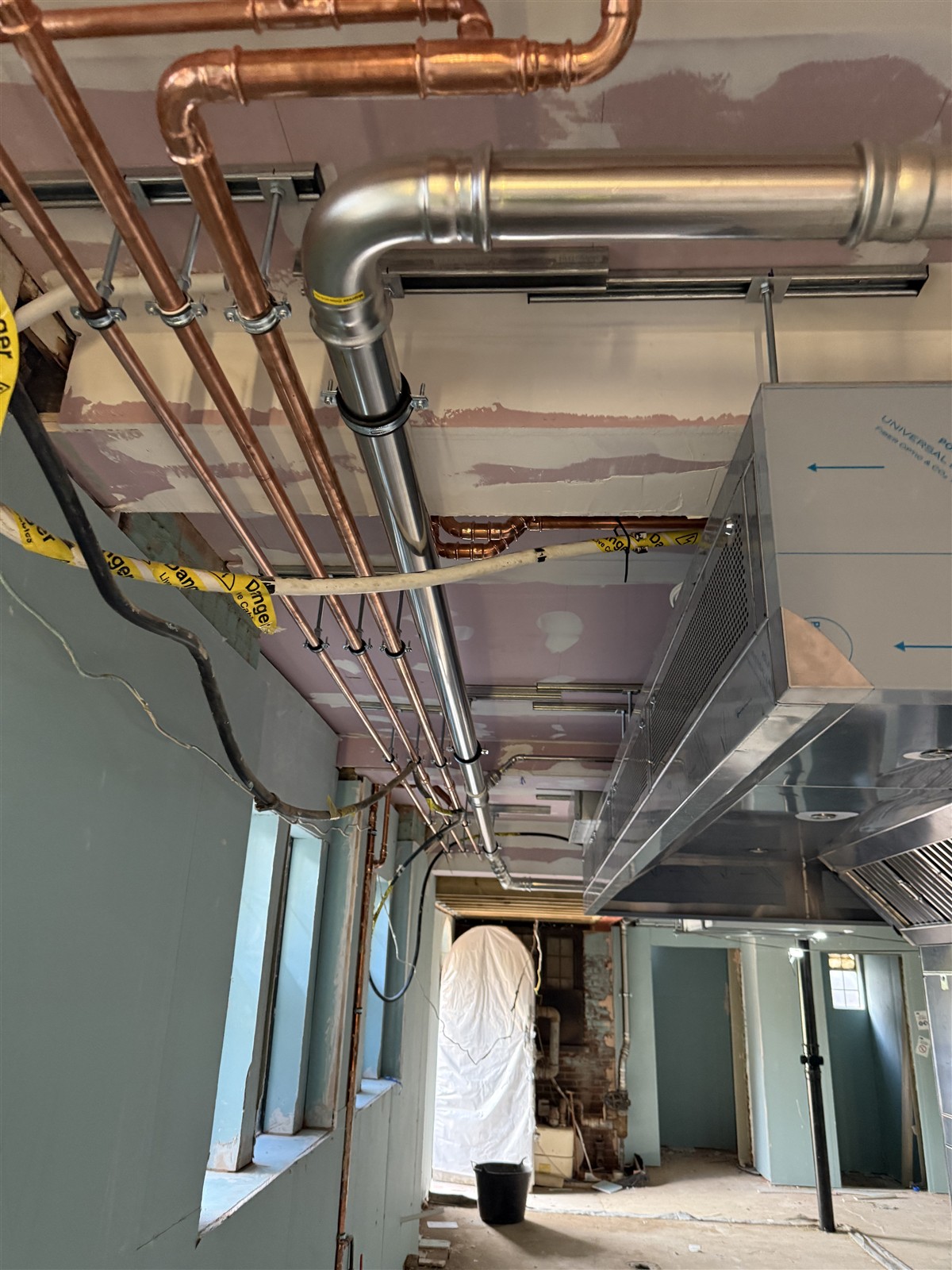

Overhead copper pipework across the unfinished kitchen ceiling at Beaconsfield Golf ClubCopper and metal service runs above the kitchen during fit-outCommercial kitchen service structure and connected pipework during installation
Installed component

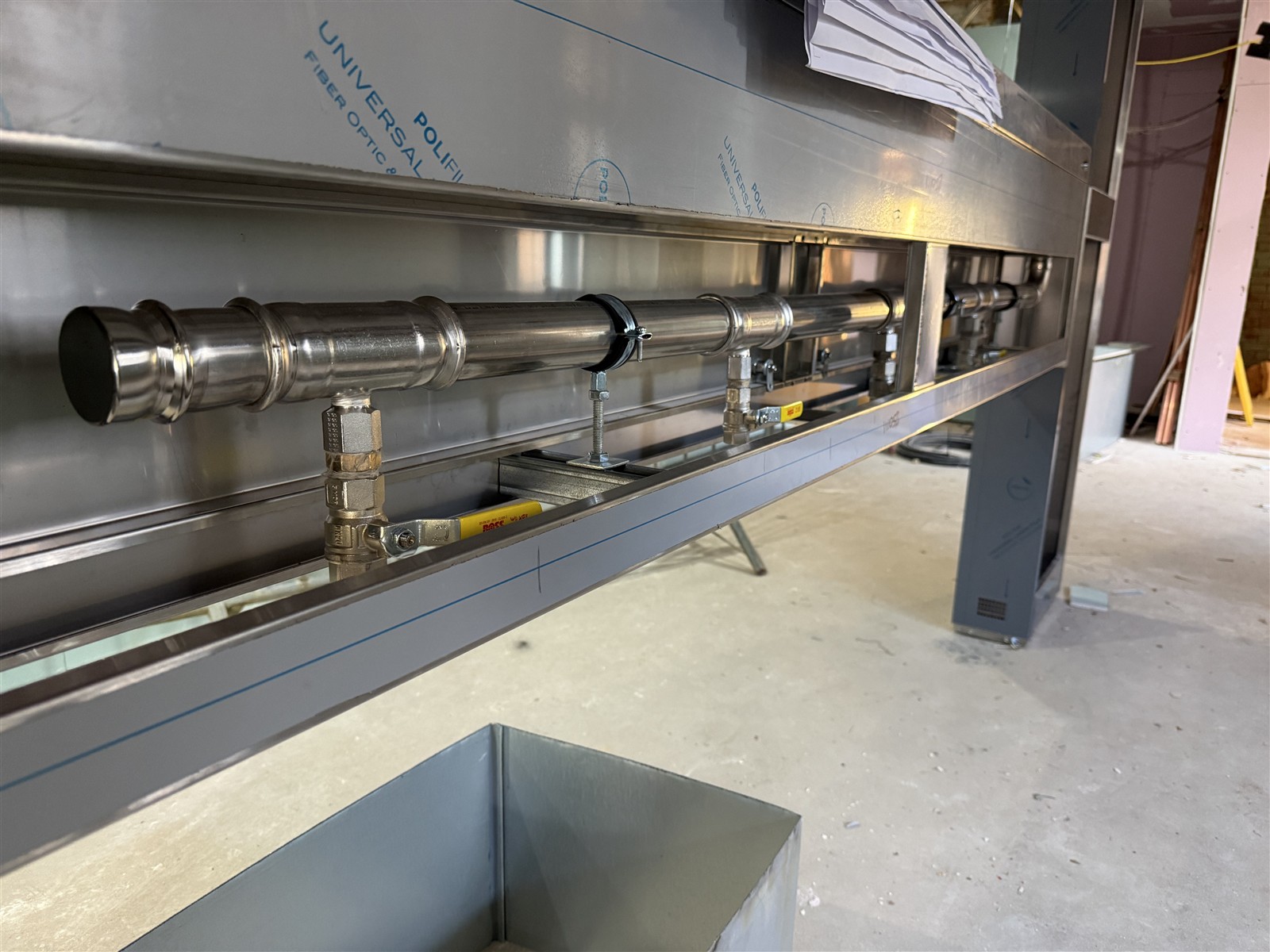

Gas manifold with yellow-handled isolation valves beneath the kitchen structure at Beaconsfield Golf Club
Commercial boiler replacement
LTI Metaltech, Milton Park, Abingdon
Two 64kW Vaillant boilers serving the existing heating system
The existing heating system at LTI Metaltech, Milton Park, Abingdon, used two floor-standing commercial boilers.
The replacement
We replaced the old boiler system with two Vaillant ecoTEC Plus 64kW commercial boilers on a cascade frame, with a shared flue through the existing external-wall opening.
The new installation included a plate heat exchanger to separate the boilers from the existing heating circuit, individual magnetic filters and new connecting pipework. The system connects to the existing heating pipework and controls, retaining the building’s existing zones.
Project photographs
Before

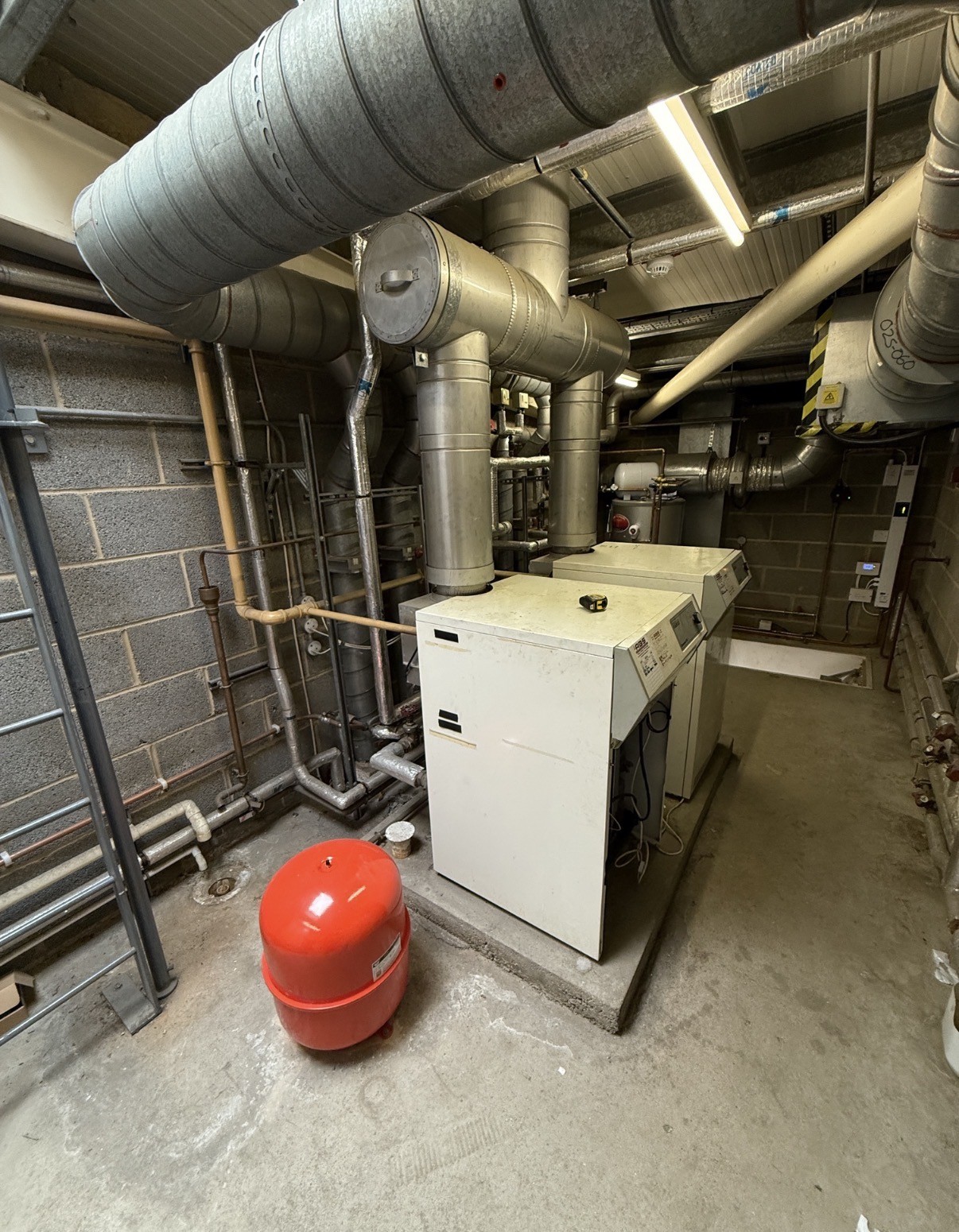

Original floor-standing boilers in the LTI Metaltech plant room
In progress

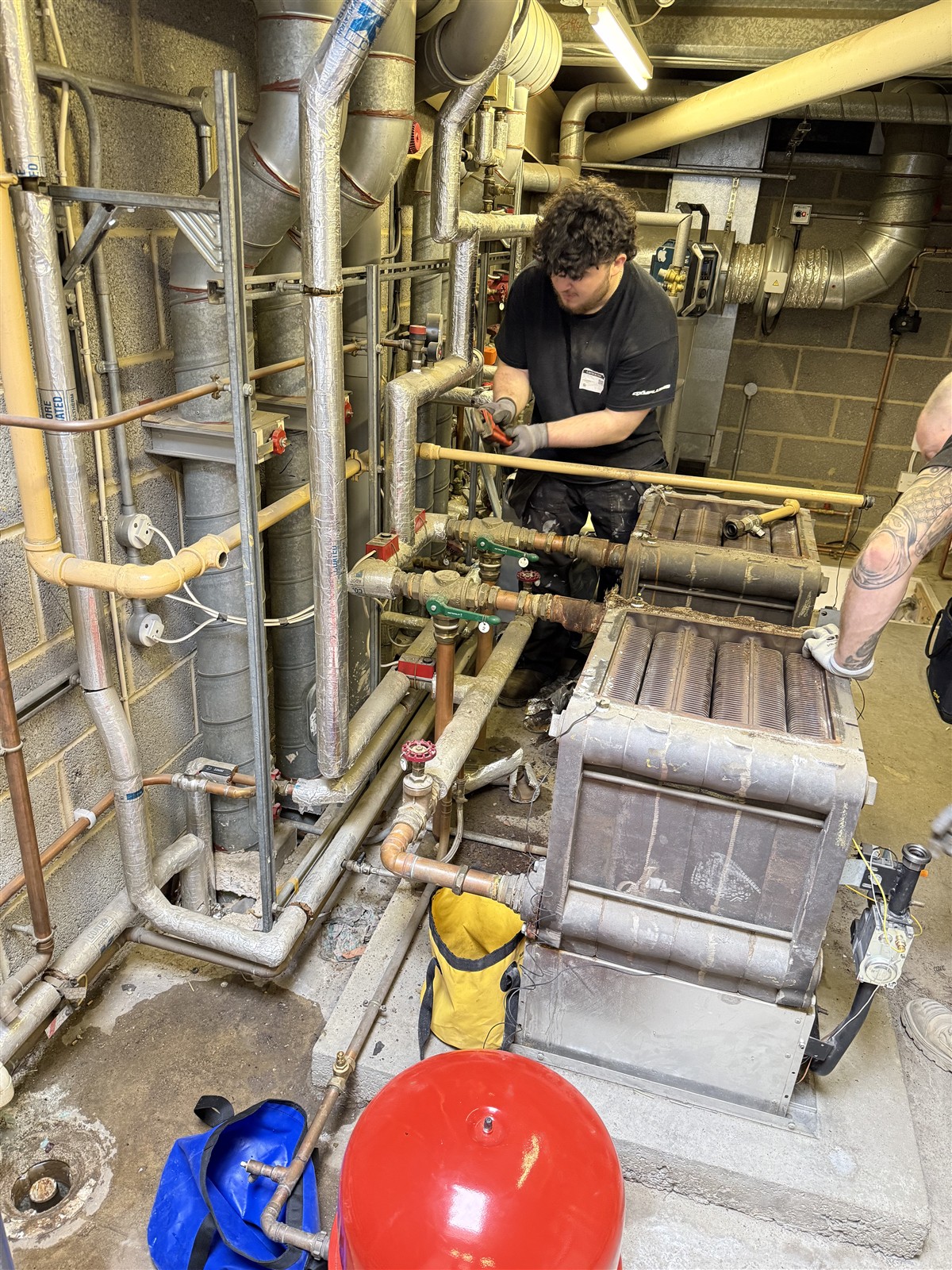

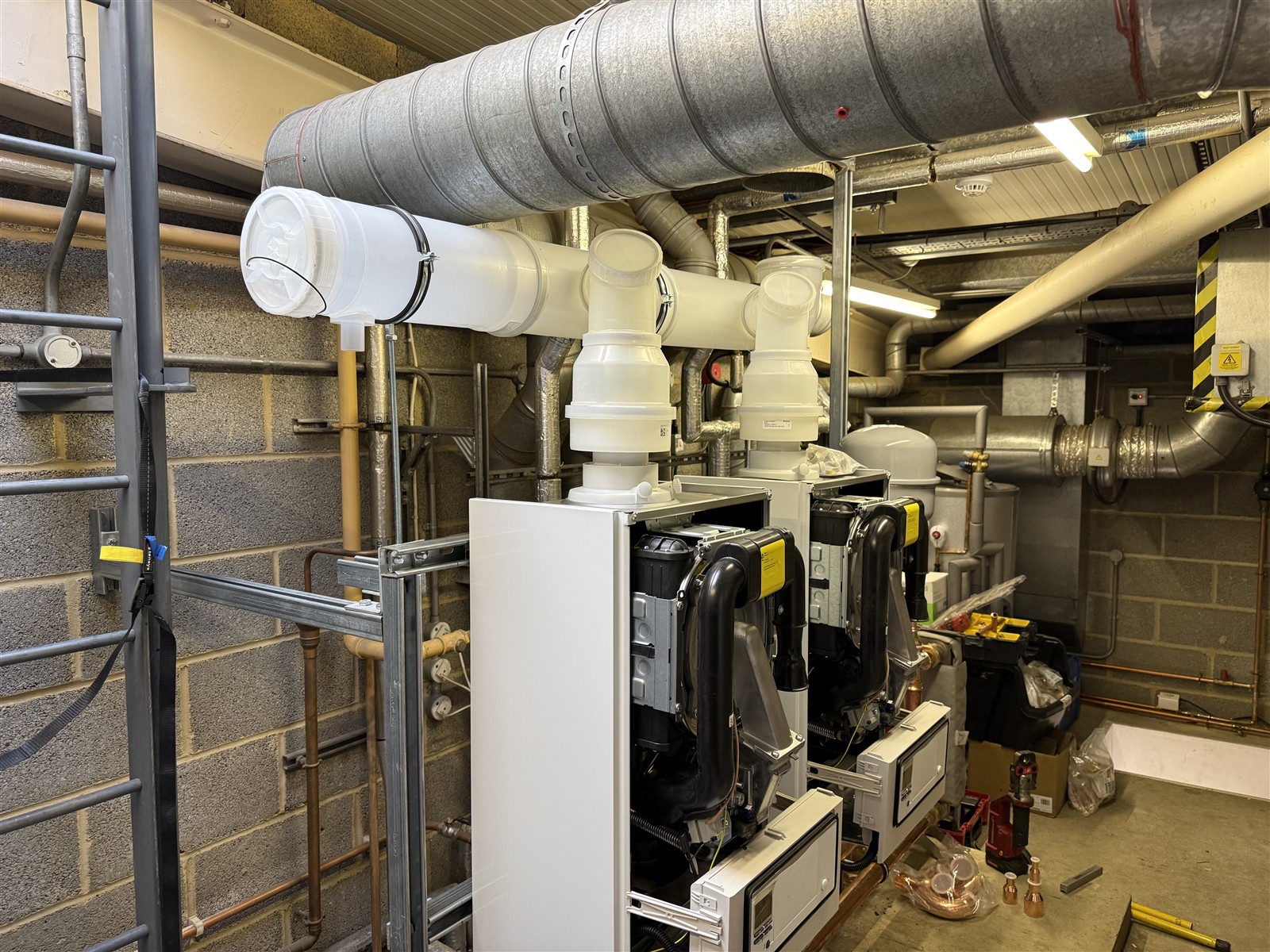

Engineer altering existing plant-room pipework at LTI MetaltechTwin Vaillant boilers on their cascade frame with front casings removed during installation
Testing

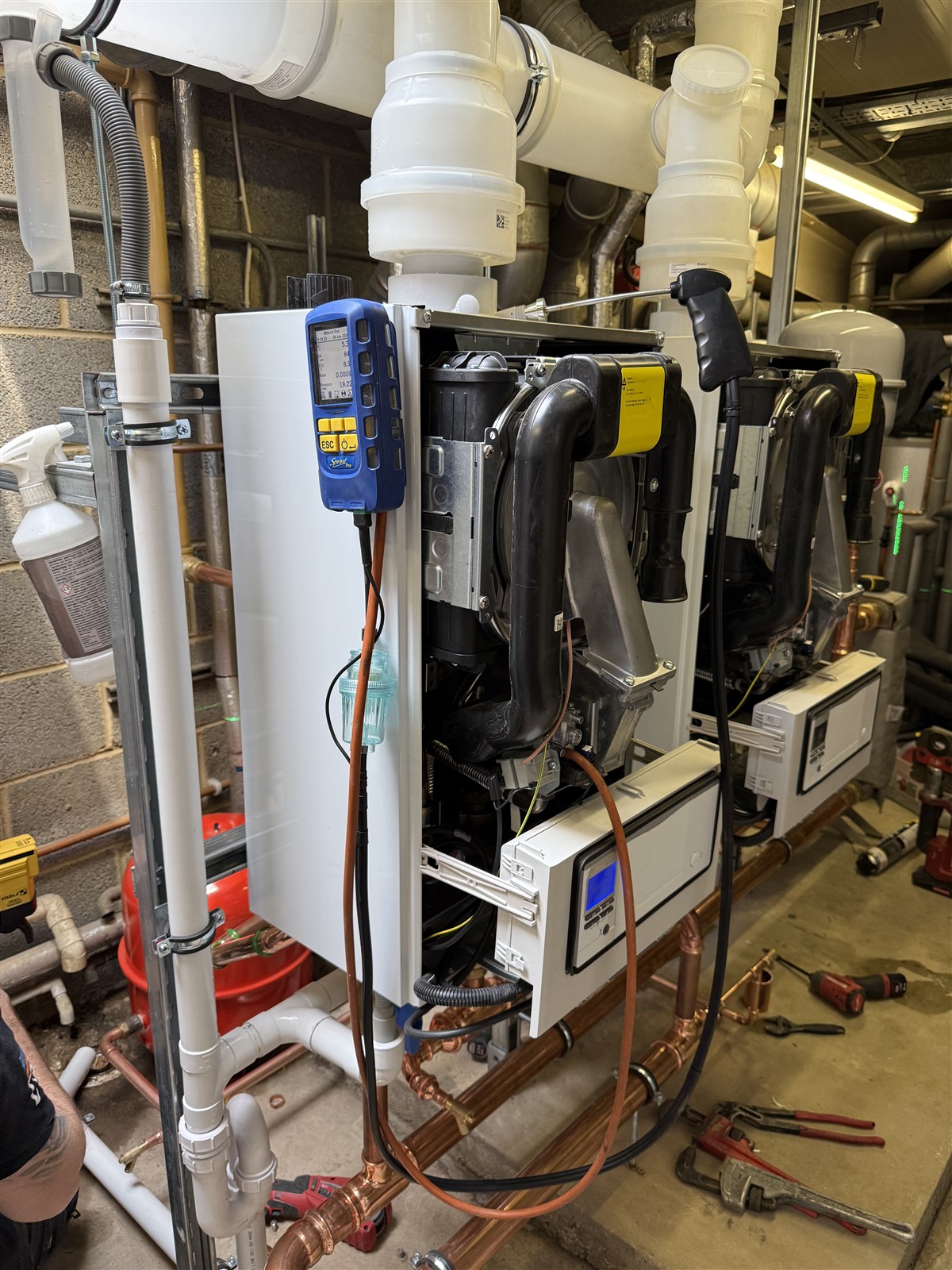

Combustion analyser connected beside the open Vaillant boilers at LTI Metaltech
Completed views

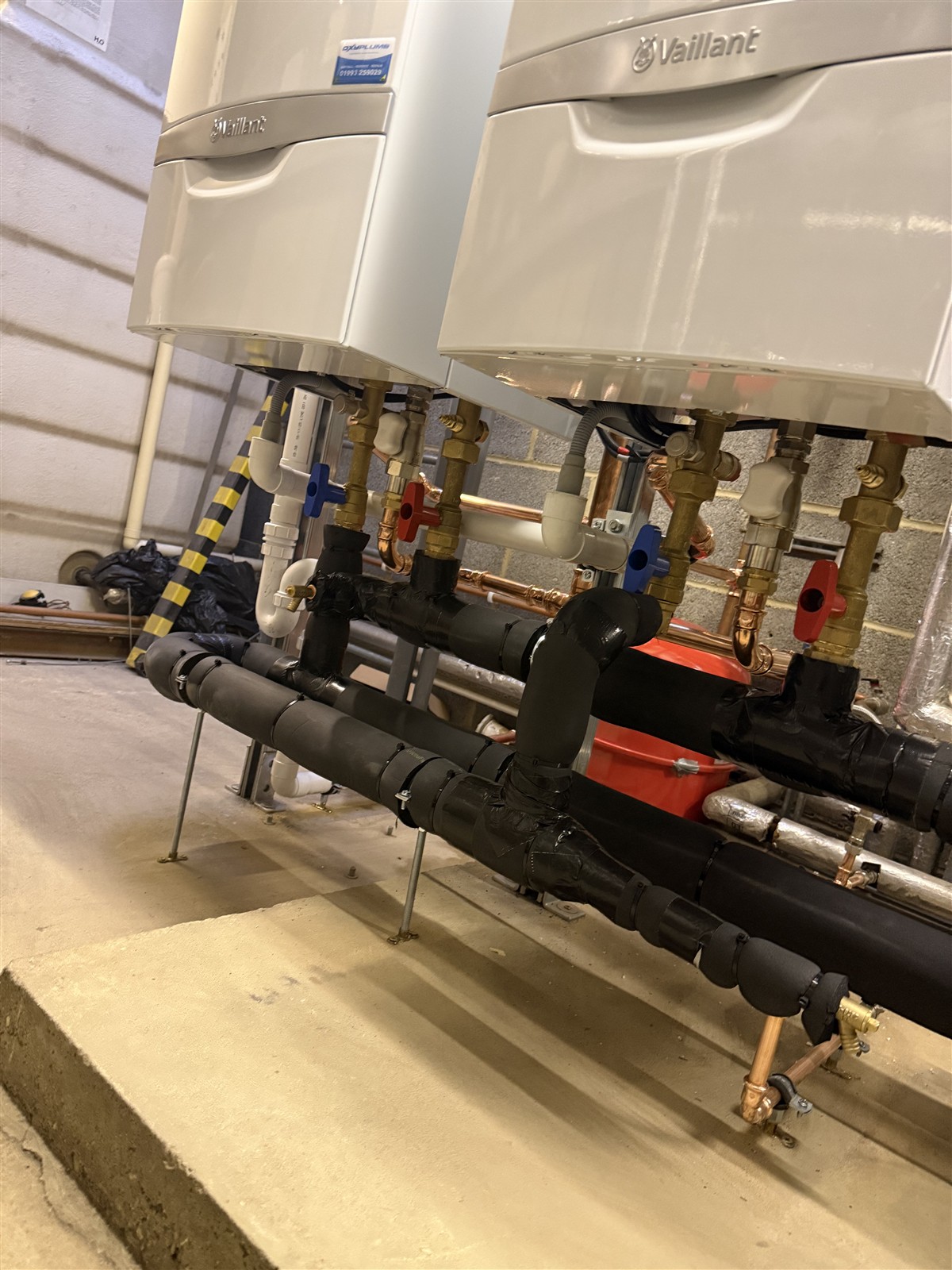

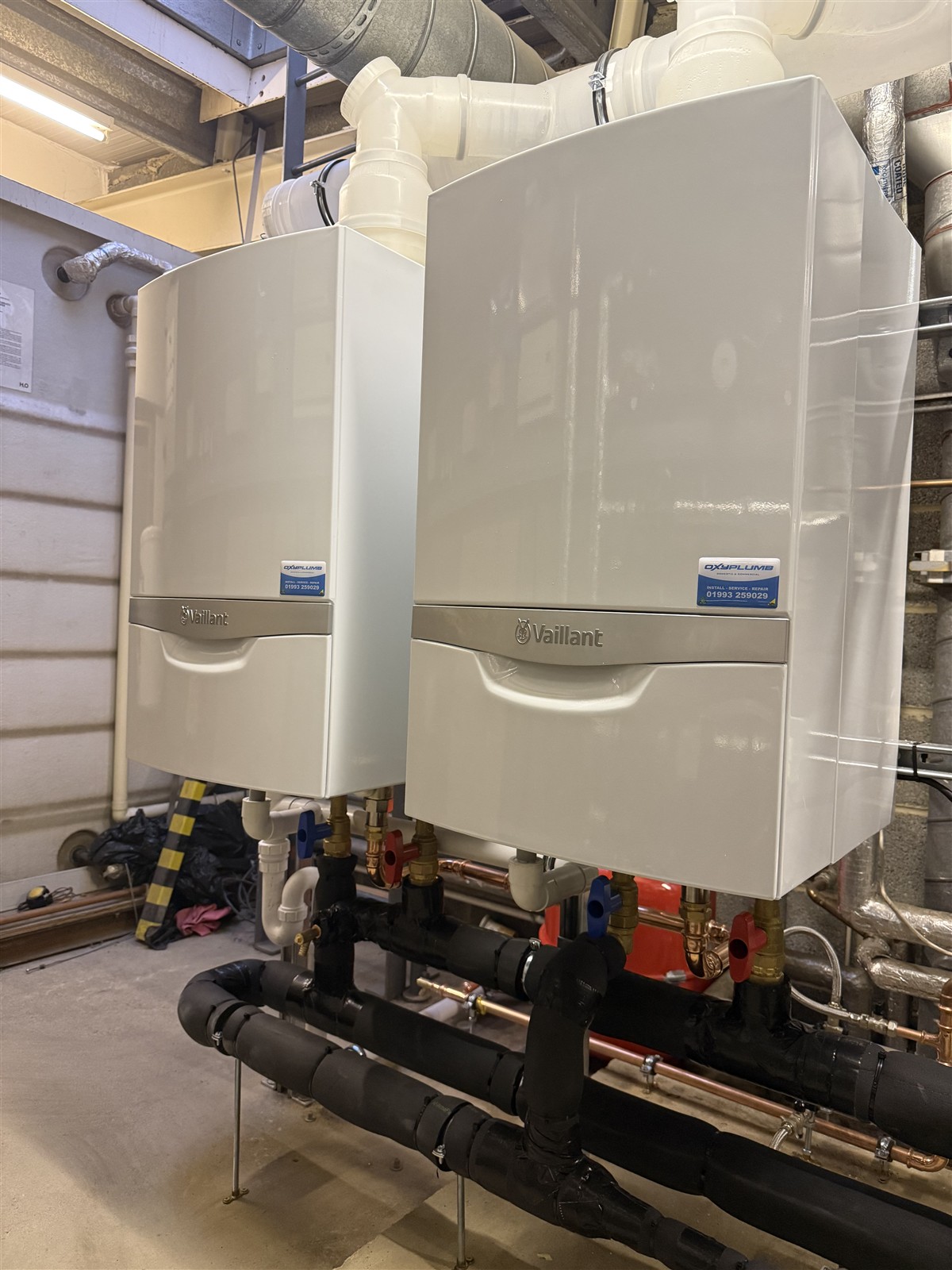

Wide view of twin Vaillant boilers, cascade flue and insulated manifold at LTI MetaltechCompleted twin Vaillant boiler installation with insulated flow and return pipeworkClose-up of boiler valves, circulation pump and insulated manifold at LTI Metaltech
A split water heater was replaced like-for-like with a Lochinvar LGC285-560, converted for LPG. Oxyplumb completed the work in one day during the school holidays, ahead of the new term.
Existing pipework and the flue were reused following an integrity test. A faulty hot-water return pump was also identified and replaced, avoiding a long cold-water draw before hot water reached the outlets.
Project photographs
During replacement

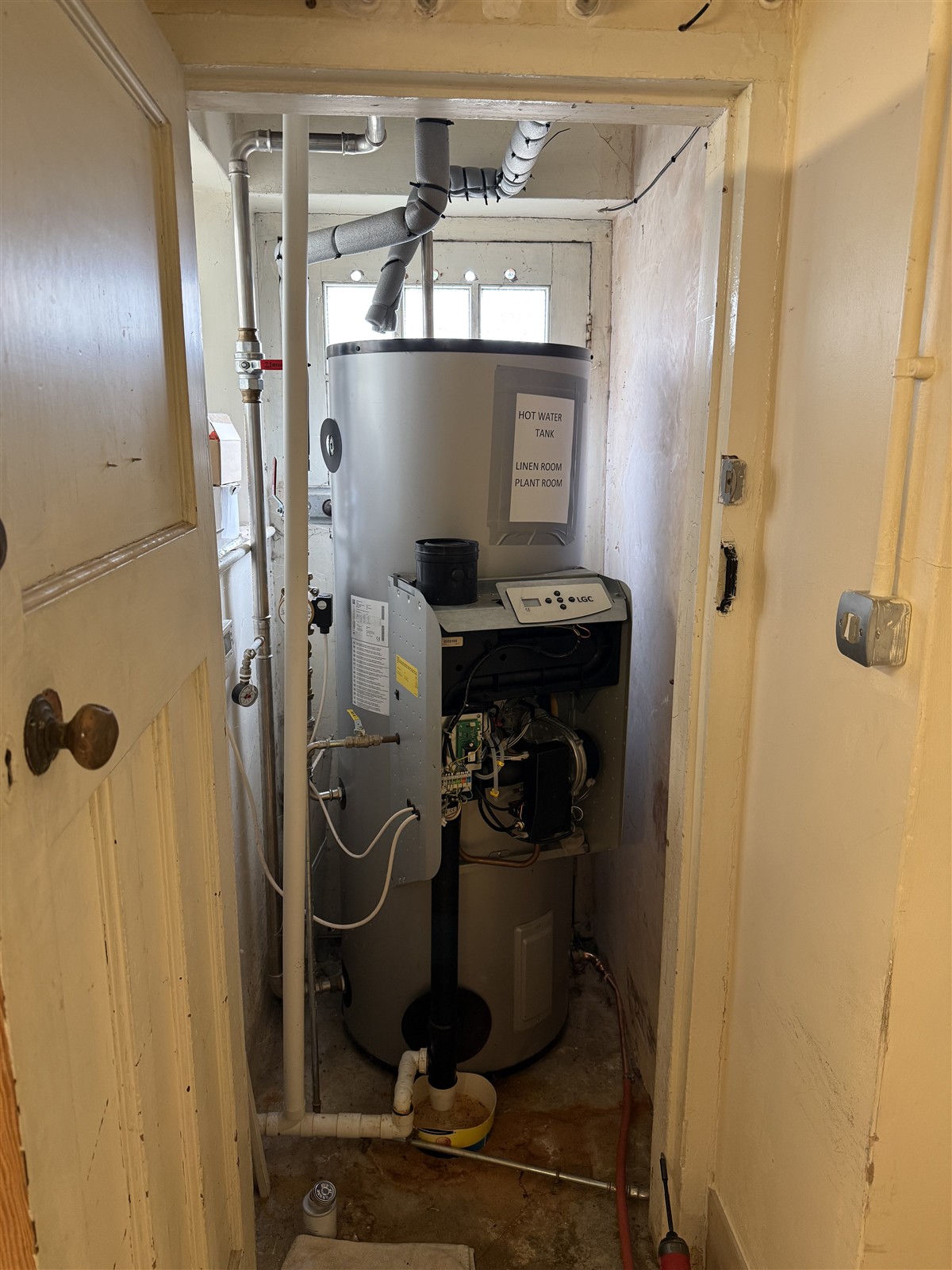

Lochinvar water heater with front casing removed and flue disconnected during replacement at Burford Boarding School
Completed installation
Completed Lochinvar LGC water heater with red front casing and connected flue at Burford Boarding School
Completed detail

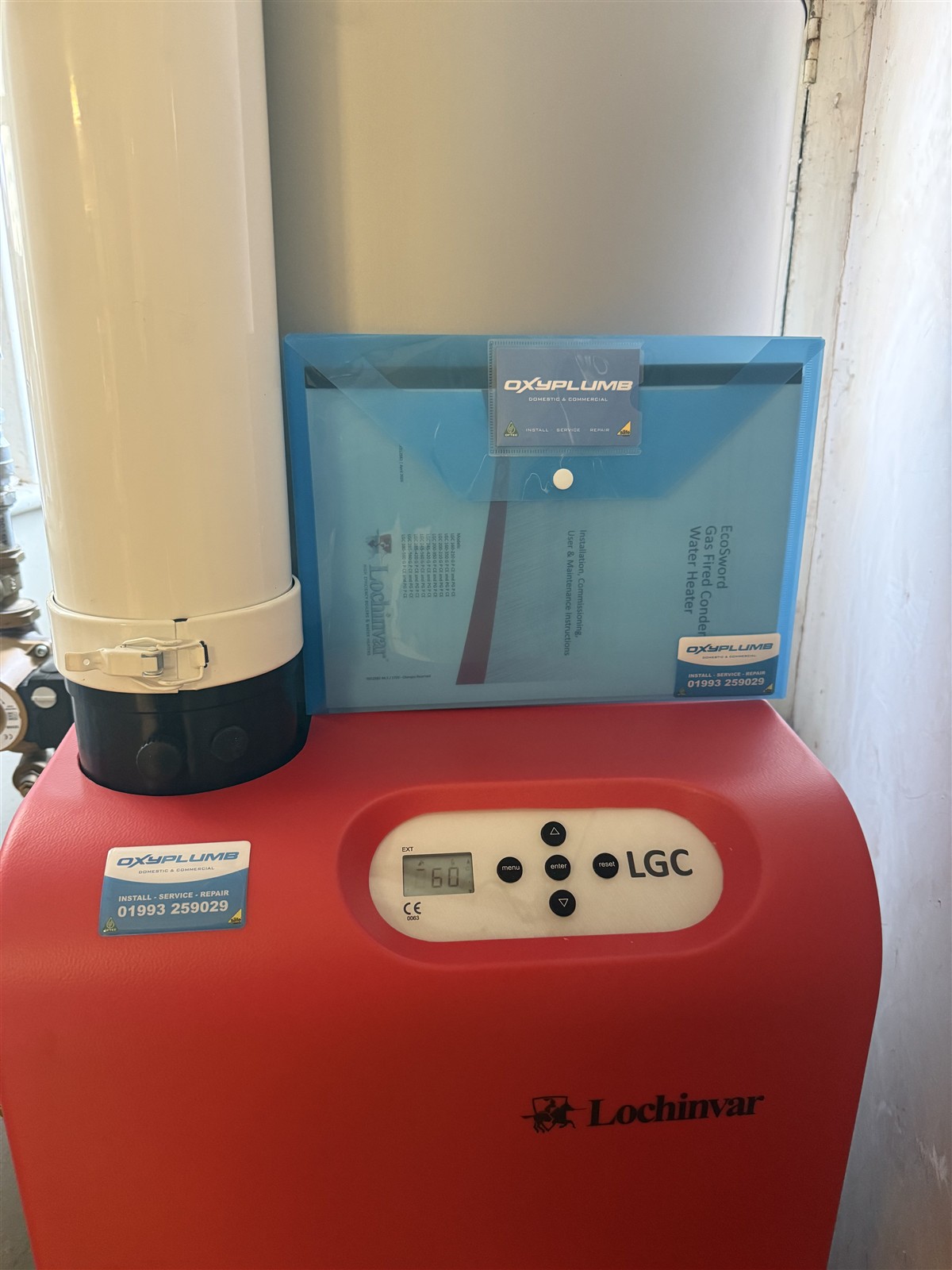

Close-up of the installed Lochinvar LGC water heater controls and Oxyplumb document wallet at Burford Boarding School
