School heating and hot-water plant replacement

Our work

The existing plant

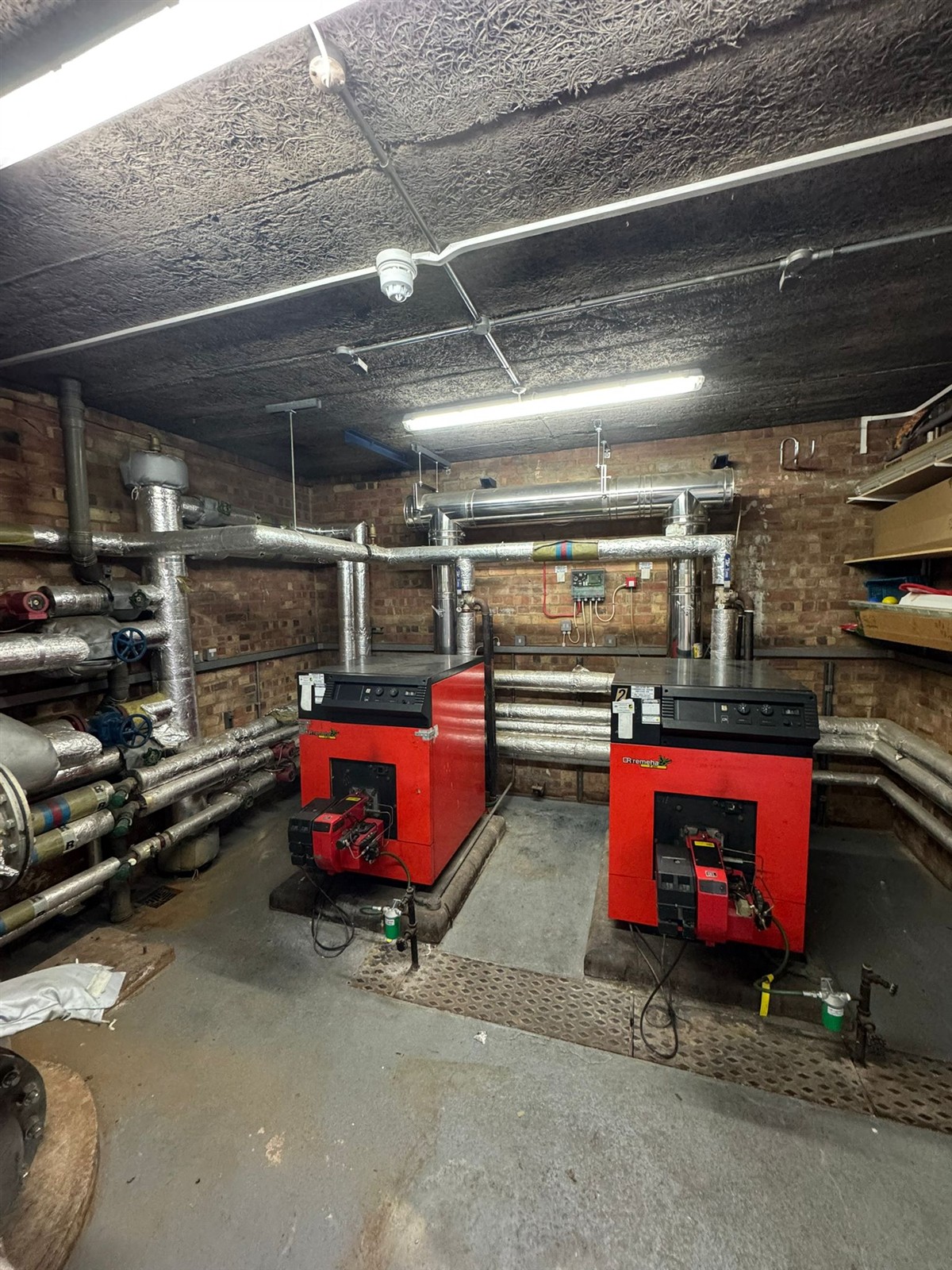

The school’s plant room housed Broag Remeha L200 boilers dating from 1998.

The replacement

The replacement specification called for two Firebird Envirogreen commercial oil boilers, a 200kW plate heat exchanger to separate the boiler circuit from the existing heating system, and a 300-litre indirect hot-water cylinder.

Designed around the school

The scope also included variable-speed circulation pumps, insulated and labelled pipework, and integration with the school’s existing building-management controls. The photographs show the old plant, strip-out, replacement boilers and cylinder, pumps and insulated services.

Work on site

Before

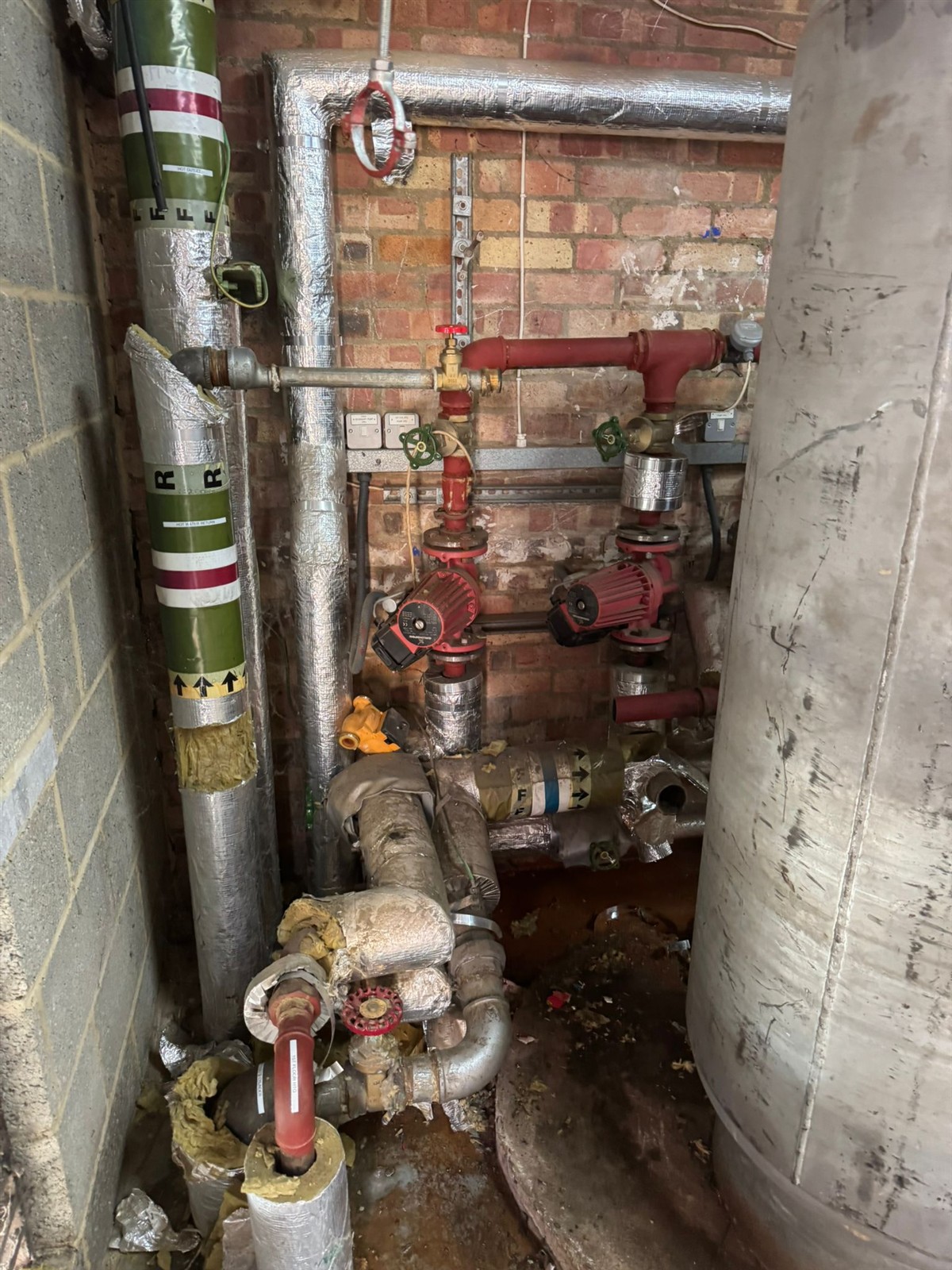

Earlier pump and valve arrangement beside the school hot-water cylinder

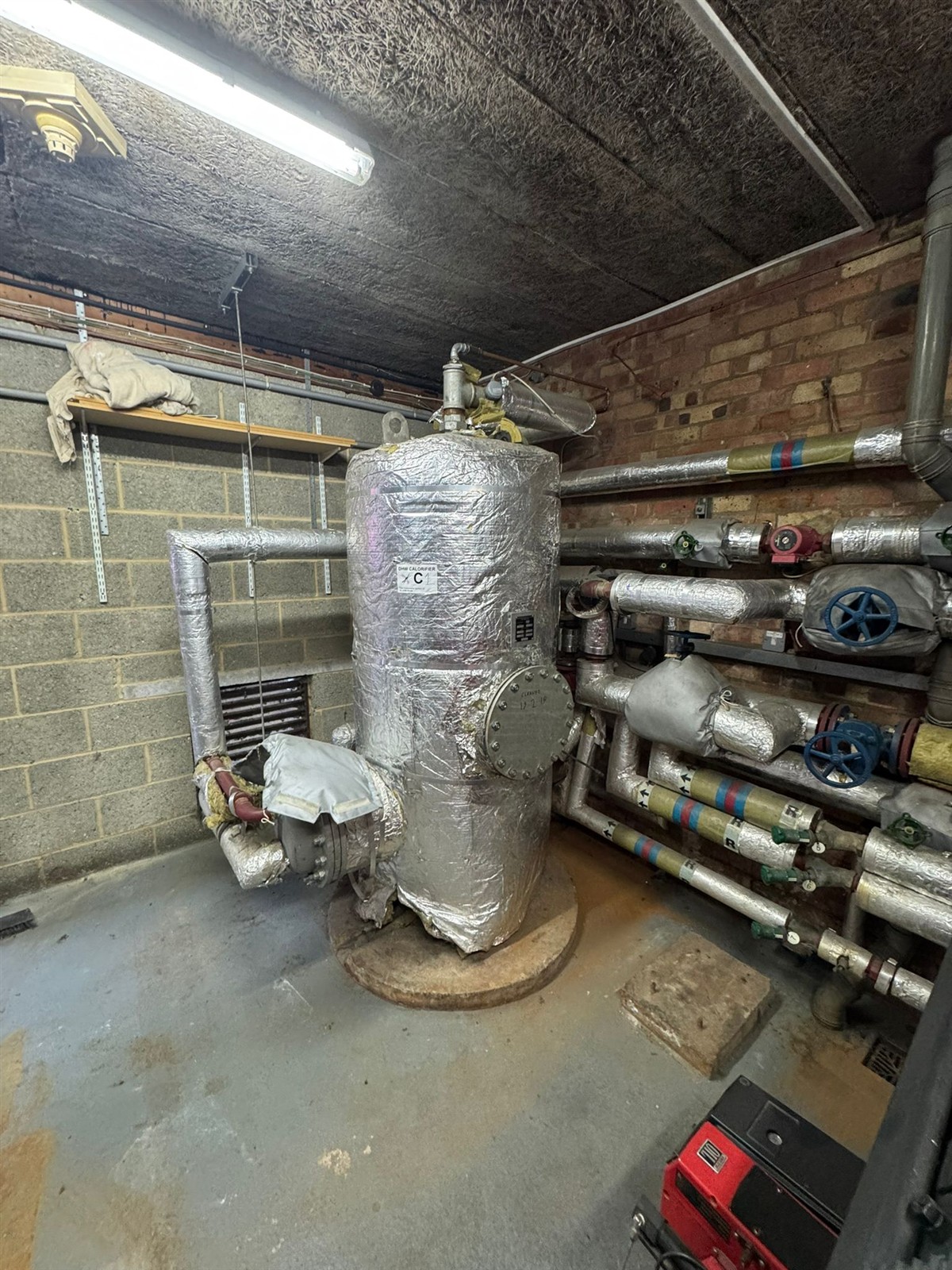

Previous foil-covered hot-water cylinder and existing services before the Mulberry Bush School refurbishment

In progress

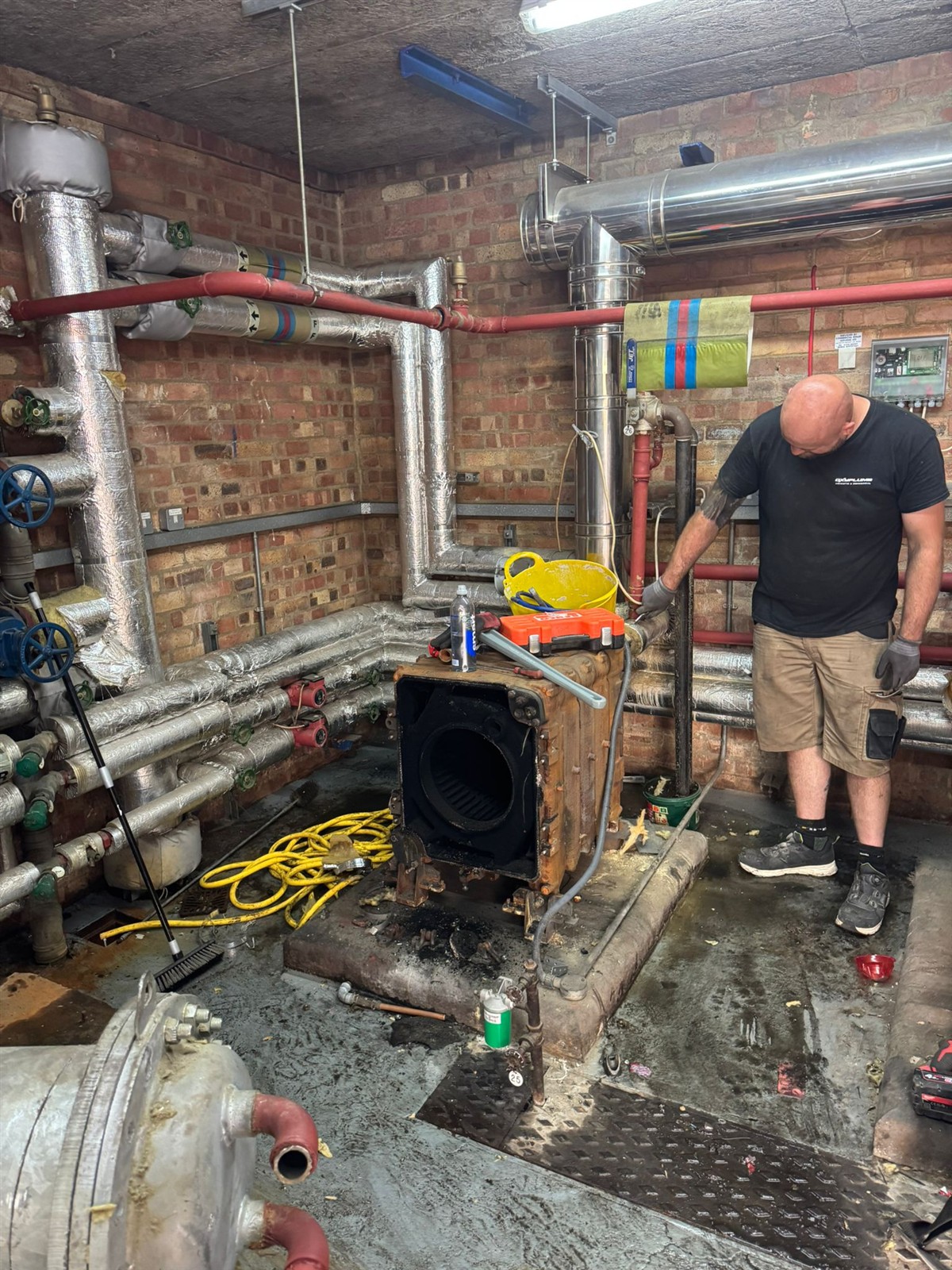

Engineer and removed equipment during the Mulberry Bush School plant-room strip-out

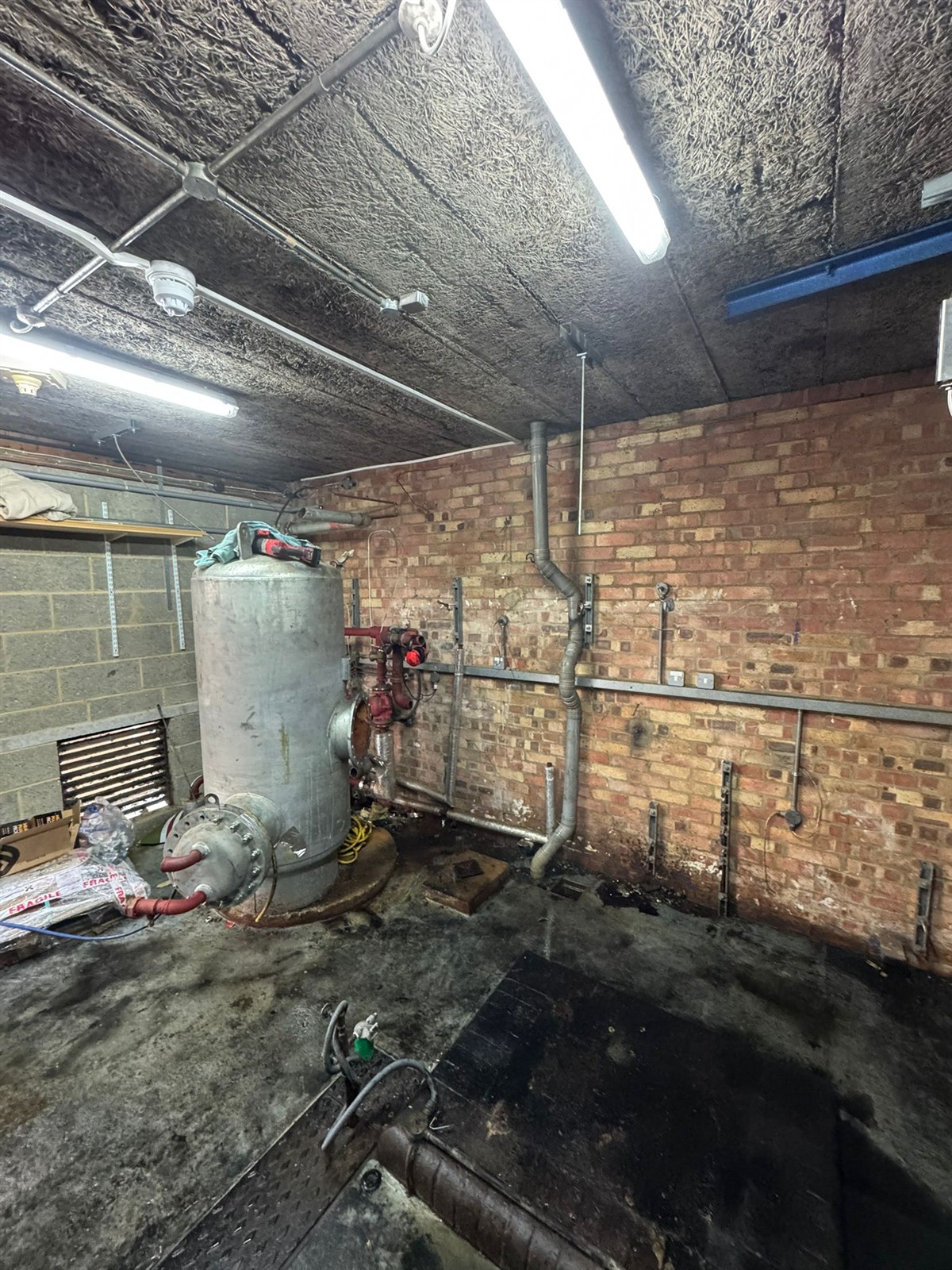

Mulberry Bush School plant room during strip-out, with the previous cylinder and cleared boiler floor area

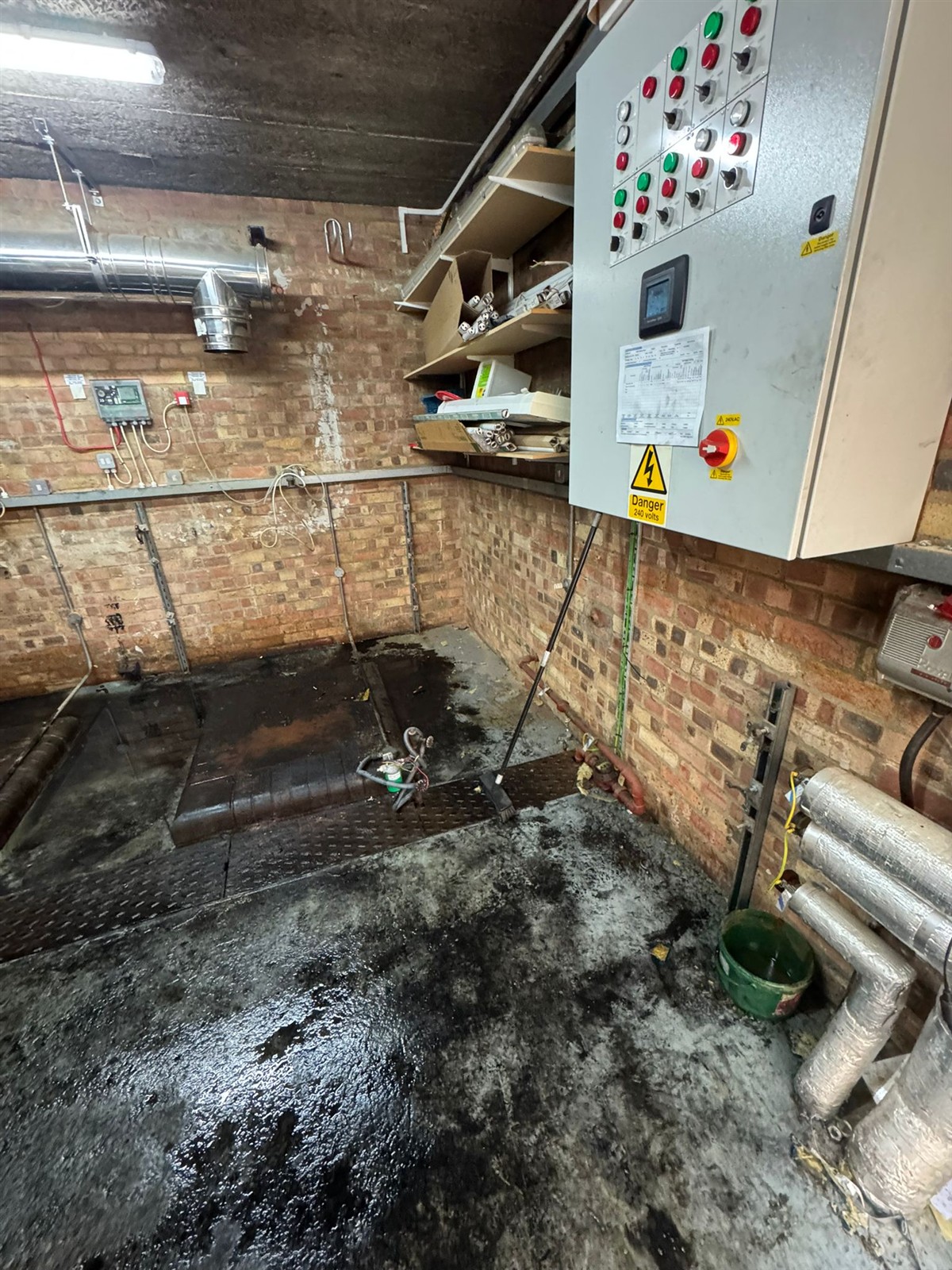

Cleared plant-room floor and wall-mounted control panel during refurbishment

Replacement green boilers with new copper connections before pipe insulation at Mulberry Bush School

Replacement hot-water cylinder with newly connected copper pipework before insulation at Mulberry Bush School

Installed views

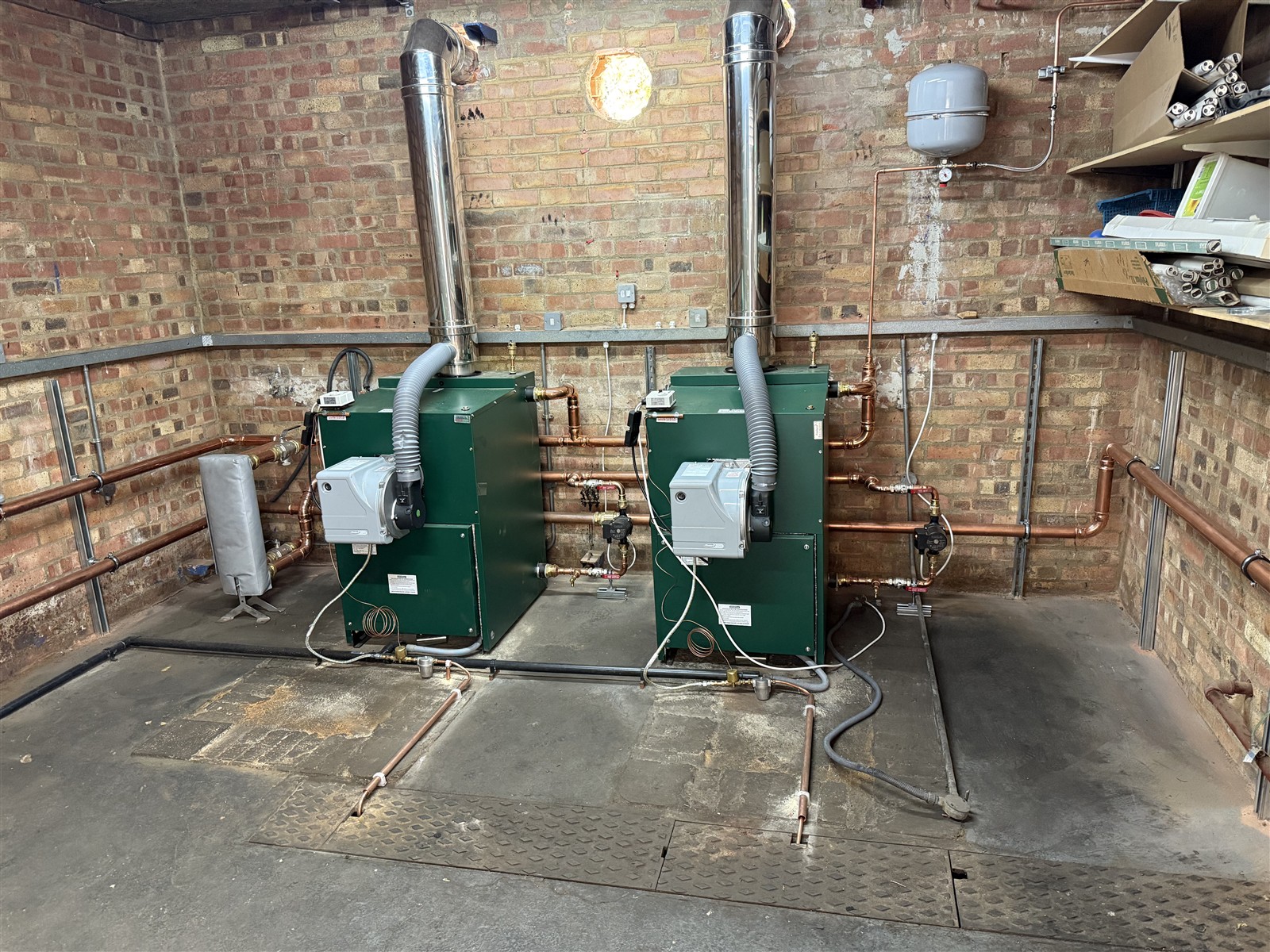

Pair of green replacement boilers with individual flues and insulated connections at Mulberry Bush School

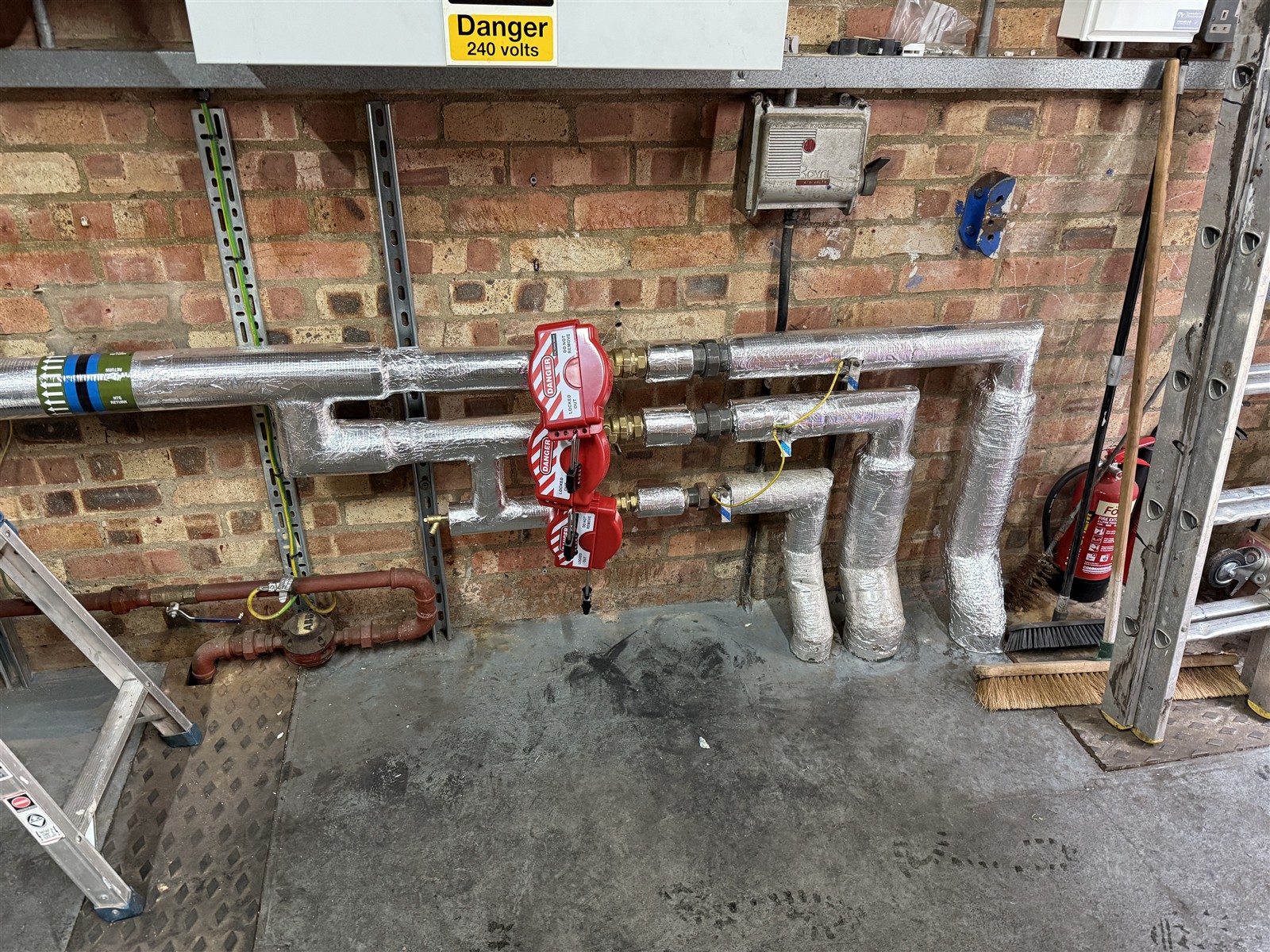

Insulated heating distribution pipework and red isolation valves below the Mulberry Bush School control panel

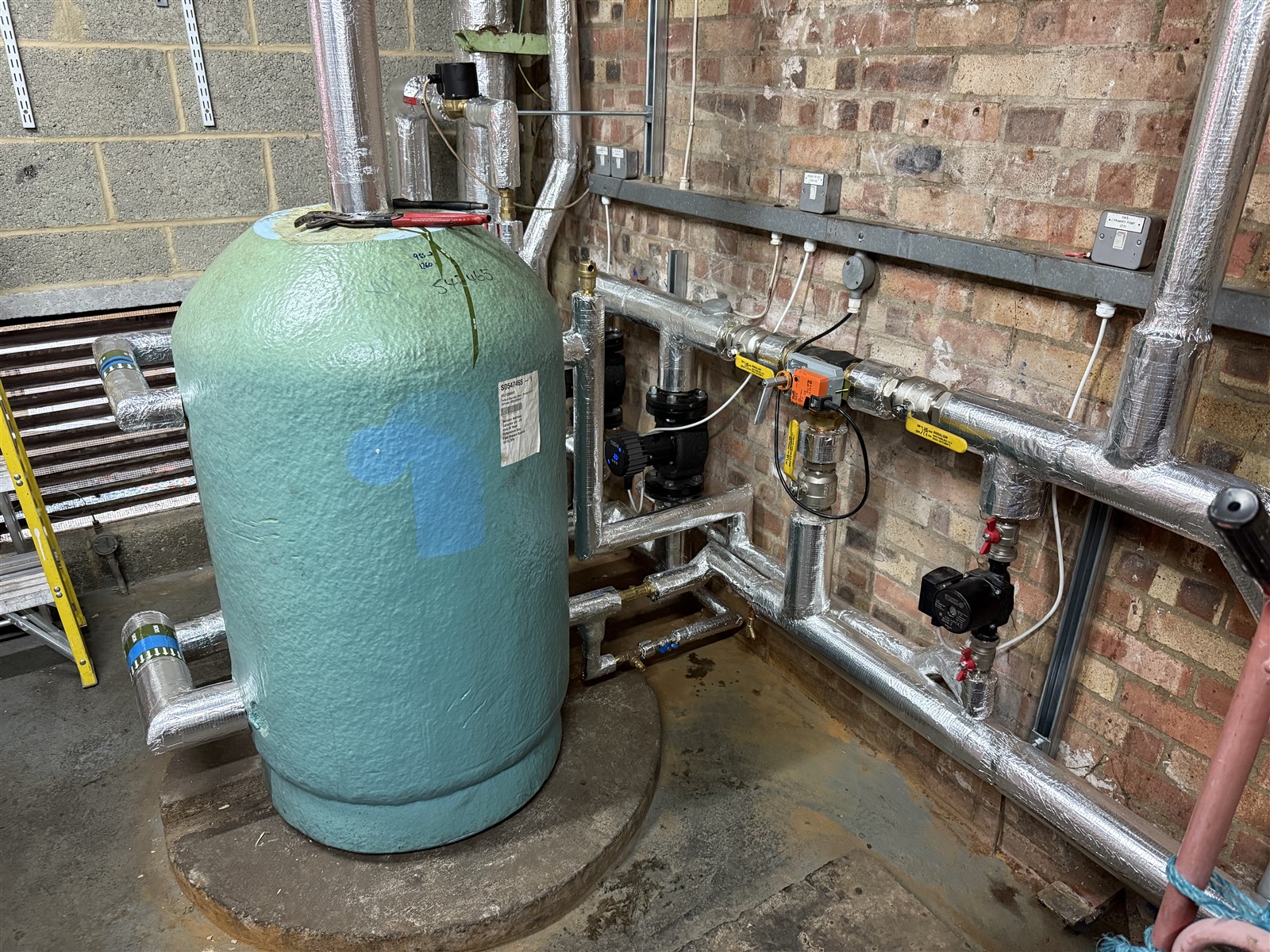

Green hot-water cylinder with insulated pipework, circulation pumps and control valves at Mulberry Bush School

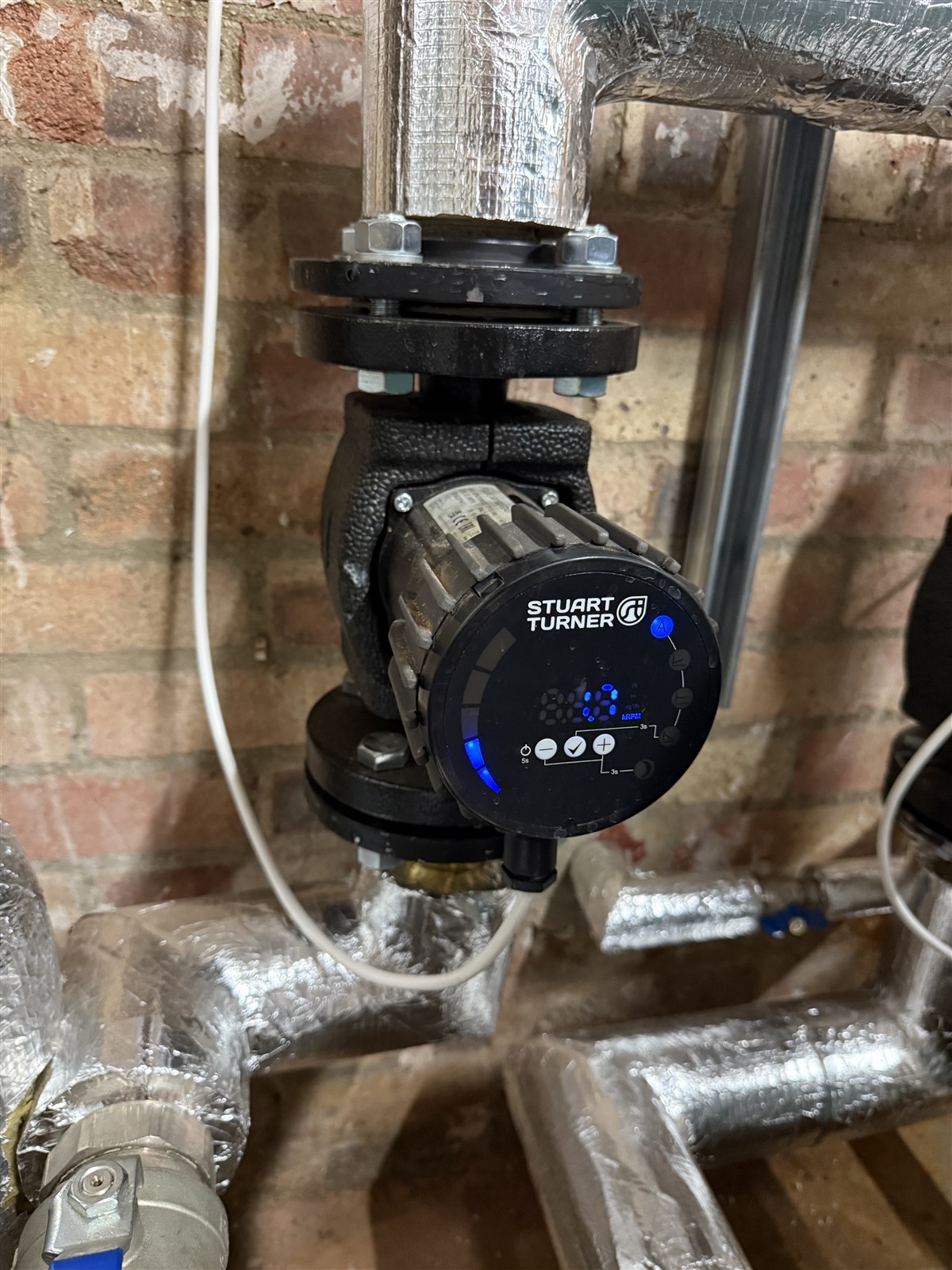

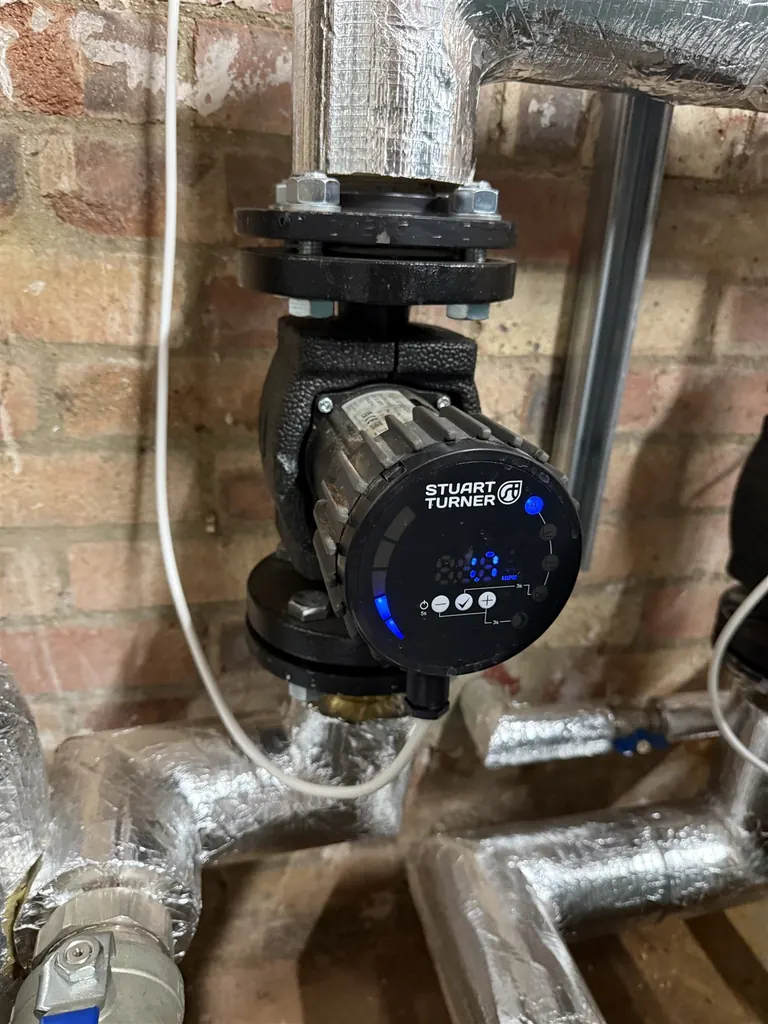

Circulation pumps and insulated plant-room pipework at Mulberry Bush School

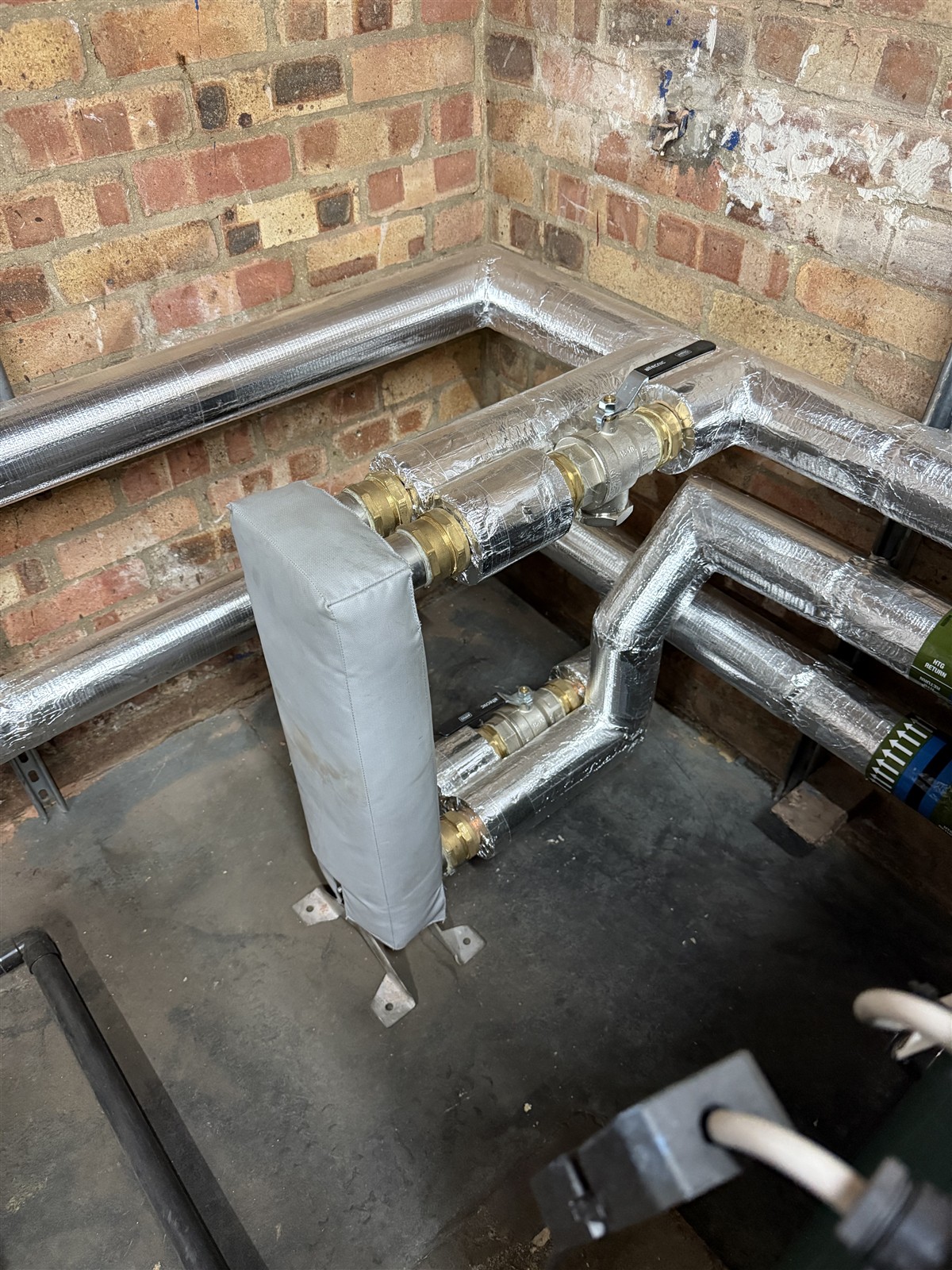

Insulated pipework and low-level header in the school plant room
